JZX100-CEPVZ (1996)
Toyota Cresta
ILLUST NO. 1 OF 3(9609-9708)
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 3(9609- )
ｸﾛﾂｸ & ｽﾋﾟ-ﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-22480 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83910-26020 |
GX100,JZX10#,LX100 |
1 | ||

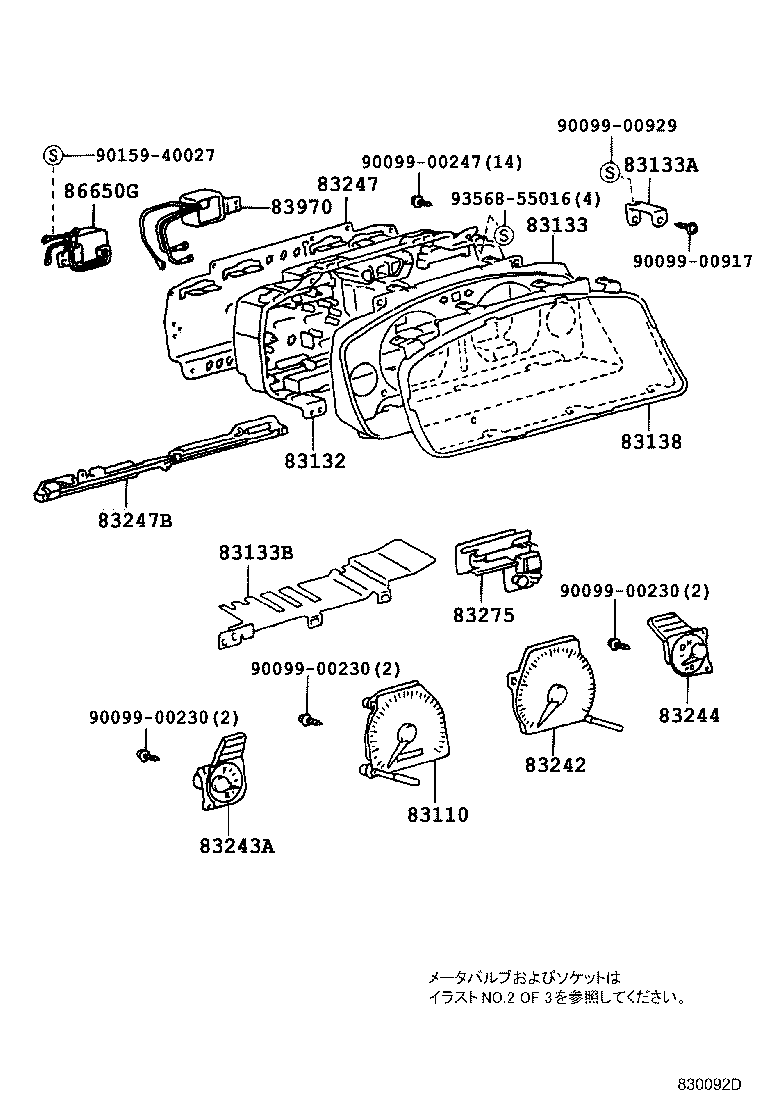

ILLUST NO. 1 OF 3(9609-9708)
ｱﾅﾛｸﾞﾒｰﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..EXC,ROU,ROUG,ROUS,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22070 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..EXC,ROU,SLT |
1 | ||
| 83881-22120 |
JZX100..ROUG |
1 | ||
| 83881-22110 |
JZX100..ROU,ROUS |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT |
1 | ||
| 83864-22170 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100..ATM..(EXC,ROU,ROUG,ROUS,SC,SLT) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| Common parts | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9708-9808)
ｱﾅﾛｸﾞﾒｰﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..EXC,ROU,ROUG,ROUS,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22070 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..EXC,ROU,SLT |
1 | ||
| 83881-22120 |
JZX100..ROUG |
1 | ||
| 83881-22110 |
JZX100..ROU,ROUS |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT |
1 | ||
| 83864-22170 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100..ATM..(EXC,ROU,ROUG,ROUS,SC,SLT) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9808- )
ｱﾅﾛｸﾞﾒｰﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..EXC,ROU,ROUG,ROUS,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22070 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..EXC,ROU,SLT |
1 | ||
| 83881-22120 |
JZX100..ROUG |
1 | ||
| 83881-22110 |
JZX100..ROU,ROUS |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT |
1 | ||
| 83864-22170 |
GX100,JZX100..ROU,ROUG,ROUS |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100..ATM..(EXC,ROU,ROUG,ROUS,SC,SLT) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| Common parts | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00284 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9708-9808)
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9808- )
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22130 |
JZX100..ROUG |
1 | ||
| 83841-22070 |
GX100,JZX100..ROU |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22050 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22200 |
GX100,JZX100..ROU,ROUG |
1 | ||
| 83861-22070 |
JZX100..ROU,ROUG |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||

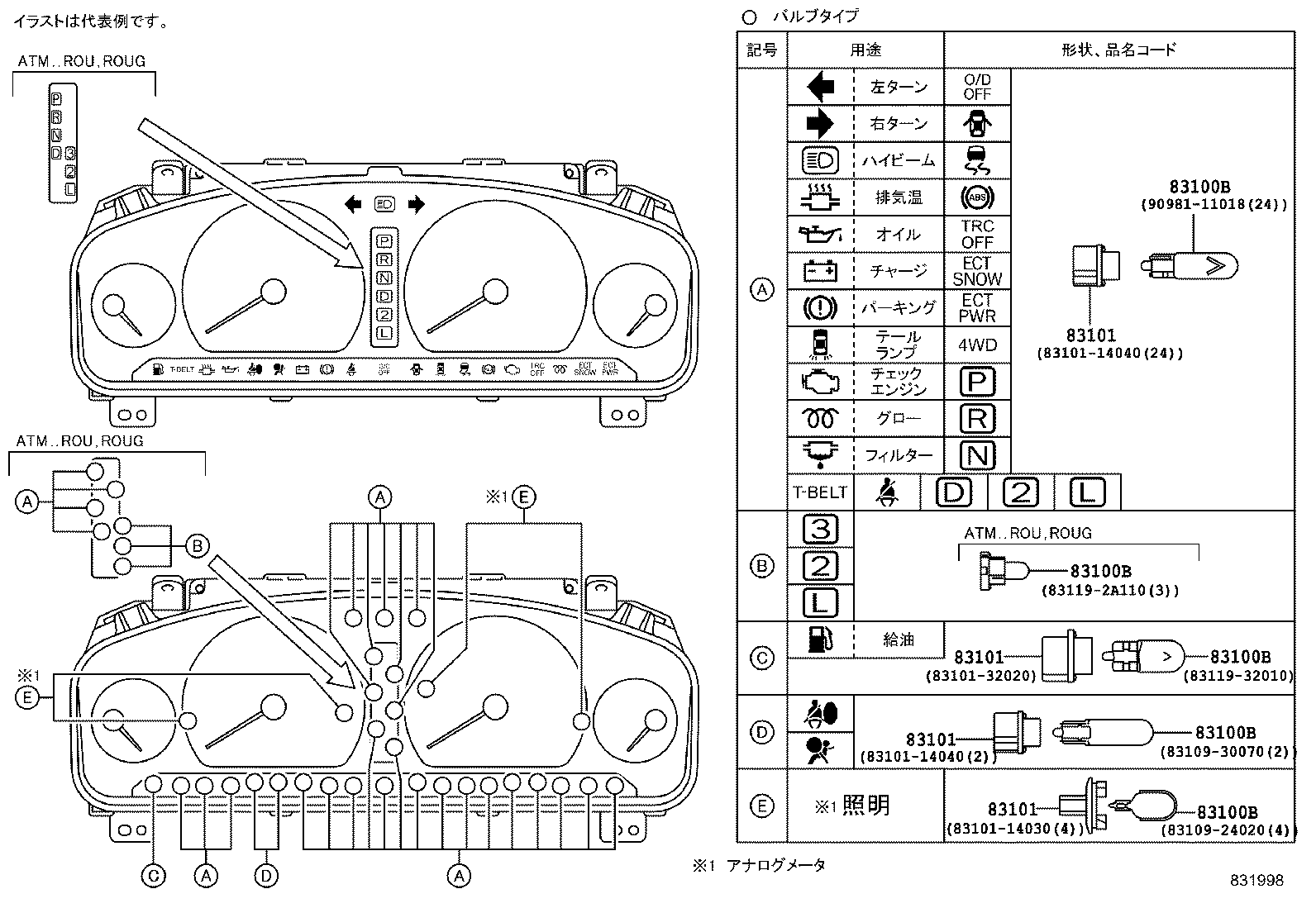

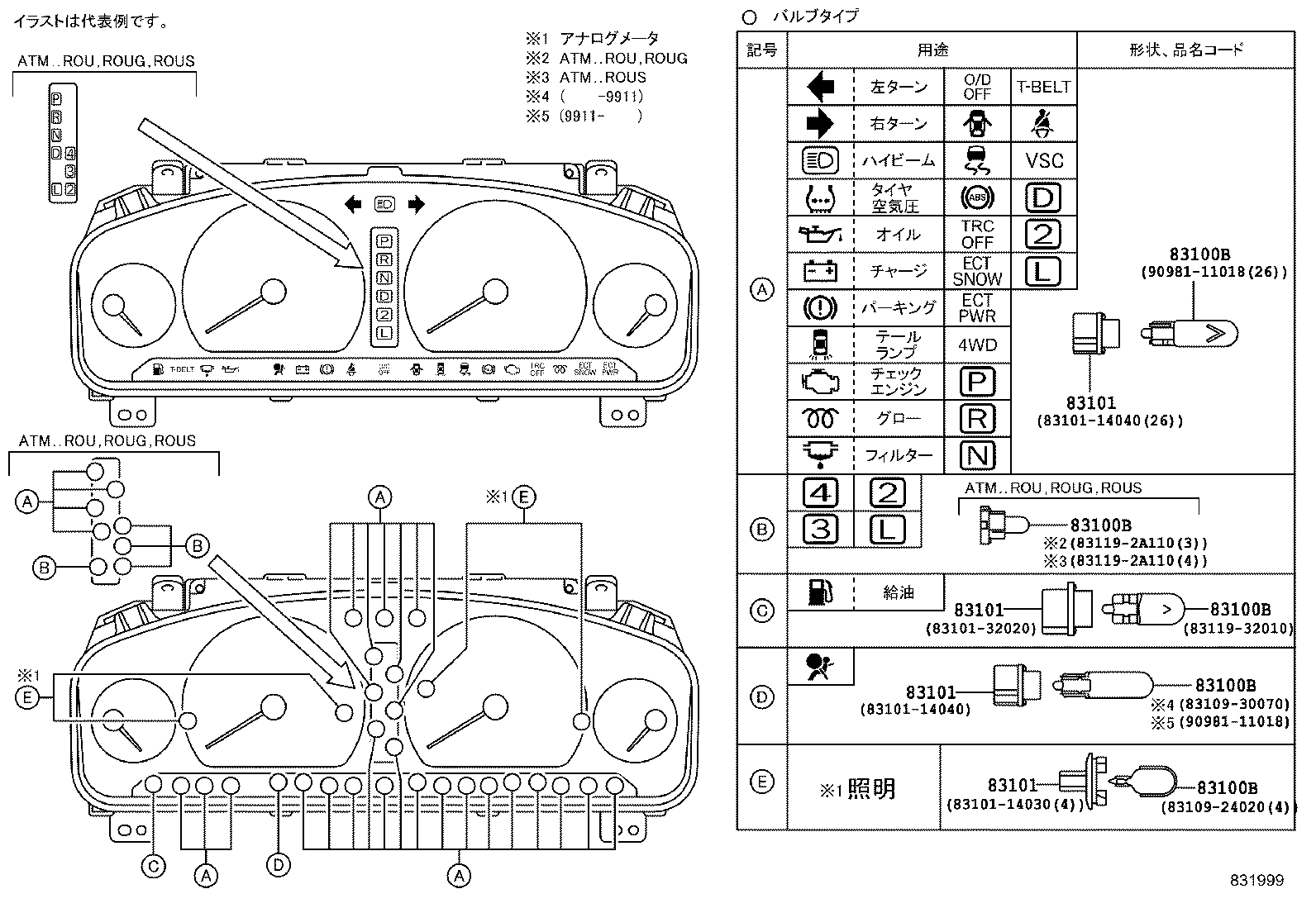

ILLUST NO. 2 OF 3(9609-9808)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
ILLUST NO. 2 OF 3(9609-9808)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ,ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ,ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-24010 |
GX100,JZX10#,LX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-2A110 |
JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 90981-11018 |
GX100,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT 14V 3.0W |
1 | ||
| 83109-30070 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-2A110 |
GX100,JZX100..ROU,ROUG 14V 0.64W |
3 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SC,SLT ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
