Toyota Cresta JZX100 ACCELERATOR LINK

JZX100-CEPVZ (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001

Engine 1JZGTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

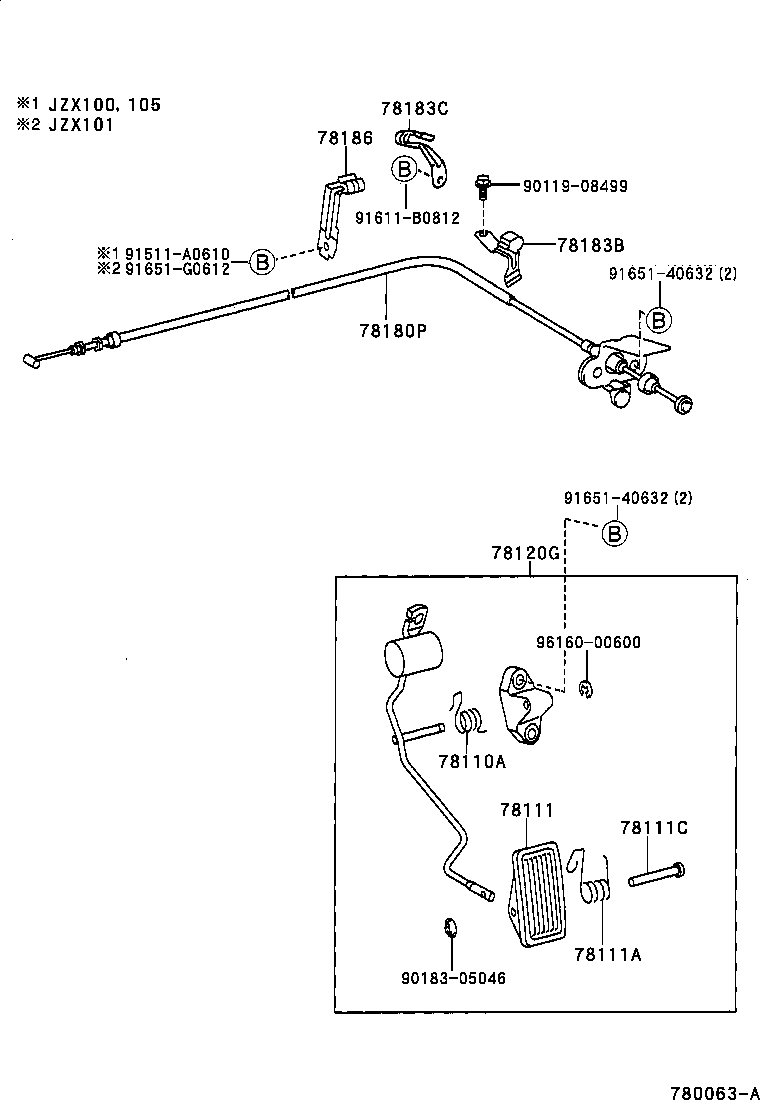

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03059	JZX10#..EXC,EXCG,ROU,ROUS,SLT	09/1996 - 06/2001	1
90508-26054	GX105;GX100..MTM;JZX100..ROUG	09/1996 - 06/2001	1
78111 - PEDAL, ACCELERATOR
78111-22020	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23108	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90241-05022	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-22370	JZX10#..EXC,EXCG,ROU,ROUS,SLT	09/1996 - 06/2001	1
78120-22330	GX105;GX100..MTM;JZX100..ROUG	09/1996 - 06/2001	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2A580	JZX100..ROUG	09/1996 - 06/2001	1
78180-2A560	JZX100,105..EXC,EXCG,ROU,SLT	09/1996 - 06/2001	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30130	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22100	GX100;JZX100..ROUG	09/1996 - 08/1998	1
78186-22100	JZX100..ROUG	08/1998 - 06/2001	1
78186-22110	JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 06/2001	1
Common parts
90119-08499
90183-05046
91511-A0610
91611-B0812
91651-40632
91651-G0612
96160-00600

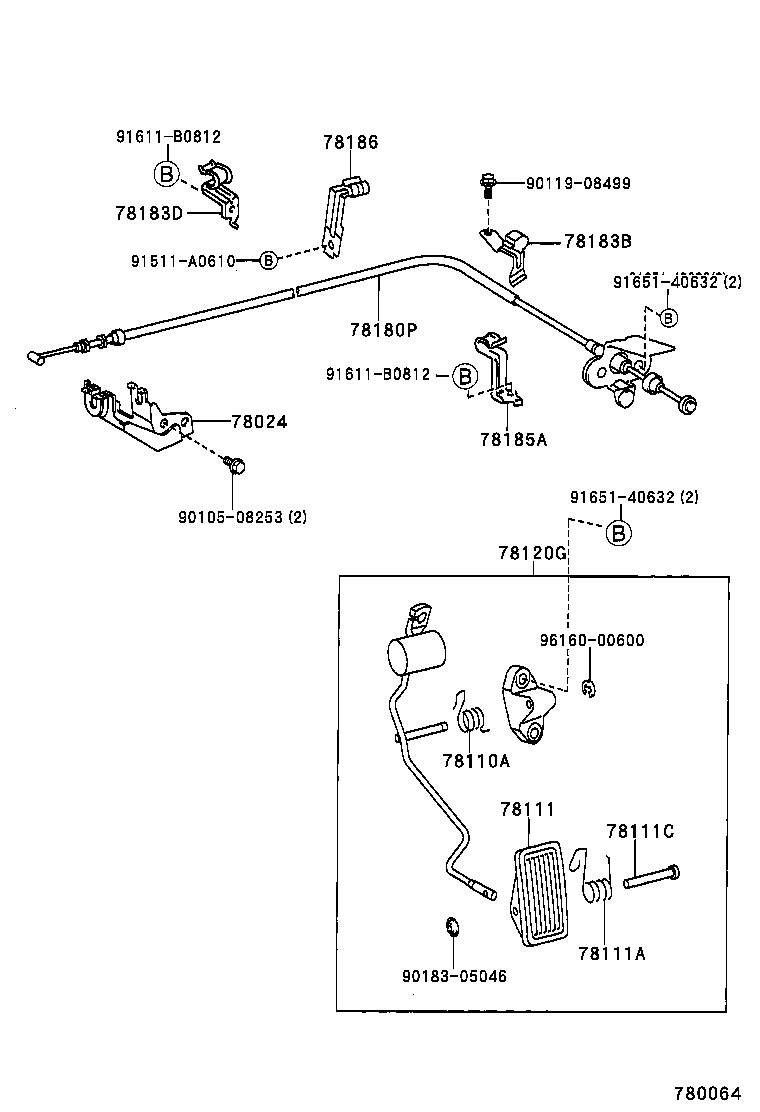

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-88400	JZX100..ROUG	09/1996 - 06/2001	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03059	JZX10#..EXC,EXCG,ROU,ROUS,SLT	09/1996 - 06/2001	1
90508-26054	GX105;GX100..MTM;JZX100..ROUG	09/1996 - 06/2001	1
78111 - PEDAL, ACCELERATOR
78111-22020	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23108	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90241-05022	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-22370	JZX10#..EXC,EXCG,ROU,ROUS,SLT	09/1996 - 06/2001	1
78120-22330	GX105;GX100..MTM;JZX100..ROUG	09/1996 - 06/2001	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2A580	JZX100..ROUG	09/1996 - 06/2001	1
78180-2A560	JZX100,105..EXC,EXCG,ROU,SLT	09/1996 - 06/2001	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30130	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78187-22040	JZX100..ROUG	09/1996 - 06/2001	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-22070	JZX100..ROUG	09/1996 - 06/2001	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22100	GX100;JZX100..ROUG	09/1996 - 08/1998	1
78186-22100	JZX100..ROUG	08/1998 - 06/2001	1
78186-22110	JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 06/2001	1
Common parts
90105-08253
90119-08499
90183-05046
91511-A0610
91611-B0812
91651-40632
96160-00600
