JZX100-CEPUF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 45201P 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-22490G1

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45100-22490E0

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(T),ORCHID BROWN,TRIM40

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45100-22840E0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22840G0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-22370E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-22490G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22370G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22490E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-44030G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

DK.SAGE,TRIM6#

 1
45130-44030E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B4

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MD.GRAY,TRIM4#,6#

 1
45186-44010E1

GX105;GX100,JZX100..EXC

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010E1

GX105;GX100,JZX100..EXC

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45186-44010B4

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MD.GRAY,TRIM4#,6#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GX10#,JZX10#,LX100

 1
Common parts
90148-60007

(9609- )

Click highlighted areas on diagram

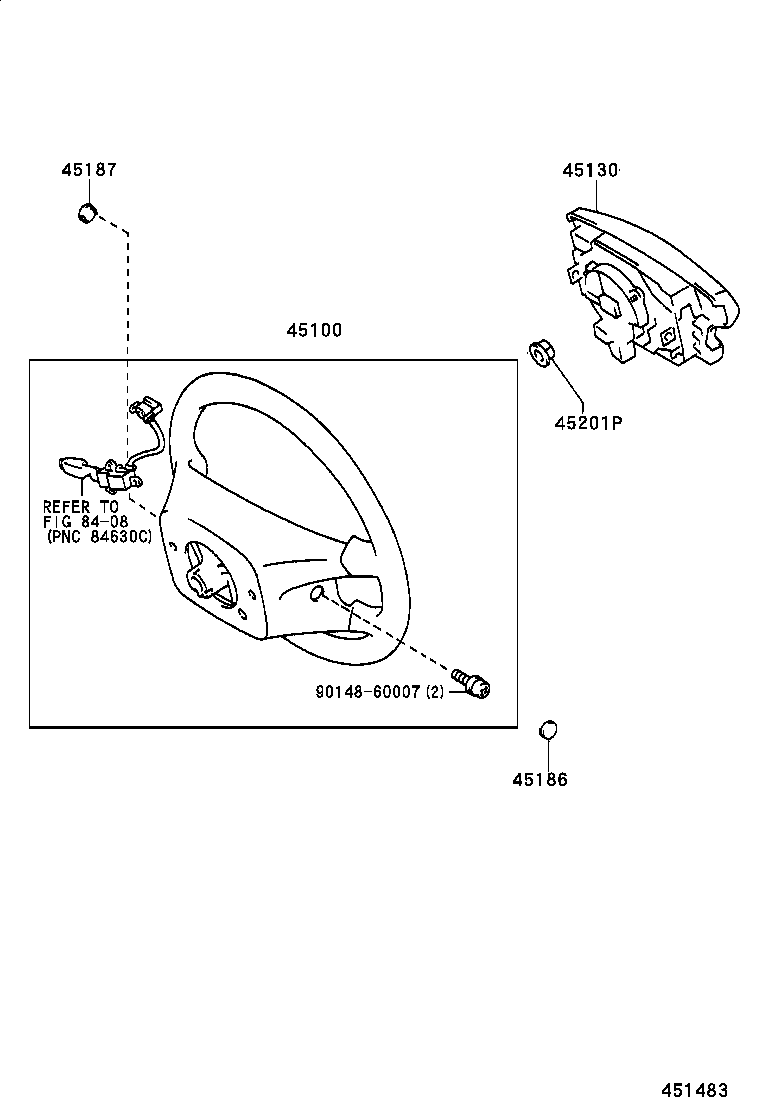

4-SPOKE,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)

diagram 45100 45130 45186 45187 45201P 8408 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-22490G1

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45100-22490E0

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(T),ORCHID BROWN,TRIM40

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45100-22840E0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22840G0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-22370E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-22490G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22370G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22490E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-44030G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

DK.SAGE,TRIM6#

 1
45130-44030E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010B4

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MD.GRAY,TRIM4#,6#

 1
45186-44010E1

GX105;GX100,JZX100..EXC

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-44010E1

GX105;GX100,JZX100..EXC

ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45186-44010B4

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MD.GRAY,TRIM4#,6#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GX10#,JZX10#,LX100

 1
Common parts
90148-60007
Linked diagrams
8408

(9808- )

Click highlighted areas on diagram

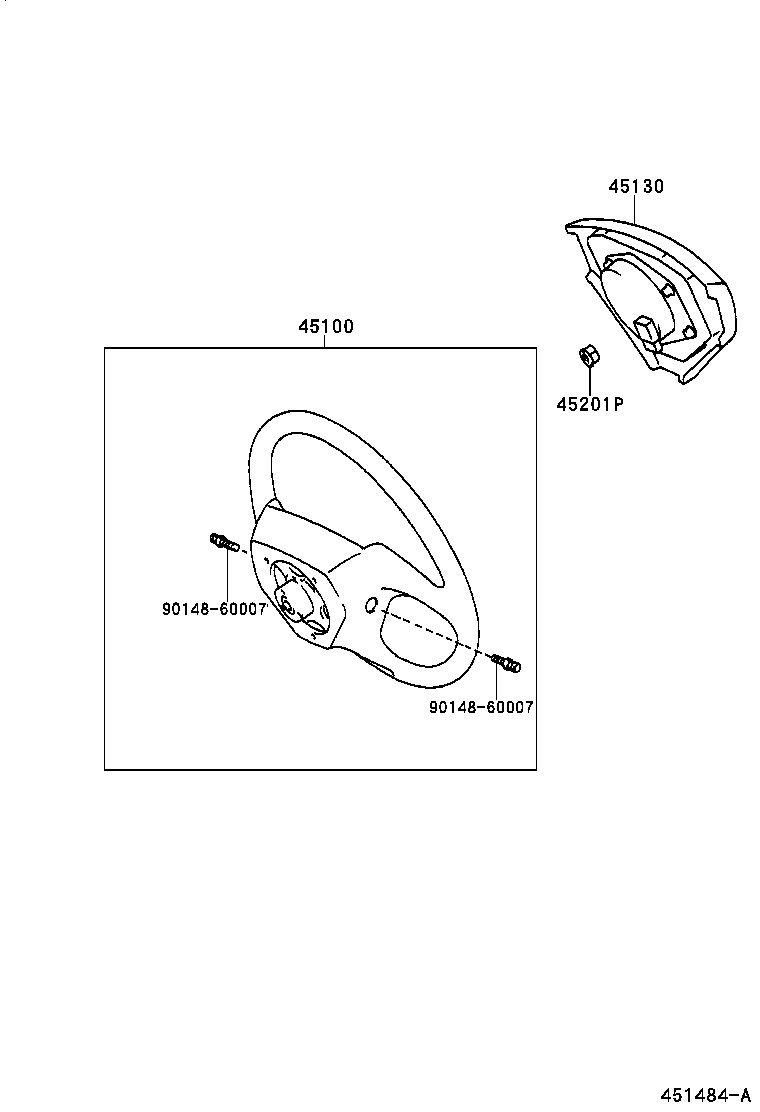

3-SPOKE

diagram 45100 45130 45201P 9014860007 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-22490G1

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45100-22490E0

JZX105;GX100,JZX100,101..EXC,EXCG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(T),ORCHID BROWN,TRIM40

 1
45100-22870E0

GX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝG *(Y),ORCHID BROWN,TRIM4#

 1
45100-22840E0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-22840G0

JZX105;GX100,JZX100..EXC

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-22370E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-22490G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22370G0

GX100,JZX10#,LX100..EXC,EXCG,SC,SLT

DK.SAGE,TRIM6#

 1
45130-22490E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45130-44030G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

DK.SAGE,TRIM6#

 1
45130-44030E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GX10#,JZX10#,LX100

 1
Common parts
90148-60007
