JZX100-CEPUF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZ#,2JZGE..JZX100,101

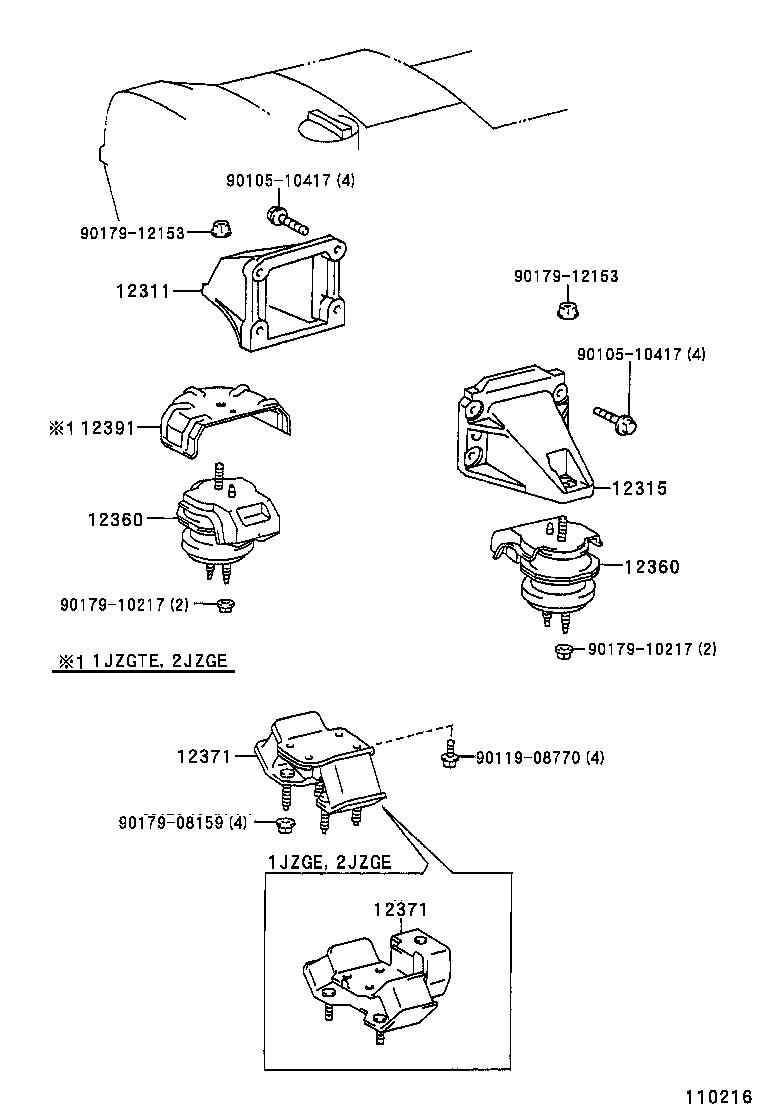

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12371 12391 9010510417 9010510417 9011908770 9017908159 9017910217 9017910217 9017912153 9017912153
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46110

1JZ#,2JZGE..JZX100,101

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46060

1JZ#,2JZGE..JZX100,101

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46122

1JZ#,2JZGE..JZX100,101

 2
12360-46121

1JZ#,2JZGE..JZX100,101

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46122

1JZ#,2JZGE..JZX100,101

 2
12360-46121

1JZ#,2JZGE..JZX100,101

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12380-46040

1JZGE,2JZGE..JZX100,101..EXC,EXCG,ROU,SLT

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12380-46040

1JZGE,2JZGE..JZX100,101..EXC,EXCG,ROU,SLT

 1
Common parts
90105-10417
90119-08770
90179-08159
90179-10217
90179-12153
