JZX100-CEPSF (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZGE,2JZGE..JZX100,101

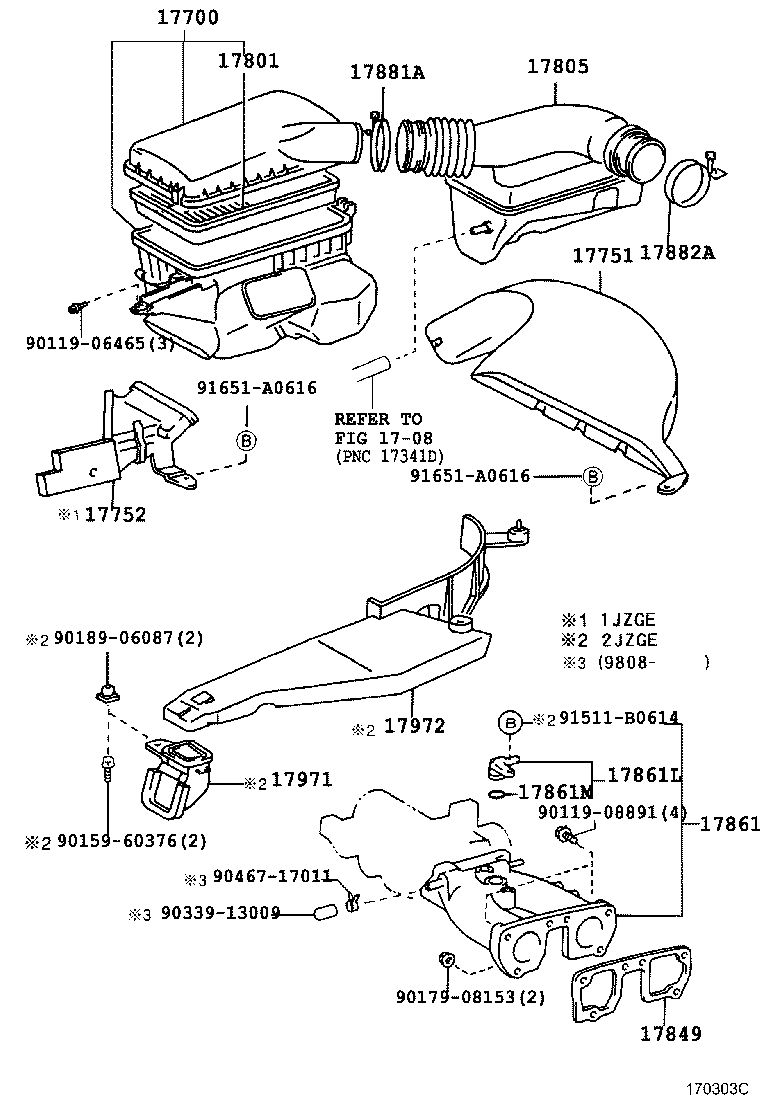

Click highlighted areas on diagram

diagram 1708 17700 17751 17752 17801 17805 17849 17861 17861L 17861M 17881A 17882A 17971 17972 9011906465 9011908891 9015960376 9017908153 9018906087 9033913009 9046717011 91511B0614 91651A0616 91651A0616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46300

1JZGE..JZX100,105

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46090

1JZGE,2JZGE..JZX10#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-46070

1JZ#..JZX100,105

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46070

1JZGE,2JZGE..JZX10#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-46110

1JZGE,2JZGE..JZX10#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020

1JZGE,2JZGE..JZX100,101

 1
17861 - CONNECTOR, INTAKE AIR
17860-46100

1JZGE..JZX100

 1
17860-46101

1JZGE..JZX100

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1JZGE,2JZGE..JZX10#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

1JZGE,2JZGE..JZX10#

 1
Common parts
90119-06465
90119-08891
90159-60376
90179-08153
90189-06087
90339-13009
90467-17011
91511-B0614
91651-A0616
Linked diagrams
1708
