JZX100-CEPQF (1996)
Toyota Cresta
(9609- )

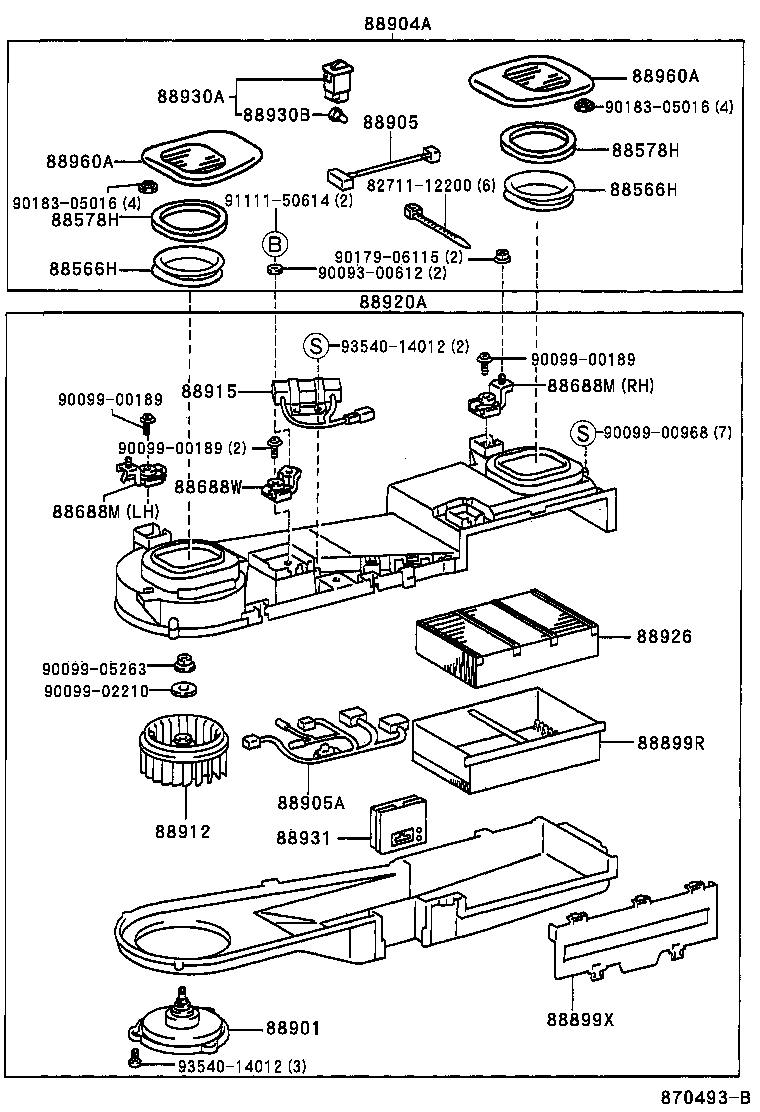

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22110 |
GX10#,JZX10#,LX100 |
2 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22110 |
GX10#,JZX10#,LX100 |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-30370 |
GX10#,JZX10#,LX100 |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-30370 |
GX10#,JZX10#,LX100 |
2 | ||
| 88688M - BRACKET, AIR PURIFIER, NO.2 | ||||
| 88688-2A200 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 88688-2A190 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 88688M - BRACKET, AIR PURIFIER, NO.2 | ||||
| 88688-2A200 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 88688-2A190 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-2A180 |
GX10#,JZX10#,LX100 |
2 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-22320 |
GX10#,JZX10#,LX100 |
1 | ||
| 88899X - PLATE, AIR PURIFIER COVER | ||||
| 88899-22340 |
GX10#,JZX10#,LX100 |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-22320 |
GX10#,JZX10#,LX100 |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-22340E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 88904-22340G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-22330 |
GX10#,JZX10#,LX100 |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-22350 |
GX10#,JZX10#,LX100 |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-22310 |
GX10#,JZX10#,LX100 |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22310 |
GX10#,JZX10#,LX100 |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22350 |
GX10#,JZX10#,LX100 |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-22340 |
GX10#,JZX10#,LX100 |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22330 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 88930-22330 |
GX100,JZX10#,LX100 |
1 | ||
| 88930B - BULB, AIR PURIFIER SWITCH | ||||
| 90010-03005 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 14V 1.8W |
1 | ||
| 90010-03005 |
GX100,JZX10#,LX100 14V 1.8W |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-22330 |
GX10#,JZX10#,LX100 |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-22320G1 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,左側 |
1 | ||
| 88960-22320E1 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 88960-22330E1 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,右側 |
1 | ||
| 88960-22330G1 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,右側 |
1 | ||
| 88960-22321E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 88960-22331E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,右側 |
1 | ||
| 88960-22321G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,左側 |
1 | ||
| 88960-22331G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,右側 |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-22320G1 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,左側 |
1 | ||
| 88960-22320E1 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 88960-22330E1 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,右側 |
1 | ||
| 88960-22330G1 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,右側 |
1 | ||
| 88960-22321E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 88960-22331E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,右側 |
1 | ||
| 88960-22321G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,左側 |
1 | ||
| 88960-22331G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6#,右側 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90093-00612 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05263 | ||||
| 90179-06115 | ||||
| 90183-05016 | ||||
| 91111-50614 | ||||
| 93540-14012 | ||||
