JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

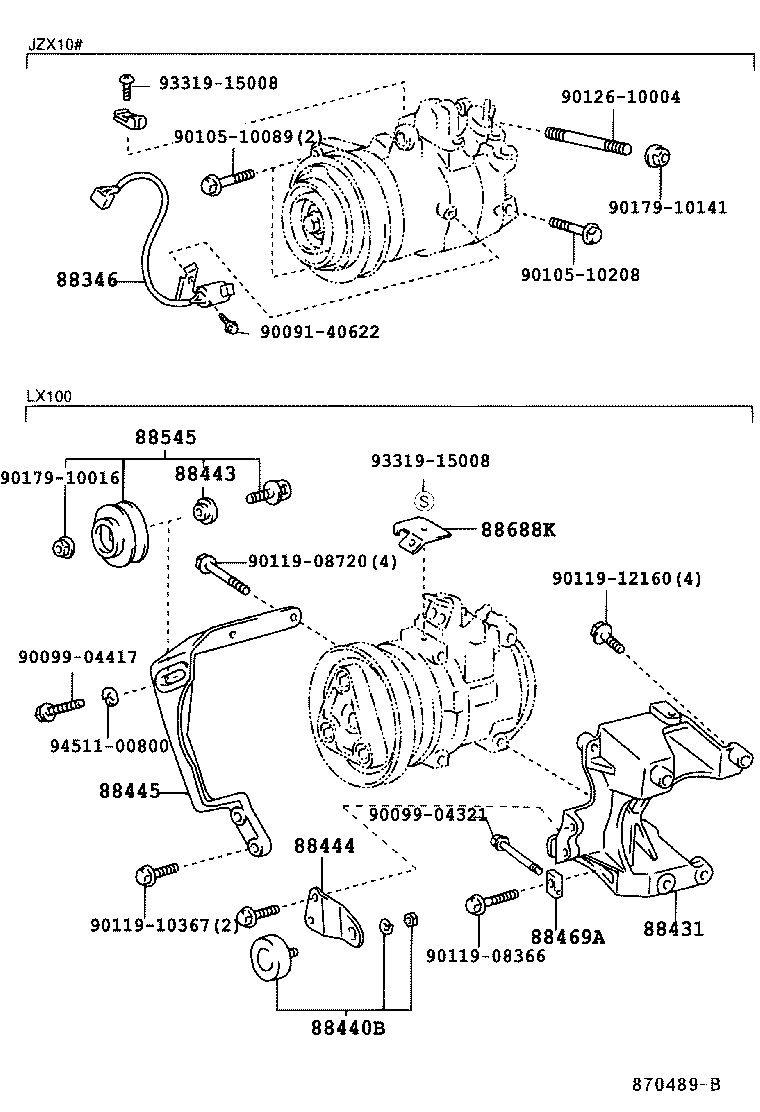

ILLUST NO. 1 OF 2(9609- )JZX10#,LX100

Click highlighted areas on diagram

diagram 88346 88431 88440B 88443 88444 88445 88469A 88545 88688K 9009140622 9009904321 9009904417 9010510089 9010510208 9011908366 9011908720 9011910367 9011912160 9012610004 9017910016 9017910141 9331915008 9331915008 9451100800
Part # Description Qty Price
88346 - SENSOR,COMPRESSOR
88346-2A010

JZX10#

 1
Common parts
90091-40622
90099-04321
90099-04417
90105-10089
90105-10208
90119-08366
90119-08720
90119-10367
90119-12160
90126-10004
90179-10016
90179-10141
93319-15008
94511-00800

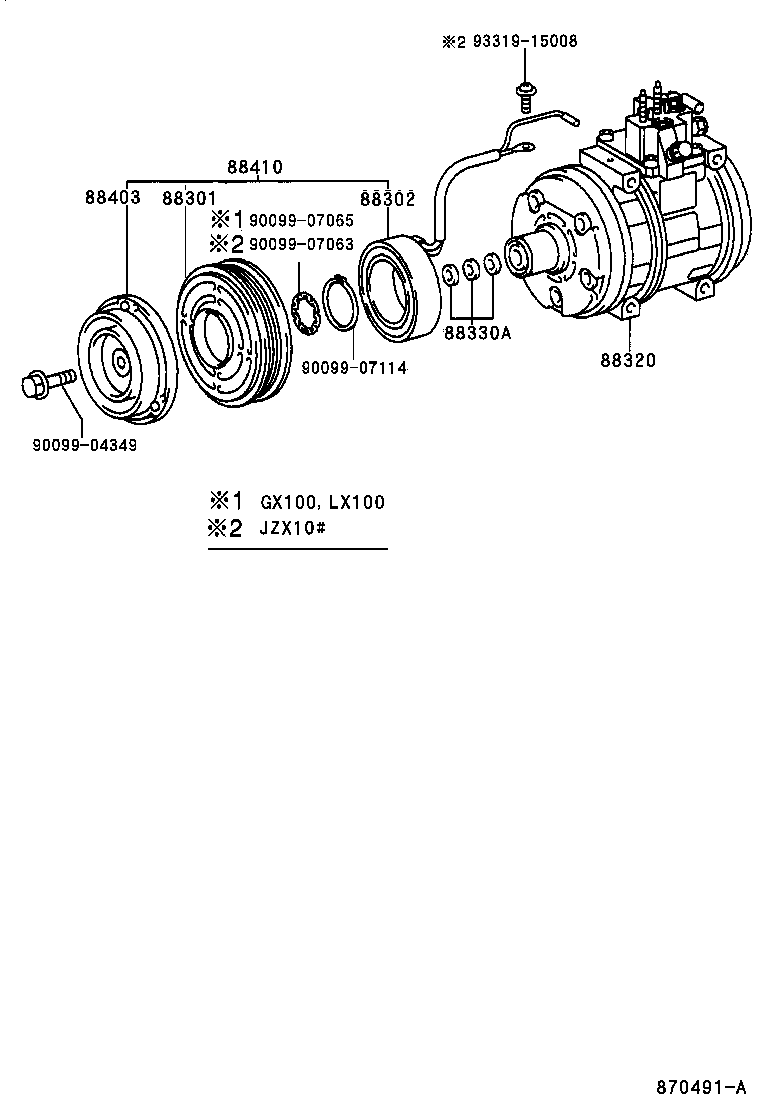

ILLUST NO. 2 OF 2(9609- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907063 9009907065 9009907114 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-2A020

JZX10#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

GX100,JZX10#,LX100

 1
88411-2A030

JZX10#,LX100

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2A050

JZX10#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GX10#,JZX10#,LX100

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

JZX10#

 1
88410 - CLUTCH ASSY, MAGNET
88410-2A080

JZX10#

 1
Common parts
90099-04349
90099-07063
90099-07065
90099-07114
93319-15008
