JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)JZX100..EXC,EXCG,ROU,SLT

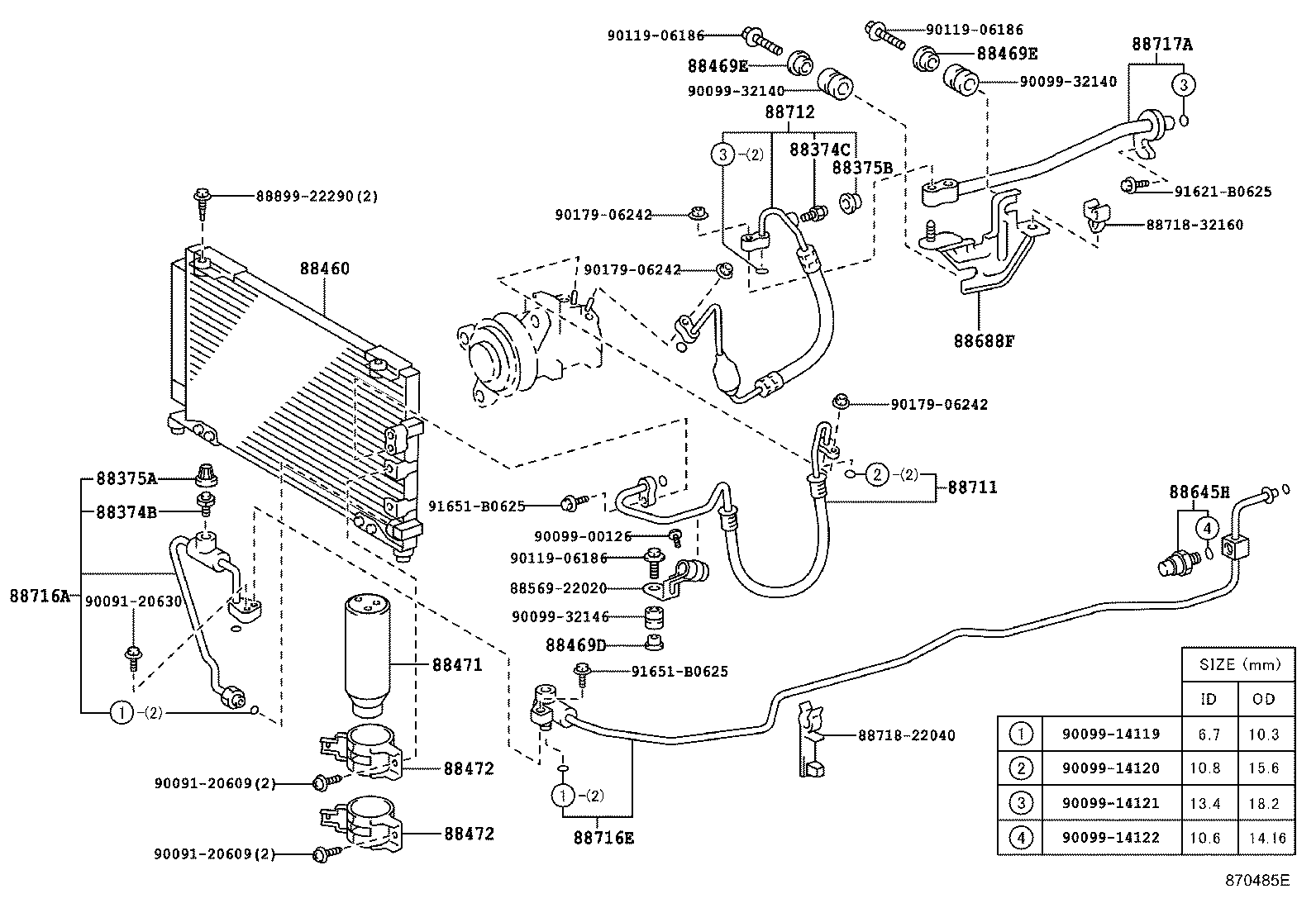

Click highlighted areas on diagram

diagram 88374B 88374C 88375A 88375B 88460 88469D 88469E 88469E 88471 88472 88472 8856922020 88645H 88688F 88711 88712 88716A 88716E 88717A 8871822040 8871832160 8889922290 9009120609 9009120609 9009120630 9009900126 9009914119 9009914120 9009914121 9009914122 9009932140 9009932140 9009932146 9011906186 9011906186 9011906186 9017906242 9017906242 9017906242 91621B0625 91651B0625 91651B0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

JZX10#

 1
88374-30010

GX10#,JZX10#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

GX100,JZX100,105..EXC,EXCG,ROU,SLT

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

JZX10#

 1
88375-30290

GX10#,JZX10#

 1
88460 - CONDENSER ASSY, COOLER
88460-22540

GX100,JZX100,105..EXC,EXCG,ROU,SLT

 1
88460-22560

GX10#,JZX10#

 1
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-28010

GX10#,JZX10#,LX100

 1
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

GX100,JZX10#,LX100

 2
88469-28010

JZX10#,LX100

 2
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

GX100,JZX10#,LX100

 2
88469-28010

JZX10#,LX100

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

GX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22100

GX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22100

GX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT

 2
88645H - SWITCH, PRESSURE NO.1
88645-22080

GX10#,JZX100,105,LX100..EXC,EXCG,ROU,ROUS,SC,SLT

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22520

JZX10#,LX100

 1
88688-22520

GX100,JZX10#,LX100

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22860

JZX100,101..EXC,EXCG,ROUS,SLT

 1
88711-22810

JZX10#..EXC,EXCG,ROU,SLT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2A200

JZX100,101..EXC,EXCG,ROU,ROUS,SLT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22560

GX100,JZX100,105..EXC,EXCG,ROU,SLT

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2A570

GX100,JZX100,LX100..EXC,EXCG,ROU,SC,SLT

 1
88716-22590

GX100,JZX100,101

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22570

GX100,JZX10#,LX100

 1
88717-22570

JZX10#,LX100

 1
Common parts
88569-22020
88718-22040
88718-32160
88899-22290
90091-20609
90091-20630
90099-00126
90099-14119
90099-14120
90099-14121
90099-14122
90099-32140
90099-32146
90119-06186
90179-06242
91621-B0625
91651-B0625

(9808- )JZX100..EXC,EXCG,ROUS,SLT

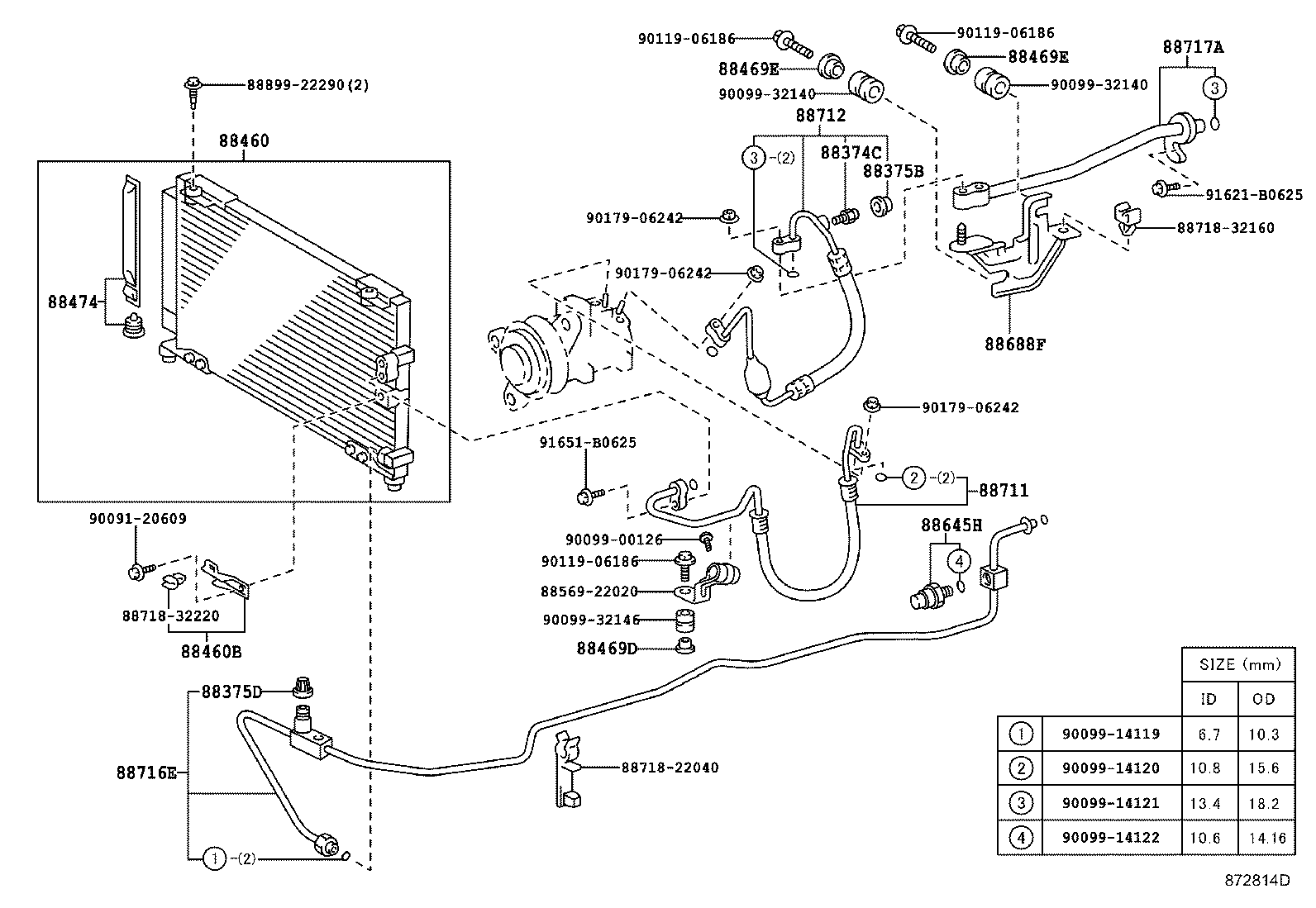

Click highlighted areas on diagram

diagram 88374C 88375B 88375D 88460 88460B 88469D 88469E 88469E 88474 8856922020 88645H 88688F 88711 88712 88716E 88717A 8871822040 8871832160 8871832220 8889922290 9009120609 9009900126 9009914119 9009914120 9009914121 9009914122 9009932140 9009932140 9009932146 9011906186 9011906186 9011906186 9017906242 9017906242 9017906242 91621B0625 91651B0625
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

JZX10#

 1
88374-30010

GX10#,JZX10#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

JZX10#

 1
88375-30290

GX10#,JZX10#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GX10#,JZX10#

 1
88460 - CONDENSER ASSY, COOLER
88460-22540

GX100,JZX100,105..EXC,EXCG,ROU,SLT

 1
88460-22560

GX10#,JZX10#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-22690

GX10#,JZX10#

 1
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-28010

GX10#,JZX10#,LX100

 1
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

GX100,JZX10#,LX100

 2
88469-28010

JZX10#,LX100

 2
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

GX100,JZX10#,LX100

 2
88469-28010

JZX10#,LX100

 2
88474 - DRYER, COOLER
88474-22010

GX10#,JZX10#

 1
88474-47010

GX10#,JZX10#

 1
88645H - SWITCH, PRESSURE NO.1
88645-22080

GX10#,JZX100,105,LX100..EXC,EXCG,ROU,ROUS,SC,SLT

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22520

JZX10#,LX100

 1
88688-22520

GX100,JZX10#,LX100

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22860

JZX100,101..EXC,EXCG,ROUS,SLT

 1
88711-22810

JZX10#..EXC,EXCG,ROU,SLT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2A200

JZX100,101..EXC,EXCG,ROU,ROUS,SLT

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2A570

GX100,JZX100,LX100..EXC,EXCG,ROU,SC,SLT

 1
88716-22590

GX100,JZX100,101

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22570

GX100,JZX10#,LX100

 1
88717-22570

JZX10#,LX100

 1
Common parts
88569-22020
88718-22040
88718-32160
88718-32220
88899-22290
90091-20609
90099-00126
90099-14119
90099-14120
90099-14121
90099-14122
90099-32140
90099-32146
90119-06186
90179-06242
91621-B0625
91651-B0625
