JZX100-CEPQF (1996)
Toyota Cresta

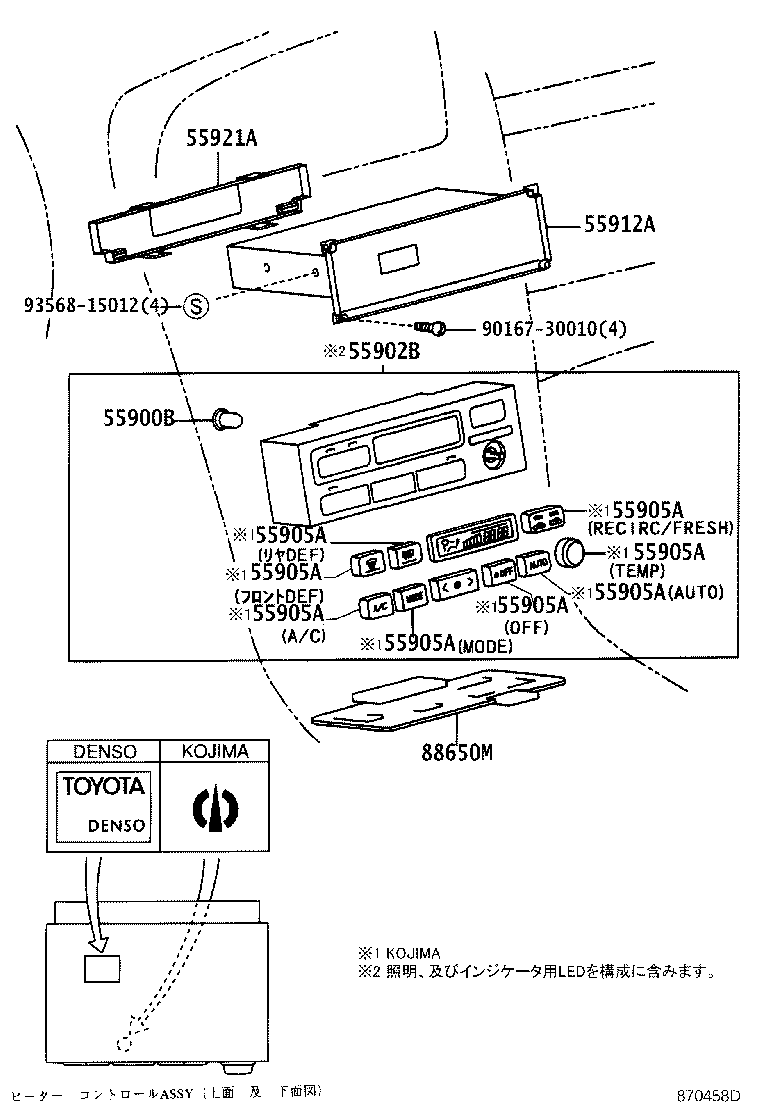

ILLUST NO. 1 OF 3(9609- )
ﾋ-ﾀｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GX100,JZX10#,LX100 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,KOJIMA |
6 | ||
| 90010-03004 |
JZX10# 9.1V 0.73W,ｸﾞﾘｰﾝｷｬｯﾌﾟ,ｴｷｼﾖｳ,DENSO |
2 | ||
| 90010-03003 |
JZX10#..EXC,EXCG,SLT 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾉﾌﾞ,DENSO |
3 | ||
| 90010-03004 |
JZX10#..EXC,EXCG,SLT 9.1V 0.73W,ｸﾞﾘｰﾝｷｬｯﾌﾟ,ｴｷｼﾖｳ,DENSO |
2 | ||
| 90010-05101 |
JZX10#..EXC,EXCG,SLT 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,KOJIMA |
6 | ||
| 90010-03003 |
JZX10# 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ﾉﾌﾞ,DENSO |
3 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-33160 |
JZX10# DENSO |
1 | ||
| 55902-33160 |
JZX10#..EXC,EXCG,SLT DENSO |
1 | ||
| 55902-22110 |
JZX10#..EXC,EXCG,SLT KOJIMA |
1 | ||
| 55902-22110 |
JZX10# KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60230 |
GX10#,JZX10#,LX100 RECIRC/FRESH,KOJIMA |
1 | ||
| 55905-22430 |
JZX10# TEMP,KOJIMA |
1 | ||
| 55905-30270 |
JZX10# TEMP,DENSO |
1 | ||
| 55905-60200 |
GX10#,JZX10#,LX100 REAR DEF,KOJIMA |
1 | ||
| 55905-60220 |
GX10#,JZX10#,LX100 OFF,KOJIMA |
1 | ||
| 55905-60190 |
GX10#,JZX10#,LX100 FRONT DEF,KOJIMA |
1 | ||
| 55905-60240 |
GX10#,JZX10#,LX100 AUTO,KOJIMA |
1 | ||
| 55905-60180 |
GX10#,JZX10#,LX100 A/C,KOJIMA |
1 | ||
| 55905-60210 |
GX10#,JZX10#,LX100 MODE,KOJIMA |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-33020 |
JZX10# DENSO |
1 | ||
| 55912-22020 |
JZX10# KOJIMA |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-22070 |
GX10#,JZX10#,LX100 KOJIMA |
1 | ||
| 55912-33030 |
JZX10# DENSO |
1 | ||
| 55921-22070 |
JZX10# KOJIMA |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-22620 |
JZX10# |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 93568-15012 | ||||

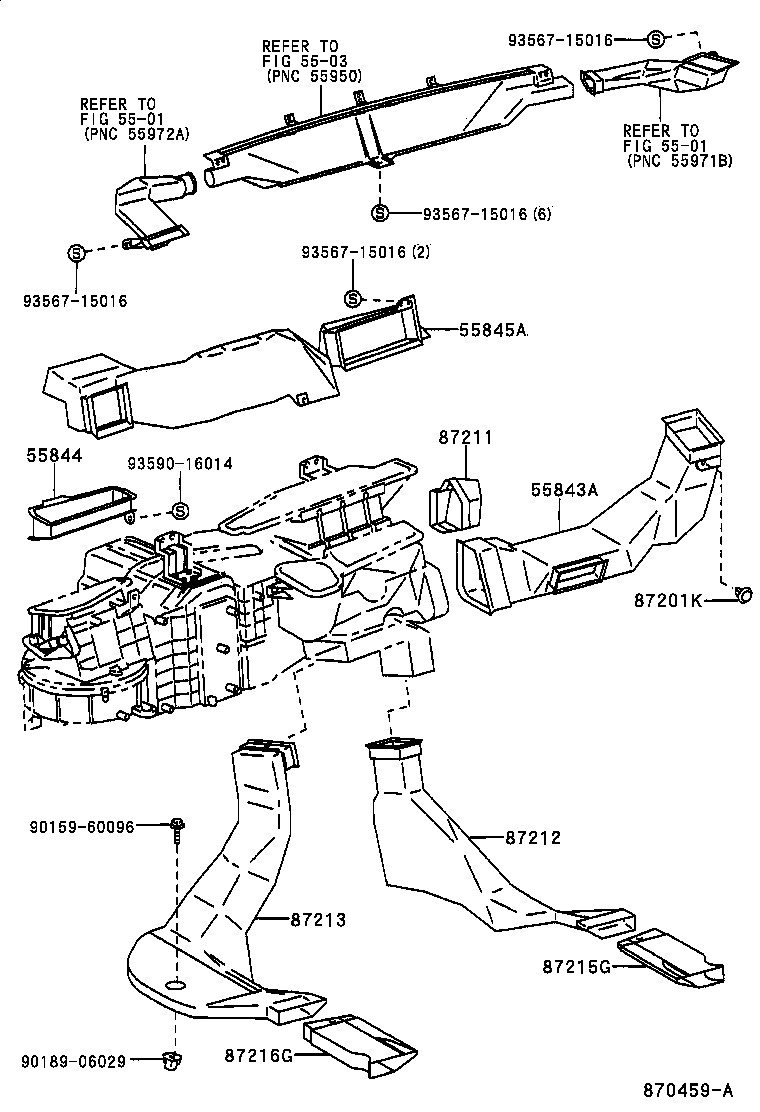

ILLUST NO. 2 OF 3(9609- )
ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-22140 |
GX10#,JZX10#,LX100 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-22130 |
GX10#,JZX10#,LX100 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-22210 |
GX10#,JZX10#,LX100 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-1000501 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT BLACK,TRIM4#,6# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-22160 |
GX10#,JZX10#,LX100 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-22060 |
GX100,JZX100,101,LX100 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-22041 |
GX10#,JZX10#,LX100 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-22051 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90159-60096 | ||||
| 90189-06029 | ||||
| 93567-15016 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5503 | ||||

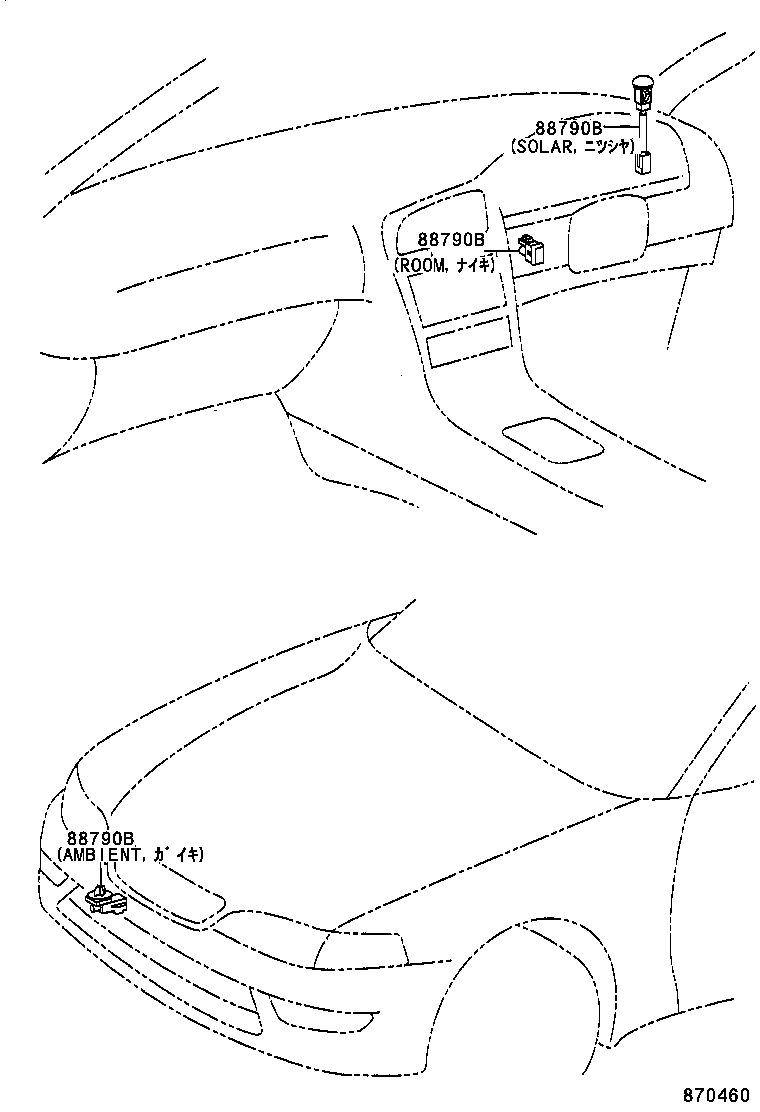

ILLUST NO. 3 OF 3(9609- )
ｵ-ﾄｴｱｺﾝ ｾﾝｻ(ｸ-ﾗ ｻ-ﾐｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-22120 |
GX10#,JZX10#,LX100 SOLAR(ﾆﾂｼﾔ) |
1 | ||
| 88790-22130 |
GX10#,JZX10#,LX100 AMBIENT(ｶﾞｲｷ) |
1 | ||
| 88790-22140 |
GX10#,JZX10#,LX100 ROOM(ﾅｲｷ) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22120 |
GX10#,JZX10#,LX100 SOLAR(ﾆﾂｼﾔ) |
1 | ||
| 88790-22130 |
GX10#,JZX10#,LX100 AMBIENT(ｶﾞｲｷ) |
1 | ||
| 88790-22140 |
GX10#,JZX10#,LX100 ROOM(ﾅｲｷ) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22120 |
GX10#,JZX10#,LX100 SOLAR(ﾆﾂｼﾔ) |
1 | ||
| 88790-22130 |
GX10#,JZX10#,LX100 AMBIENT(ｶﾞｲｷ) |
1 | ||
| 88790-22140 |
GX10#,JZX10#,LX100 ROOM(ﾅｲｷ) |
1 | ||
