JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )

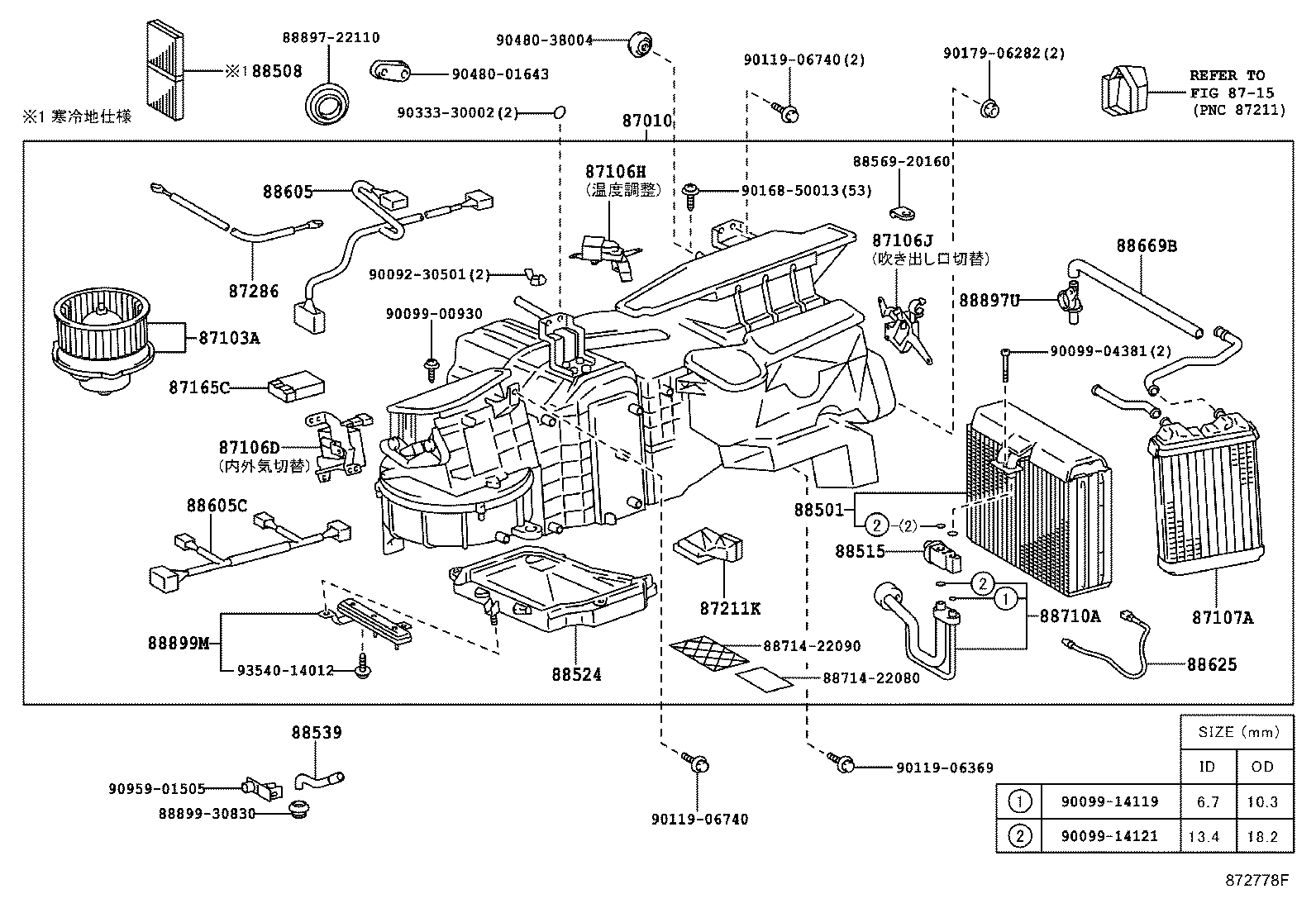

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-22210 |
JZX10# |
1 | ||
| 87010-22230 |
JZX10# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-22120 |
GX10#,JZX10#,LX100 |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-22130 |
GX10#,JZX10#,LX100 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-22180 |
GX10#,JZX10#,LX100 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-22140 |
GX10#,JZX10#,LX100 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-22260 |
GX10#,JZX10#,LX100 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-22040 |
GX10#,JZX10#,LX100 TOYOTA |
1 | ||
| 87165-22050 |
GX10#,JZX10# |
1 | ||
| 87165-22050 |
GX10#,JZX10#,LX100 DENSO |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87211-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22221 |
GX10#,JZX10#,LX100 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22230 |
JZX10# |
1 | ||
| 88524 - PANEL, COOLING BOX, BOTTOM | ||||
| 88524-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 88524-22060 |
GX10#,JZX10#,LX100 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22240 |
GX100,JZX100,101,LX100..EXC,EXCG,ROU,ROUS,SC,SLT |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22840 |
GX10#,JZX10#,LX100 |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-22850 |
GX10#,JZX10#,LX100 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-22250 |
GX10#,JZX10#,LX100 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22810 |
GX10#,JZX10#,LX100 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-22100 |
GX10#,JZX10#,LX100 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-22280 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88714-22080 | ||||
| 88714-22090 | ||||
| 88897-22110 | ||||
| 88899-30830 | ||||
| 90092-30501 | ||||
| 90099-00930 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06369 | ||||
| 90119-06740 | ||||
| 90168-50013 | ||||
| 90179-06282 | ||||
| 90333-30002 | ||||
| 90480-01643 | ||||
| 90480-38004 | ||||
| 90959-01505 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8715 | ||||
