JZX100-CEPQF (1996)
Toyota Cresta

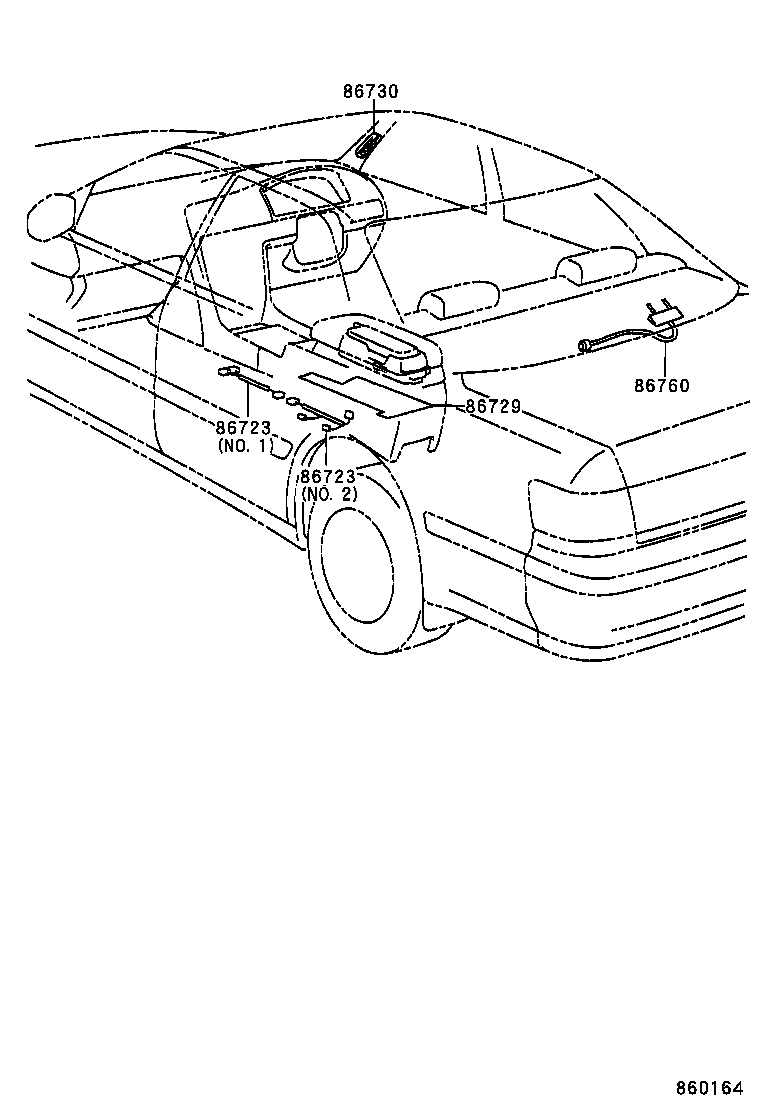

ILLUST NO. 1 OF 2(9609-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30150 |
GX100,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30200 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30130 |
GX100,JZX10#,LX100 D100,D500,D700,F400,P300 OR P400,NO.2 |
1 | ||
| 86723-30140 |
GX100,JZX10#,LX100 M100,NO.2 |
1 | ||
| 86723-30210 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30150 |
GX100,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30200 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30130 |
GX100,JZX10#,LX100 D100,D500,D700,F400,P300 OR P400,NO.2 |
1 | ||
| 86723-30140 |
GX100,JZX10#,LX100 M100,NO.2 |
1 | ||
| 86723-30210 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30110 |
GX100,JZX10#,LX100 NIPPONDENSO |
1 | ||
| 86730-30130 |
GX10#,JZX10#,LX100 |
1 | ||
| 86730-30120 |
GX100,JZX10#,LX100 TEN |
1 | ||
| 86760 - ANTENNA ASSY, TELEPHONE | ||||
| 86760-30040 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86760-30020 |
GX100,JZX10#,LX100 D100 OR M100 |
1 | ||
| 86760-30070 |
GX10#,JZX10#,LX100 J-PHONE |
1 | ||
| 86760-30030 |
GX100,JZX10#,LX100 D500,F400,P300 OR P400 |
1 | ||
| 86760-30060 |
GX10#,JZX10#,LX100 IDO,NTT,ﾂｰｶｰ |
1 | ||

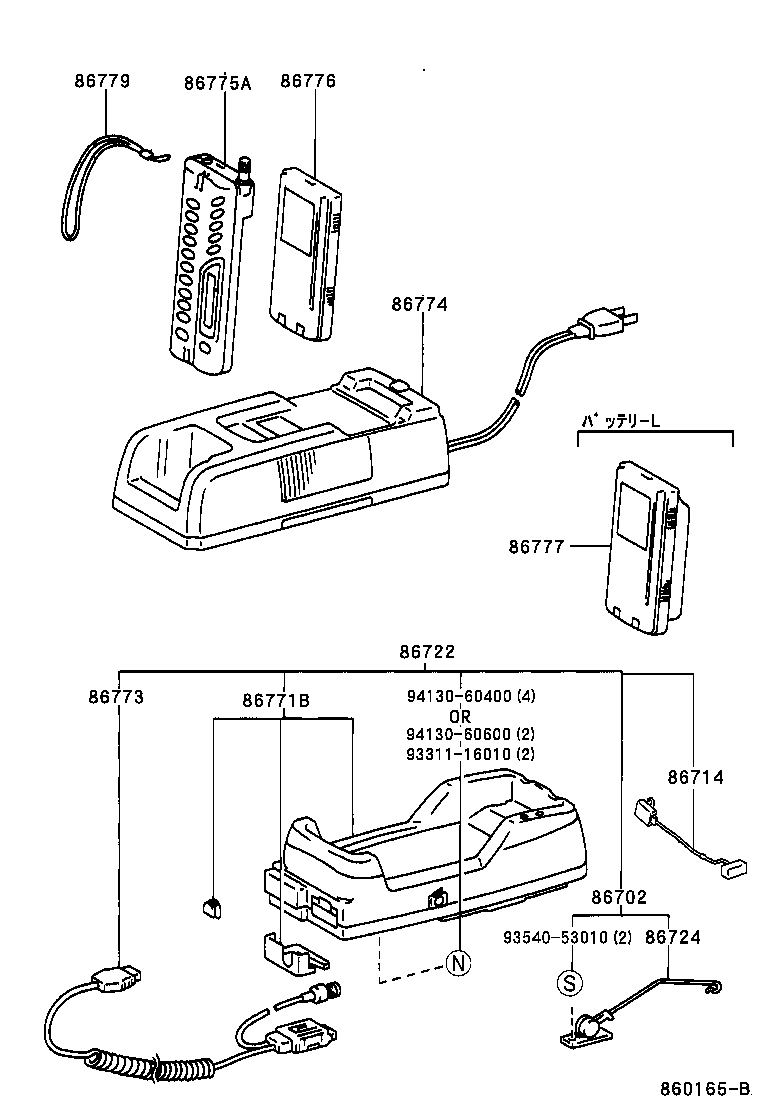

ILLUST NO. 2 OF 2(9609-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86702 - BRACKET SET, TELEPHONE | ||||
| 86702-30010 |
GX100,JZX10#,LX100 |
1 | ||
| 86714 - CONTROLLER, TELEPHONE | ||||
| 86714-50010 |
GX100,JZX10#,LX100 |
1 | ||
| 86722 - CRADLE, MOBILEPHONE | ||||
| 86072-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86072-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86072-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86072-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86072-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86072-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86072-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86724 - GUIDE, CURL CORD | ||||
| 86724-30010 |
GX100,JZX10#,LX100 |
1 | ||
| 86771B - CHARGER, PORTABLEPHONE BATTERY | ||||
| 86771-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86771-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86771-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86771-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86771-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86771-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86771-30100 |
GX10#,JZX10#,LX100 |
1 | ||
| 86771-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86773 - WIRE, PORTABLEPHONE | ||||
| 86773-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86773-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86774 - CHARGER, PORTABLEPHONE AC | ||||
| 86774-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86774-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86774-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86774-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86774-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86774-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86774-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86775A - HANDSET, PORTABLEPHONE | ||||
| 86775-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86775-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86775-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86775-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86775-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86775-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86775-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86776 - BATTERY, PORTABLEPHONE-S | ||||
| 86776-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86776-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86776-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86776-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86776-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86776-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86776-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86777 - BATTERY, MAYDAY | ||||
| 86777-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86777-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86777-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86777-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86777-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86777-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86779 - STRAP, PORTABLEPHONE | ||||
| 86779-50010 |
GX100,JZX10#,LX100 D100,D500 OR D700 |
1 | ||
| 86779-30010 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86779-30020 |
GX100,JZX10#,LX100 P300 OR P400 |
1 | ||
| Common parts | ||||
| 93311-16010 | ||||
| 93540-53010 | ||||
| 94130-60400 | ||||
| 94130-60600 | ||||

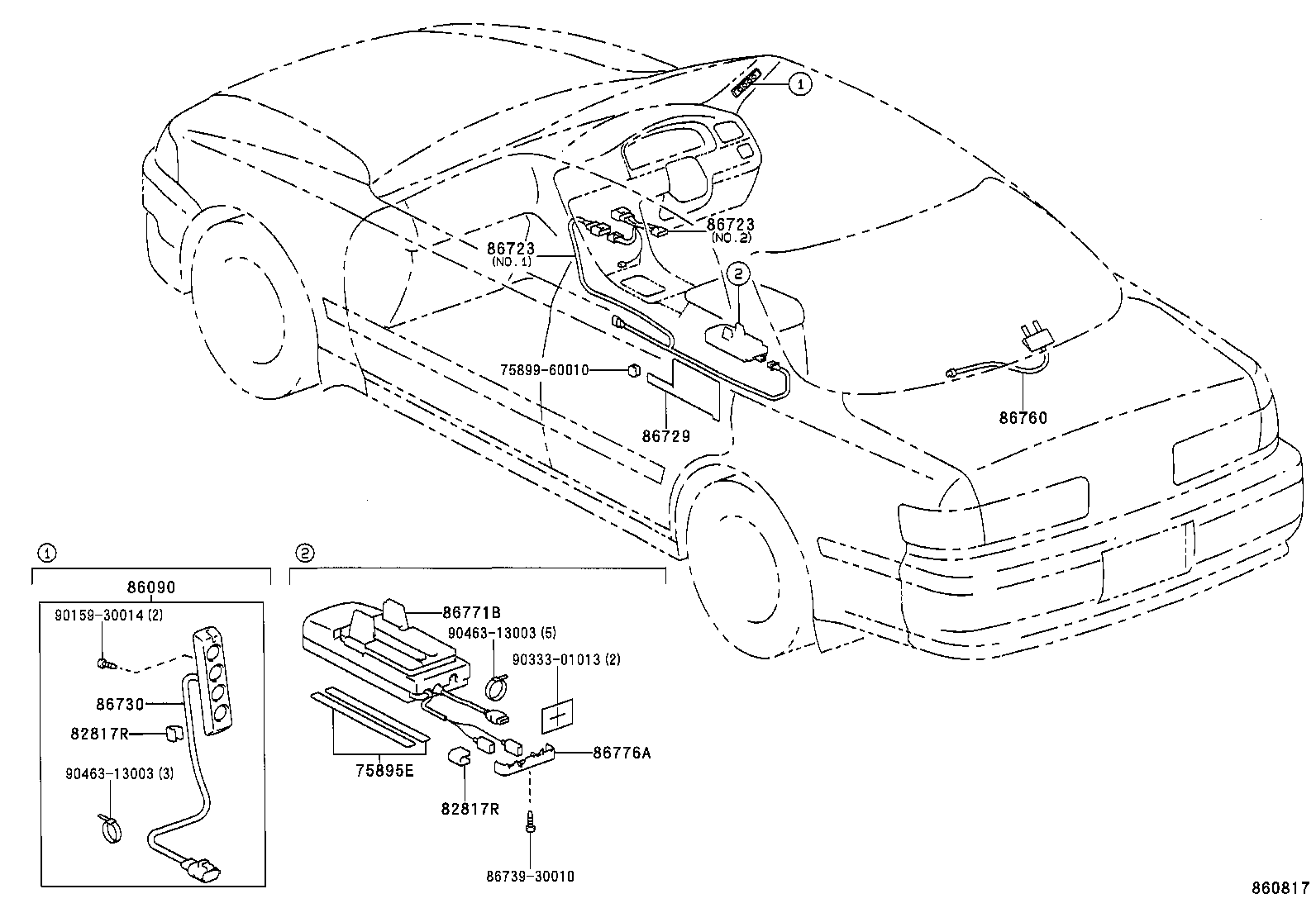

(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75895E - TAPE, MOULDING, NO.1 | ||||
| 75895-60010 |
GX10#,JZX10#,LX100 |
2 | ||
| 82817R - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-12400 |
GX10#,JZX10#,LX100 |
13 | ||
| 82817R - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-12400 |
GX10#,JZX10#,LX100 |
13 | ||
| 86090 - TELEPHONE ASSY | ||||
| 86090-30010 |
GX10#,JZX10#,LX100 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30150 |
GX100,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30200 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30130 |
GX100,JZX10#,LX100 D100,D500,D700,F400,P300 OR P400,NO.2 |
1 | ||
| 86723-30140 |
GX100,JZX10#,LX100 M100,NO.2 |
1 | ||
| 86723-30210 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-30150 |
GX100,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30200 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 86723-30130 |
GX100,JZX10#,LX100 D100,D500,D700,F400,P300 OR P400,NO.2 |
1 | ||
| 86723-30140 |
GX100,JZX10#,LX100 M100,NO.2 |
1 | ||
| 86723-30210 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 86729 - BRACKET, MOBILEPHONE | ||||
| 86729-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-30110 |
GX100,JZX10#,LX100 NIPPONDENSO |
1 | ||
| 86730-30130 |
GX10#,JZX10#,LX100 |
1 | ||
| 86730-30120 |
GX100,JZX10#,LX100 TEN |
1 | ||
| 86760 - ANTENNA ASSY, TELEPHONE | ||||
| 86760-30040 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86760-30020 |
GX100,JZX10#,LX100 D100 OR M100 |
1 | ||
| 86760-30070 |
GX10#,JZX10#,LX100 J-PHONE |
1 | ||
| 86760-30030 |
GX100,JZX10#,LX100 D500,F400,P300 OR P400 |
1 | ||
| 86760-30060 |
GX10#,JZX10#,LX100 IDO,NTT,ﾂｰｶｰ |
1 | ||
| 86771B - CHARGER, PORTABLEPHONE BATTERY | ||||
| 86771-30030 |
GX100,JZX10#,LX100 P300 |
1 | ||
| 86771-30020 |
GX100,JZX10#,LX100 F400 |
1 | ||
| 86771-30050 |
GX100,JZX10#,LX100 D500 |
1 | ||
| 86771-30040 |
GX100,JZX10#,LX100 P400 |
1 | ||
| 86771-30010 |
GX100,JZX10#,LX100 D700 |
1 | ||
| 86771-50010 |
GX100,JZX10#,LX100 M100 |
1 | ||
| 86771-30100 |
GX10#,JZX10#,LX100 |
1 | ||
| 86771-50020 |
GX100,JZX10#,LX100 D100 |
1 | ||
| 86776A - COVER, TELEPHONE WIRE | ||||
| 86776-30070 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 75899-60010 | ||||
| 86739-30010 | ||||
| 90159-30014 | ||||
| 90333-01013 | ||||
| 90463-13003 | ||||
