JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

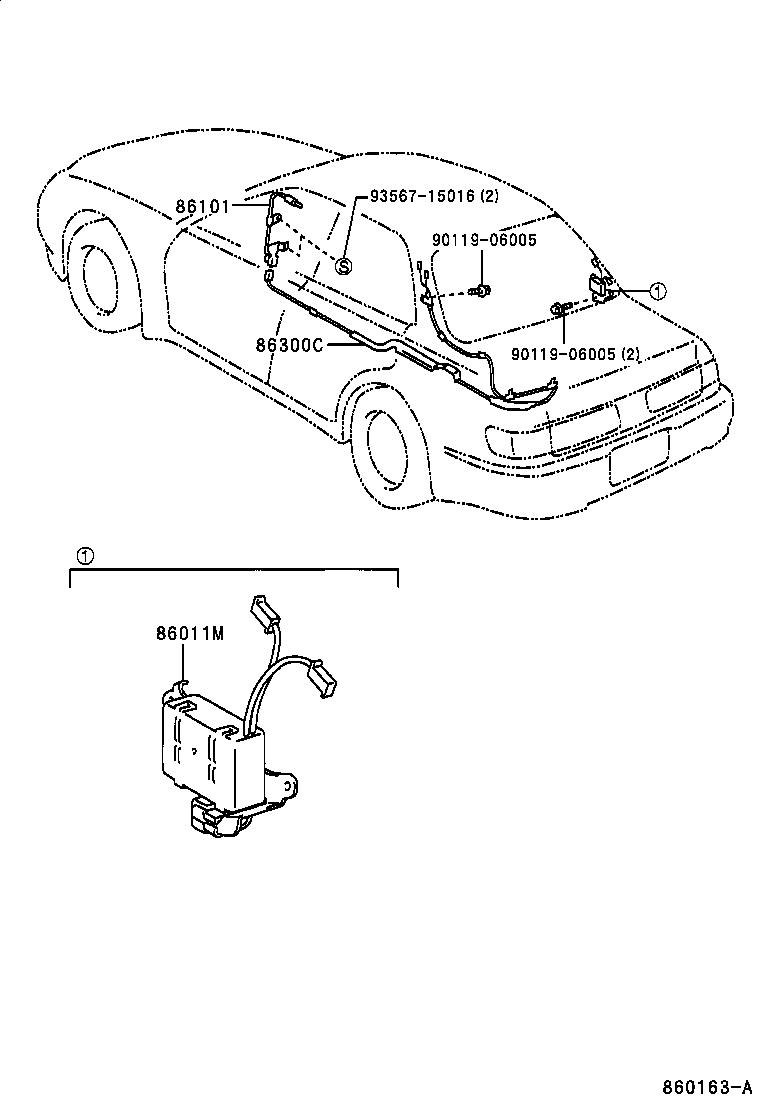

Click highlighted areas on diagram

diagram 86011M 86101 86300C 9011906005 9011906005 9356715016
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05307

GX10#,JZX10#,LX100

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-22290

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

ﾅｼ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ)

 1
86101-22290

GX10#,JZX100,105,LX100

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-22600

GX10#,JZX100,105,LX100

 1
86300-22600

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
Common parts
90119-06005
93567-15016
