JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

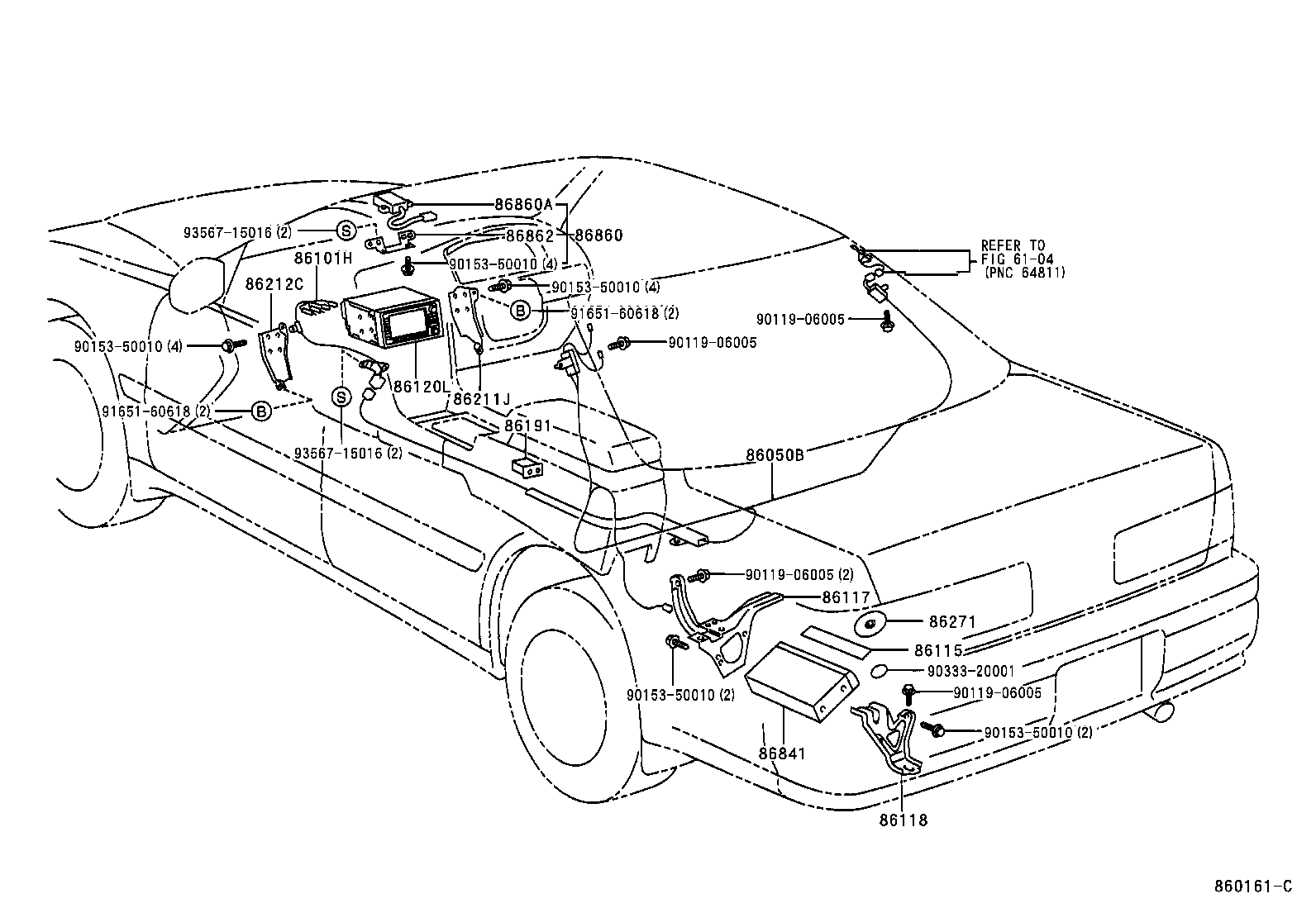

Click highlighted areas on diagram

diagram 6104 86050B 86101H 86115 86117 86118 86120L 86191 86211J 86212C 86271 86841 86860 86860A 86862 9011906005 9011906005 9011906005 9011906005 9015350010 9015350010 9015350010 9015350010 9015350010 9033320001 9165160618 9165160618 9356715016 9356715016
Part # Description Qty Price
86050B - ANTENNA ASSY, TELEVISION
86050-22230

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86050-22240

GX100,JZX100..SLT

ﾅｼ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86050-22231

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86050-22240

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

ﾅｼ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86101H - CORD SUB-ASSY, ANTENNA
86101-22311

GX100,JZX100..SLT

ﾅｼ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86101-22310

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

ﾅｼ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86101-22300

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86115 - TRAY, MULTI-DISPLAY COMPUTER
86115-22020

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SLT

 1
86115-22020

GX100,JZX100,105,LX100..EXC,EXCG,ROU,SLT

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-22021

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-22021

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-2A321

JZX100..ROU,SLT;GX100,JZX105,LX100..EXC,SLT

MATSUSHITA,ID=56018,"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ

 1
86120-2A322

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MATSUSHITA,ID=56033

 1
86120-2A320

JZX100..ROU,SLT;GX100,JZX105,LX100..EXC,SLT

MATSUSHITA,ID=56006,"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ

 1
86191 - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-32010

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-22190

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-22170

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86271 - DISC, DISC PLAYER
86271-33010

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86271-22070

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86271-33011

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86271-22072

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86841 - COMPUTER, NAVIGATION
86841-22020

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86841-33013

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86841-33020

GX10#,JZX10#,LX100

 1
86841-33012

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-22030

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86860A - ANTENNA, NAVIGATION
86861-22020

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-60010

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
Common parts
90119-06005
90153-50010
90333-20001
91651-60618
93567-15016
Linked diagrams
6104
