JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )

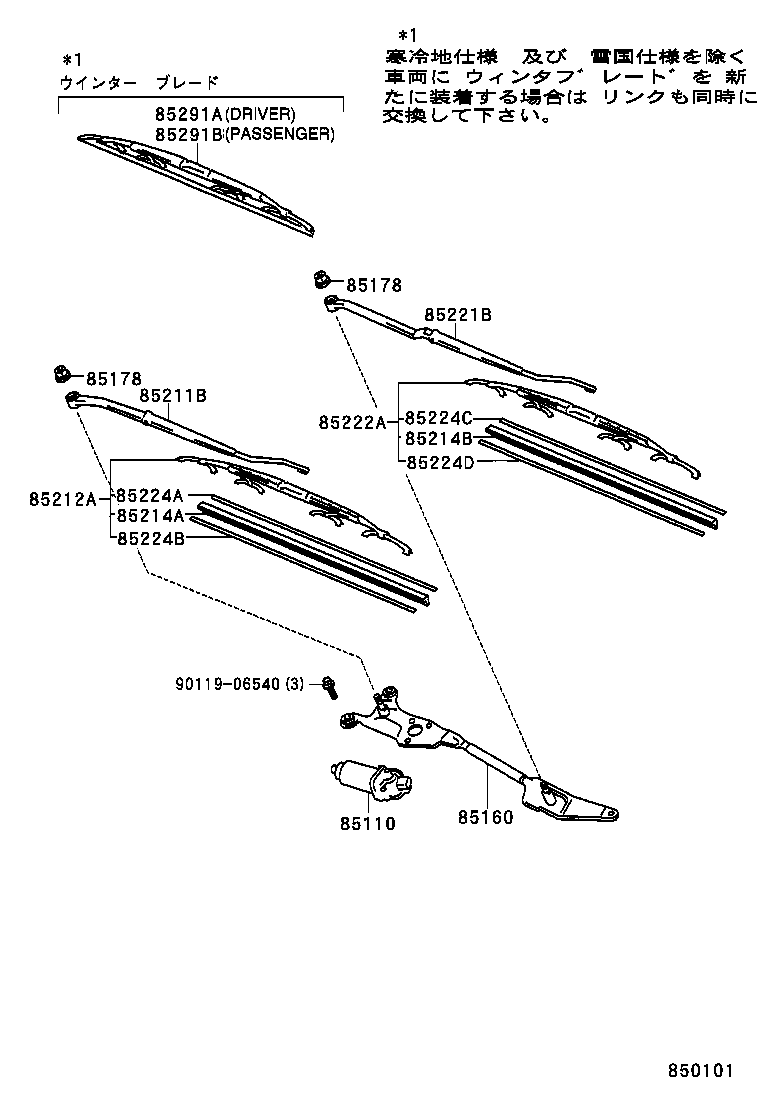

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-22570 |
GX10#,JZX10#,LX100 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-22550 |
GX10#,JZX10#,LX100 ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ) |
1 | ||
| 85150-22540 |
GX10#,JZX10#,LX100 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
GX10#,JZX10#,LX100 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
GX10#,JZX10#,LX100 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-22440 |
GX10#,JZX10#,LX100 |
1 | ||
| 85211-22450 |
GX10#,JZX10#,LX100 ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ) |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-22420 |
GX10#,JZX10#,LX100 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-33110 |
GX10#,JZX10#,LX100 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-35040 |
GX10#,JZX10#,LX100 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-22350 |
GX10#,JZX10#,LX100 ｱﾘ(ﾛﾂｸ ﾊﾞﾂｸ) |
1 | ||
| 85221-22340 |
GX10#,JZX10#,LX100 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-3H060 |
GX10#,JZX10#,LX100 |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-33040 |
GX10#,JZX10#,LX100 |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-33040 |
GX10#,JZX10#,LX100 |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-35040 |
GX10#,JZX10#,LX100 |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-35040 |
GX10#,JZX10#,LX100 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-50030 |
GX10#,JZX10#,LX100 |
1 | ||
| 85291-33040 |
GX10#,JZX10#,LX100 ｱﾘ(ﾌｲﾝ) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-30030 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90119-06540 | ||||
