Toyota Cresta JZX100 WIRELESS DOOR LOCK

Part #	Description	Period	Qty

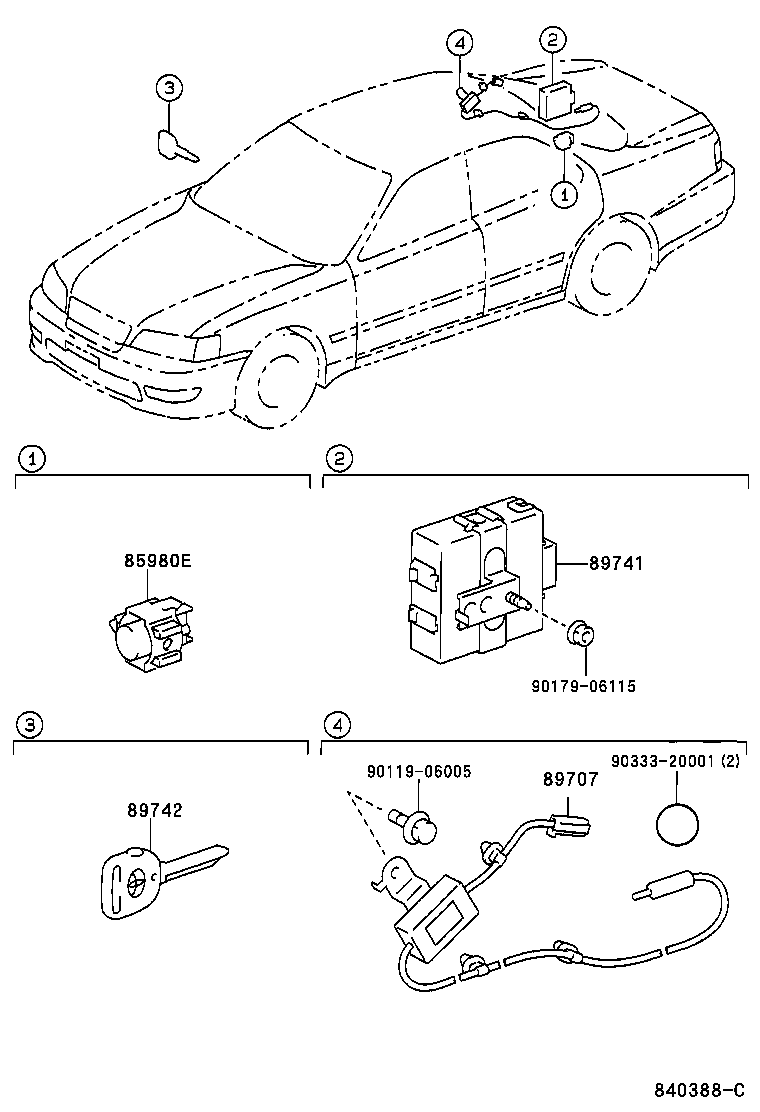

85980E - RELAY ASSY, DOOR CONTROL
85980-22210	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
89707 - CORD SUB-ASSY, WIRELESS DOOR LOCK
89707-22041	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	11/1997 - 06/2001	1
89707-22040	GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 11/1997	1
89741 - RECEIVER, DOOR CONTROL
89741-22060	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
89742 - TRANSMITTER, DOOR CONTROL
89742-22120	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
Common parts
90119-06005
90179-06115
90333-20001

Part #	Description	Period	Qty

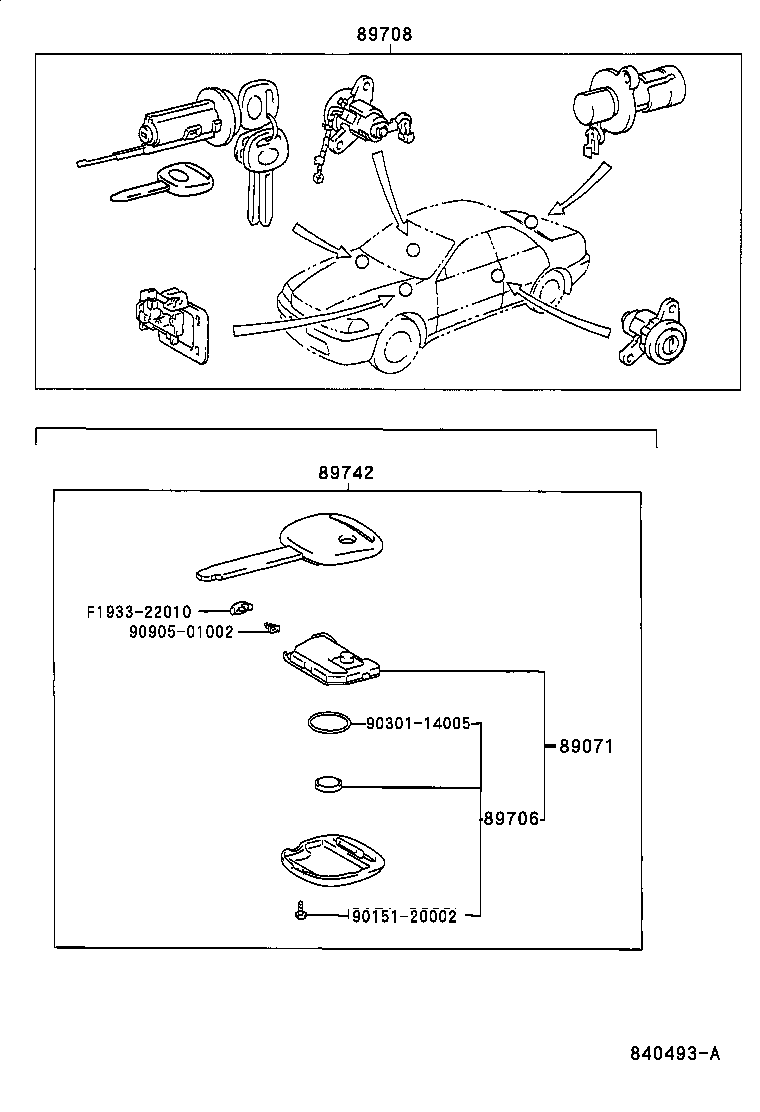

89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-22020	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
89706 - BATTERY SET, TRANSMITTER
89706-22020	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-22170	GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 08/1998	1
89708-22171	GX10#,JZX10#,LX100..EXC,EXCG,ROUG,SLT	08/1998 - 06/2001	1
89742 - TRANSMITTER, DOOR CONTROL
89742-22120	JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT	09/1996 - 06/2001	1
Common parts
90151-20002
90301-14005
90905-01002
F1933-22010

JZX100-CEPQF (1996)
