Toyota Cresta JZX100 ABS & VSC - JDM Part Detective

JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001

Engine 1JZGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9808- )JZX100,101..EXC,EXCG,SLT

Click highlighted areas on diagram

ｱﾘ(VSC)

Part #	Description	Period	Qty
86650K - BUZZER ASSY, SKID CONTROL
86650-22130	JZX100,101..EXC,EXCG,SLT	08/1998 - 06/2001	1
88263A - RELAY, SKID CONTROL
88263-14110	GX10#,JZX100,105,LX100	09/1996 - 06/2001	1
88263-24020	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
88263E - RELAY, SKID CONTROL NO.2
88263-24030	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
89183A - SENSOR, YAWRATE
89180-22010	JZX100,101..EXC,EXCG,SLT	08/1998 - 06/2001	1
89245A - SENSOR, STEERING
89245-30020	JZX100,101..EXC,EXCG,SLT	08/1998 - 02/1999	1
89245-50010	JZX100,101..EXC,EXCG,SLT	02/1999 - 06/2001	1
89246A - DISC, SENSOR STEERING
89246-50010	JZX100,101..EXC,EXCG,SLT	02/1999 - 06/2001	1
89246-30010	JZX100,101..EXC,EXCG,SLT	08/1998 - 02/1999	1
89441A - SENSOR, DECELERATION
89441-30050	JZX100,101..EXC,EXCG,SLT	08/1998 - 06/2001	1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-46010	GX100,JZX100..EXC,EXCG,SLT	08/1998 - 12/1998	1
89510-22040	GX100,JZX100..EXC,EXCG,SLT	12/1998 - 06/2001	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-22340	JZX100..EXC,EXCG,SLT	08/1998 - 06/2001	1
89540-22240	GX100..MTM;JZX100,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
89540-22380	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
89542 - SENSOR, SPEED, FRONT RH
89542-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89543 - SENSOR, SPEED, FRONT LH
89543-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-22020	GX100..MTM;GX105,JZX10#,LX100	09/1996 - 06/2001	1
89546 - SENSOR, SPEED, REAR LH
89546-22020	GX100..MTM;GX105,JZX10#,LX100	09/1996 - 06/2001	1
89634D - BRACKET, SKID CONTROL COMPUTER NO.3
89634-22040	GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT	09/1996 - 06/2001	1
Common parts
90179-06009
90179-06161
90179-08174
91626-B0616
91635-60616
91635-60620
91651-B0616
91651-B0618
G3416-33010

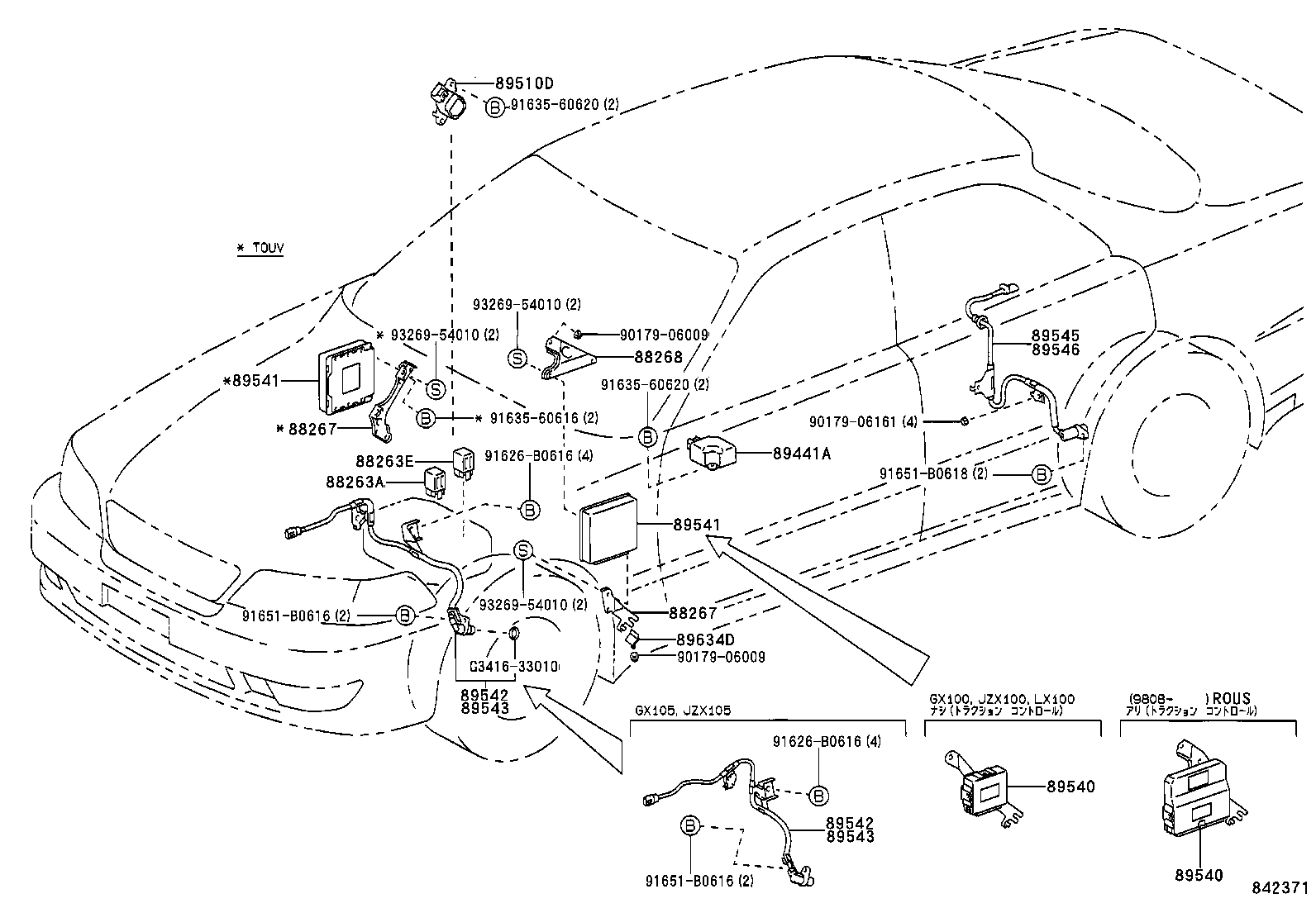

(9609- )GX10#,JZX100,105,LX100

Click highlighted areas on diagram

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-14110	GX10#,JZX100,105,LX100	09/1996 - 06/2001	1
88263-24020	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
88263E - RELAY, SKID CONTROL NO.2
88263-24030	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-22170	JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-22170	JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-22170	JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
89441A - SENSOR, DECELERATION
89441-30050	JZX100,101..EXC,EXCG,SLT	08/1998 - 06/2001	1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-46010	GX100,JZX100..EXC,EXCG,SLT	08/1998 - 12/1998	1
89510-22040	GX100,JZX100..EXC,EXCG,SLT	12/1998 - 06/2001	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-22340	JZX100..EXC,EXCG,SLT	08/1998 - 06/2001	1
89540-22240	GX100..MTM;JZX100,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
89540-22380	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-22340	JZX100..EXC,EXCG,SLT	08/1998 - 06/2001	1
89540-22240	GX100..MTM;JZX100,LX100..EXC,EXCG,ROU,SC,SLT	09/1996 - 08/1998	1
89540-22380	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
89541 - COMPUTER, SKID CONTROL
89541-22180	JZX100..EXC,EXCG,ROU,SLT	09/1996 - 08/1998	1
89541 - COMPUTER, SKID CONTROL
89541-22180	JZX100..EXC,EXCG,ROU,SLT	09/1996 - 08/1998	1
89542 - SENSOR, SPEED, FRONT RH
89542-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89542 - SENSOR, SPEED, FRONT RH
89542-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89543 - SENSOR, SPEED, FRONT LH
89543-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89543 - SENSOR, SPEED, FRONT LH
89543-22100	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-22020	GX100..MTM;GX105,JZX10#,LX100	09/1996 - 06/2001	1
89546 - SENSOR, SPEED, REAR LH
89546-22020	GX100..MTM;GX105,JZX10#,LX100	09/1996 - 06/2001	1
89634D - BRACKET, SKID CONTROL COMPUTER NO.3
89634-22040	GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT	09/1996 - 06/2001	1
Common parts
90179-06009
90179-06161
91626-B0616
91635-60616
91635-60620
91651-B0616
91651-B0618
93269-54010
G3416-33010
