JZX100-CEPQF (1996)
Toyota Cresta

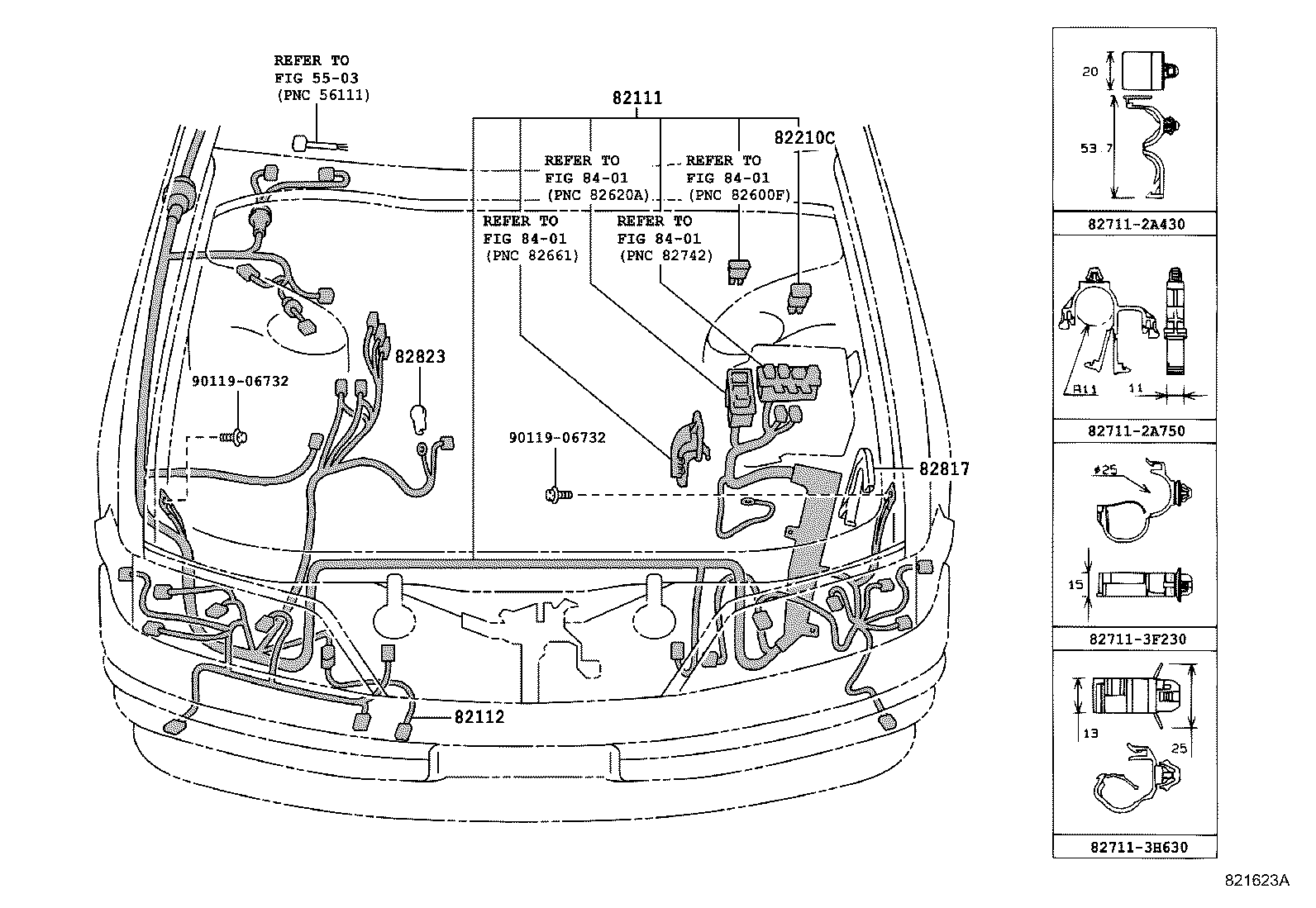

ILLUST NO. 1 OF 8(9609-9808)
ｴﾝｼﾞﾝ ﾙ-ﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2C340 |
JZX100..EXC,SLT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82111-2C360 |
JZX100..EXC,SLT |
1 | ||
| 82111-2C610 |
JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(L) |
1 | ||
| 82111-2C680 |
JZX100..EXC,SLT ｱﾘ(VSC) |
1 | ||
| 82111-2C600 |
JZX100..EXC,SLT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82111-2C620 |
JZX100..EXC,SLT |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08288 |
GX100,JZX10#,LX100 40A,ﾒｽ端子,ｸﾞﾚｲ,ｶｳﾙ |
1 | ||
| 90982-08283 |
GX100,JZX10# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08287 |
GX10#,JZX10#,LX100 30A,ﾒｽ端子,ｵﾚﾝｼﾞ |
1 | ||
| 90982-08202 |
GX10#,JZX10#,LX100 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
GX100,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
GX100,JZX10#,LX100 40A,ﾒｽ端子,緑,ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 90982-08287 |
GX100,JZX10#,LX100 30A,ﾒｽ端子,ｵﾚﾝｼﾞ,ｶｳﾙ |
1 | ||
| 90982-08289 |
GX10#,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
GX100,JZX100,LX100..EXC,SC,SLT 100A,ｵｽ端子,青 |
1 | ||
| 90982-08254 |
JZX100,101 120A,ｵｽ端子,白,TAIHEIYO |
1 | ||
| 90982-08254 |
JZX10# 120A,ｵｽ端子,白,TAIHEIYO |
1 | ||
| 90982-08289 |
GX100,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
JZX100,101 120A,ｵｽ端子,白,YAZAKI |
1 | ||
| 90982-08274 |
JZX10# 120A,ｵｽ端子,白,YAZAKI |
1 | ||
| 90982-08283 |
GX10#,JZX10#,LX100 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
GX10#,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08288 |
GX10#,JZX10#,LX100 40A,ﾒｽ端子,ｸﾞﾚｲ |
1 | ||
| 90982-08283 |
GX100,JZX10#,LX100 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
GX10#,JZX10#,LX100 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GX10#,JZX100,105,LX100..EXC,ROU,SLT 100A,ｵｽ端子,青 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2A300 |
GX10#,JZX10#,LX100 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-24030 |
JZX10# |
1 | ||
| Common parts | ||||
| 82711-2A430 | ||||
| 82711-2A750 | ||||
| 82711-3F230 | ||||
| 82711-3H630 | ||||
| 90119-06732 | ||||
| Linked diagrams | ||||
| 5503 | ||||
| 8401 | ||||

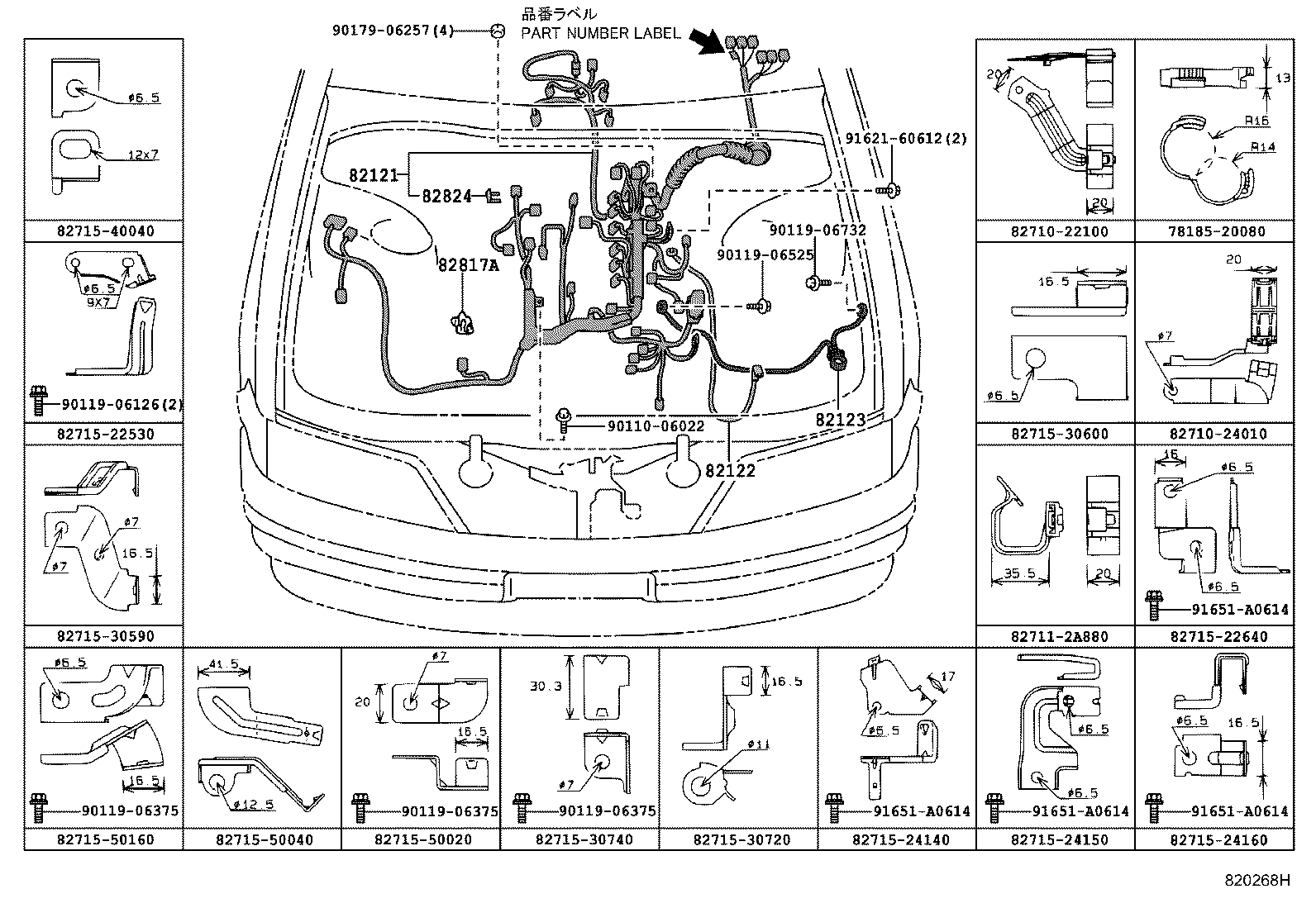

ILLUST NO. 2 OF 8(9609- )JZX10#..EXC,EXCG,ROU,ROUS,SLT
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2A450 |
JZX100..EXC,EXCG,ROU,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A450 |
1 | ||
| 82121-2A550 |
JZX100..EXC,EXCG,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A550 |
1 | ||
| 82121-2A451 |
JZX100..EXC,EXCG,ROU,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A451 |
1 | ||
| 82121-2A460 |
JZX100..EXC,EXCG,ROU,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A460 |
1 | ||
| 82121-2A461 |
JZX100..EXC,EXCG,ROU,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A461 |
1 | ||
| 82121-2A560 |
JZX100..EXC,EXCG,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A560 |
1 | ||
| 82121-2A551 |
JZX100..EXC,EXCG,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A551 |
1 | ||
| 82121-2A561 |
JZX100..EXC,EXCG,SLT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82121-2A561 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22410 |
JZX10#..EXC,EXCG,ROU,ROUS,SLT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82122-22440 |
JZX10#..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-22180 |
JZX100..EXC,EXCG,ROU,ROUS,SLT ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L) |
1 | ||
| 82123-22170 |
JZX100,101 ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 82710-22100 | ||||
| 82710-24010 | ||||
| 82711-2A880 | ||||
| 82715-22530 | ||||
| 82715-22640 | ||||
| 82715-24140 | ||||
| 82715-24150 | ||||
| 82715-24160 | ||||
| 82715-30590 | ||||
| 82715-30600 | ||||
| 82715-30720 | ||||
| 82715-30740 | ||||
| 82715-40040 | ||||
| 82715-50020 | ||||
| 82715-50040 | ||||
| 82715-50160 | ||||
| 90110-06022 | ||||
| 90119-06126 | ||||
| 90119-06375 | ||||
| 90119-06525 | ||||
| 90119-06732 | ||||
| 90179-06257 | ||||
| 91621-60612 | ||||
| 91651-A0614 | ||||

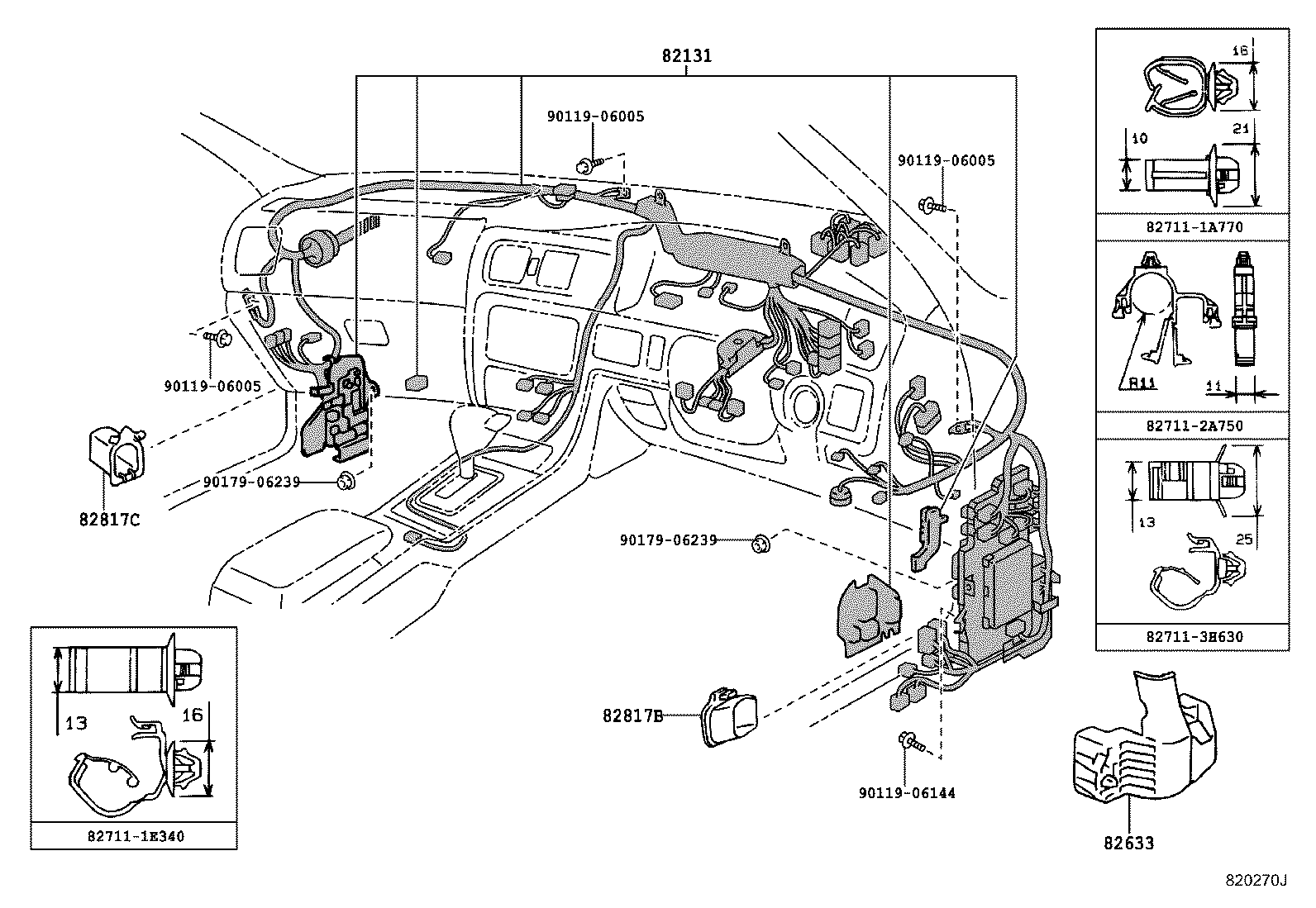

ILLUST NO. 3 OF 8(9609- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-22350 |
JZX100..EXC,ROU,SLT ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82135-22370 |
JZX100..EXC,ROU,SLT |
1 | ||
| 82135-22360 |
JZX100..EXC,ROU,SLT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82135-22351 |
JZX100..EXC,SLT ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82135-22361 |
JZX100..EXC,SLT ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82135-22371 |
JZX100..EXC,SLT |
1 | ||
| 82135-22352 |
JZX100..EXC,SLT ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82135-22362 |
JZX100..EXC,SLT ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82135-22372 |
JZX100..EXC,SLT |
1 | ||
| 82135-22540 |
JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(L) |
1 | ||
| 82135-22530 |
JZX100..EXC,SLT ｱﾘ(VSC) |
1 | ||
| 82135-22540 |
JZX100..EXC,SLT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82135-22550 |
JZX100..EXC,SLT |
1 | ||
| 82633 - HOLDER, FRONT PILLAR BLOCK, RH | ||||
| 82633-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2A310 |
GX10#,JZX10#,LX100 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2A700 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E340 | ||||
| 82711-2A750 | ||||
| 82711-3H630 | ||||
| 90119-06005 | ||||
| 90119-06144 | ||||
| 90179-06239 | ||||
ILLUST NO. 4 OF 8(9609- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2A400 |
GX100,JZX10#..ATM..(EXC,EXCG,SLT) ｱﾘ(7 ｽﾋﾟ-ｶ);ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A340 |
JZX100..SLT ｱﾘ(6 ｽﾋﾟ-ｶ);ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 82141-2A401 |
GX100,JZX10#..ATM..(EXC,EXCG,SLT) ｱﾘ(7 ｽﾋﾟ-ｶ);ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A370 |
JZX100..SLT;GX100,JZX105,LX100..ATM..(EXC,SLT) "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ;ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 82141-2A360 |
GX100,JZX100,105,LX100..ATM..(EXC,SLT) ｱﾘ(7 ｽﾋﾟ-ｶ);ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 82141-2A350 |
JZX100,105,LX100..EXC,SC,SLT ｱﾘ(6 ｽﾋﾟ-ｶ);ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ;ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82141-2A410 |
GX100..ATM;JZX100..SLT "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ;ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A380 |
GX100,JZX100,105..ATM..(EXC,SLT) ｱﾘ(6 ｽﾋﾟ-ｶ);ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A550 |
JZX100..SLT ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82141-2A560 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) & "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" |
1 | ||
| 82141-2A570 |
GX10#,JZX100,105..EXC,SLT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A370 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 82141-2A540 |
JZX100..SLT;GX100..EXC,SLT |
1 | ||
| 82141-2A690 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 82141-2A560 |
GX10#,JZX100,105,LX100..EXC,SLT "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82141-2A580 |
GX10#,JZX100,105..EXC,SLT "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ;ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-2A690 |
GX100,JZX100..SLT ｱﾘ(6 ｽﾋﾟ-ｶ) |
1 | ||
| Common parts | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 8(9609- )
ﾙ-ﾌ & ﾄﾞｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-22870 |
GX100,JZX100,105,LX100..EXC,EXCG,ROU,ROUG,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151-22870 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151-22880 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-22790 |
GX100,JZX100,105,LX100..EXC,EXCG,ROU,ROUG,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152-22800 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82152-22790 |
GX10#,JZX100,105,LX100..EXC,ROU,ROUG,ROUS,SLT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-22210 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-22210 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||

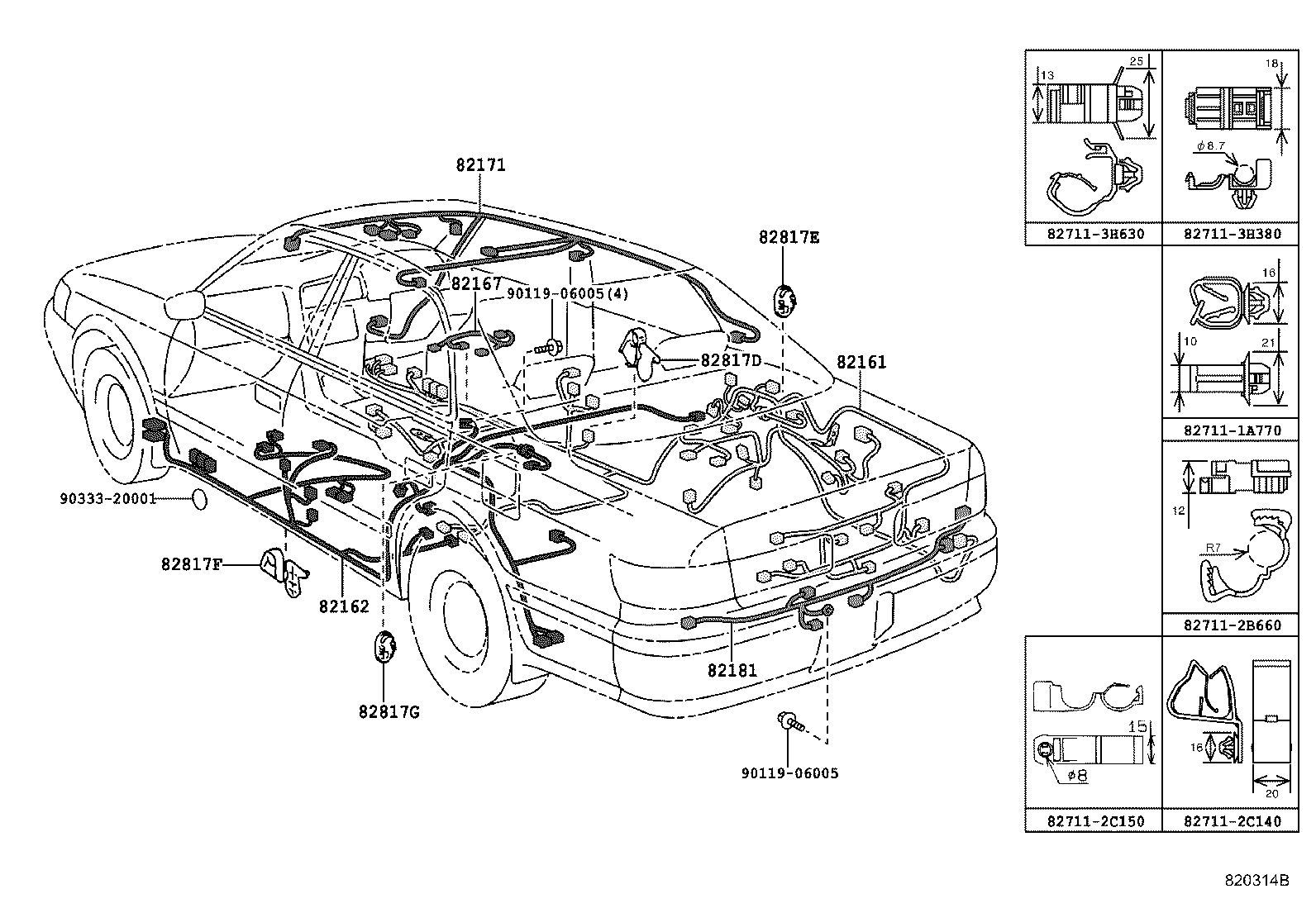

ILLUST NO. 6 OF 8(9609- )
ｼ-ﾄ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞﾙ-ﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2A871 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SLT ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82161-2A870 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SLT ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82161-2C060 |
GX100..MTM;JZX100,105,LX100..EXC,SLT |
1 | ||
| 82161-2C290 |
JZX100,105..EXC,SLT |
1 | ||
| 82161-2C061 |
GX100..MTM;JZX100,105,LX100..EXC,SLT |
1 | ||
| 82161-2A880 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SLT ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2A870 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 82161-2C310 |
JZX10# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2A881 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SLT ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2C340 |
JZX10# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-2C350 |
JZX10# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-2A171 |
GX100,JZX100,105,LX100..EXC,ROU,SC,SLT "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82162-2A181 |
JZX100..ROU,SLT;GX100,JZX105,LX100..EXC,SLT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82162-2A171 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 82162-2A230 |
GX100,JZX100,105,LX100..EXC,EXCG,ROU,ROUG,SLT ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 82162-2A260 |
JZX100 "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82162-2A280 |
JZX100..EXC,ROUG,ROUS,SLT |
1 | ||
| 82162-2A180 |
JZX100..ROU,SLT;GX100,JZX105,LX100..EXC,SLT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82162-2A240 |
JZX100..EXC,EXCG,SLT ｱﾘ(VSC) & "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ |
1 | ||
| 82162-2A250 |
JZX100..EXC,EXCG,SLT ｱﾘ(VSC) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-22181 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 82167-22180 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22690 |
JZX10#..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ);ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ) |
1 | ||
| 82171-22680 |
JZX10#..EXC,EXCG,SLT ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-22340 |
GX10#,JZX10#,LX100 |
1 | ||
| 82181-22320 |
GX100,JZX10#,LX100 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82181-22310 |
GX100,JZX10#,LX100 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-2A450 |
GX10#,JZX10#,LX100 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2A470 |
GX10#,JZX10#,LX100 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-2A460 |
GX10#,JZX10#,LX100 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-2A470 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-2B660 | ||||
| 82711-2C140 | ||||
| 82711-2C150 | ||||
| 82711-3H380 | ||||
| 82711-3H630 | ||||
| 90119-06005 | ||||
| 90333-20001 | ||||
ILLUST NO. 7 OF 8(9609- )JZX10#
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZX10# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07356 |
GX100,JZX10# |
1 | ||
| 90980-07356 |
JZX10# |
1 | ||
| Common parts | ||||
| 90119-06732 | ||||
| 91611-60812 | ||||
| 91635-60616 | ||||
ILLUST NO. 1 OF 8(9808- )
ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2C340 |
JZX100..EXC,SLT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82111-2C360 |
JZX100..EXC,SLT |
1 | ||
| 82111-2C610 |
JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(L) |
1 | ||
| 82111-2C680 |
JZX100..EXC,SLT ｱﾘ(VSC) |
1 | ||
| 82111-2C600 |
JZX100..EXC,SLT ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82111-2C620 |
JZX100..EXC,SLT |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08288 |
GX100,JZX10#,LX100 40A,ﾒｽ端子,ｸﾞﾚｲ,ｶｳﾙ |
1 | ||
| 90982-08283 |
GX100,JZX10# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08287 |
GX10#,JZX10#,LX100 30A,ﾒｽ端子,ｵﾚﾝｼﾞ |
1 | ||
| 90982-08202 |
GX10#,JZX10#,LX100 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
GX100,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08284 |
GX100,JZX10#,LX100 40A,ﾒｽ端子,緑,ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 90982-08287 |
GX100,JZX10#,LX100 30A,ﾒｽ端子,ｵﾚﾝｼﾞ,ｶｳﾙ |
1 | ||
| 90982-08289 |
GX10#,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
GX100,JZX100,LX100..EXC,SC,SLT 100A,ｵｽ端子,青 |
1 | ||
| 90982-08254 |
JZX100,101 120A,ｵｽ端子,白,TAIHEIYO |
1 | ||
| 90982-08254 |
JZX10# 120A,ｵｽ端子,白,TAIHEIYO |
1 | ||
| 90982-08289 |
GX100,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
JZX100,101 120A,ｵｽ端子,白,YAZAKI |
1 | ||
| 90982-08274 |
JZX10# 120A,ｵｽ端子,白,YAZAKI |
1 | ||
| 90982-08283 |
GX10#,JZX10#,LX100 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08285 |
GX10#,JZX10#,LX100 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08288 |
GX10#,JZX10#,LX100 40A,ﾒｽ端子,ｸﾞﾚｲ |
1 | ||
| 90982-08283 |
GX100,JZX10#,LX100 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
GX10#,JZX10#,LX100 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
GX10#,JZX100,105,LX100..EXC,ROU,SLT 100A,ｵｽ端子,青 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2A300 |
GX10#,JZX10#,LX100 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-24030 |
JZX10# |
1 | ||
| Common parts | ||||
| 82711-2A430 | ||||
| 82711-2A750 | ||||
| 82711-3F230 | ||||
| 82711-3H630 | ||||
| 90119-06732 | ||||
| Linked diagrams | ||||
| 5503 | ||||
| 8401 | ||||

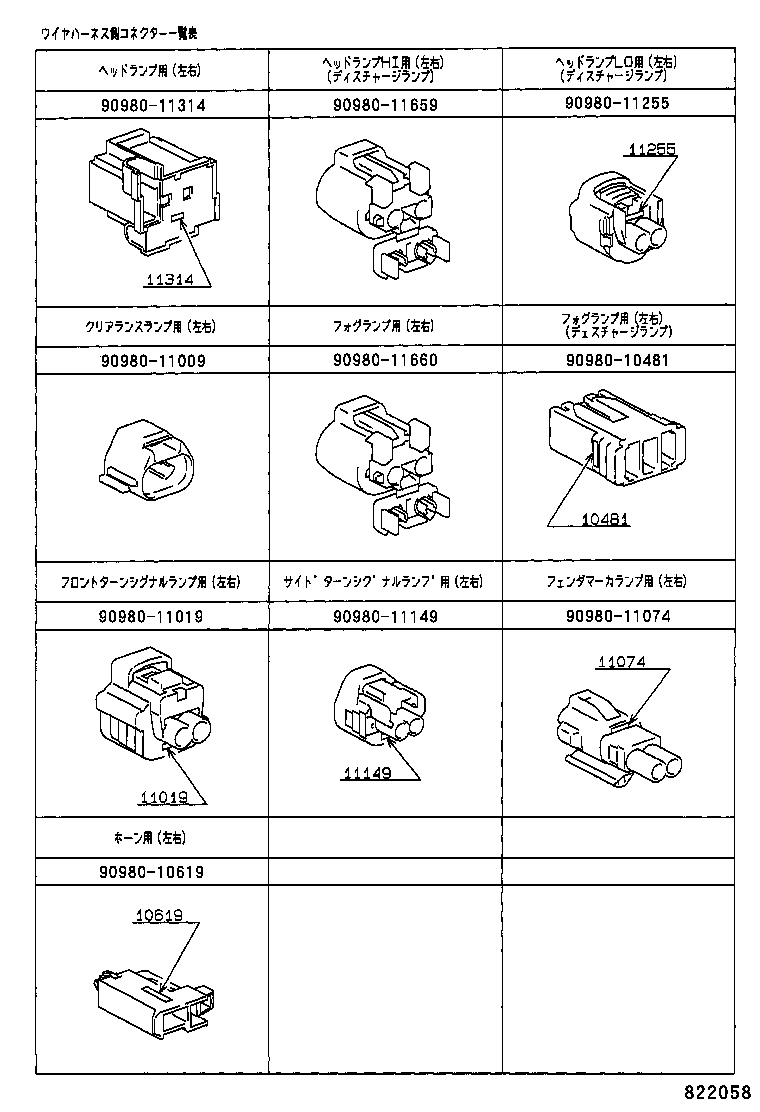

ILLUST NO. 8 OF 8(9609- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-11009 | ||||
| 90980-11019 | ||||
| 90980-11074 | ||||
| 90980-11149 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
