JZX100-CEPQF (1996)
Toyota Cresta
(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81205-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 81206A - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-22010 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81310-22010 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 右側 |
1 | ||
| 81230-22010 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 左側 |
1 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-22010 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 左側 |
1 | ||
| 81311-22010 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 右側 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-12050 |
GX10#,JZX10#,LX100 12V 5W |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-12050 |
GX10#,JZX10#,LX100 12V 5W |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-22030E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 81250-22030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-30120 |
GX10#,JZX10#,LX100 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22160 |
GX10#,JZX10#,LX100 |
1 | ||
| 81260-33030 |
GX100,JZX10#,LX100 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-22150G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 81260-22170E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ORCHID,TRIM4# |
1 | ||
| 81260-22150E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 81260-22170G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),SAGE,TRIM6# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-22150G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 81260-22170E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ORCHID,TRIM4# |
1 | ||
| 81260-22150E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 81260-22170G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),SAGE,TRIM6# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 90981-12005 |
GX10#,JZX10#,LX100 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 90981-12005 |
GX10#,JZX10#,LX100 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 90981-12005 |
GX10#,JZX10#,LX100 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-20220G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),SAGE,TRIM6# |
1 | ||
| 81261-20220E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ORCHID,TRIM4# |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-22030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 81290-22030E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81251-30120 |
GX10#,JZX10#,LX100 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30090 |
GX10#,JZX10#,LX100 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
GX10#,JZX10#,LX100 12V 3.8W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81350-50070G1 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S),SAGE,TRIM6# |
1 | ||
| 81340-50070E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 81350-50070G1 |
JZX10#..EXC,EXCG,SLT SAGE,TRIM6#,右側 |
1 | ||
| 81340-50070G1 |
JZX10#..EXC,EXCG,SLT SAGE,TRIM6#,左側 |
1 | ||
| 81350-50070E1 |
JZX10#..EXC,EXCG,SLT ORCHID,TRIM4#,右側 |
1 | ||
| 81340-50070E1 |
JZX10#..EXC,EXCG,SLT ORCHID,TRIM4#,左側 |
1 | ||
| 81340-50070G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT SAGE,TRIM6#,左側 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
JZX100,101..EXC,EXCG,SLT 12V 3W |
2 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-50060 |
JZX100,101..EXC,EXCG,SLT |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-22060 |
GX100,JZX10#,LX100 |
1 | ||
| 81870-22060 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
GX100,JZX10#,LX100 14V 1.4W |
1 | ||
| 90981-11014 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 14V 1.4W |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
GX100,JZX10#,LX100 |
1 | ||
| 84998-10070 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90467-06132 | ||||
| 93219-44008 | ||||
| 93540-54016 | ||||

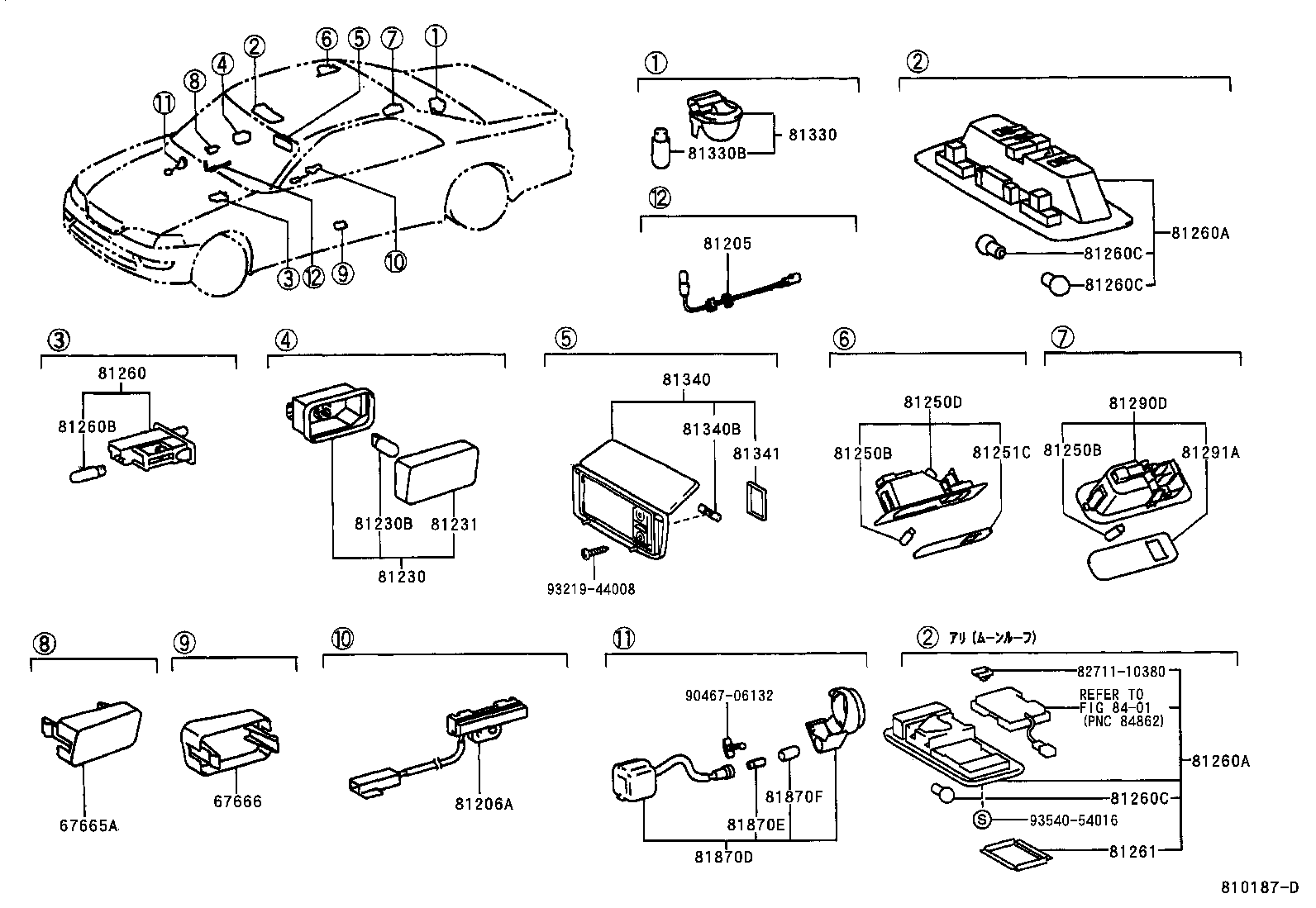

| Linked diagrams | ||||
| 8401 | ||||
