JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

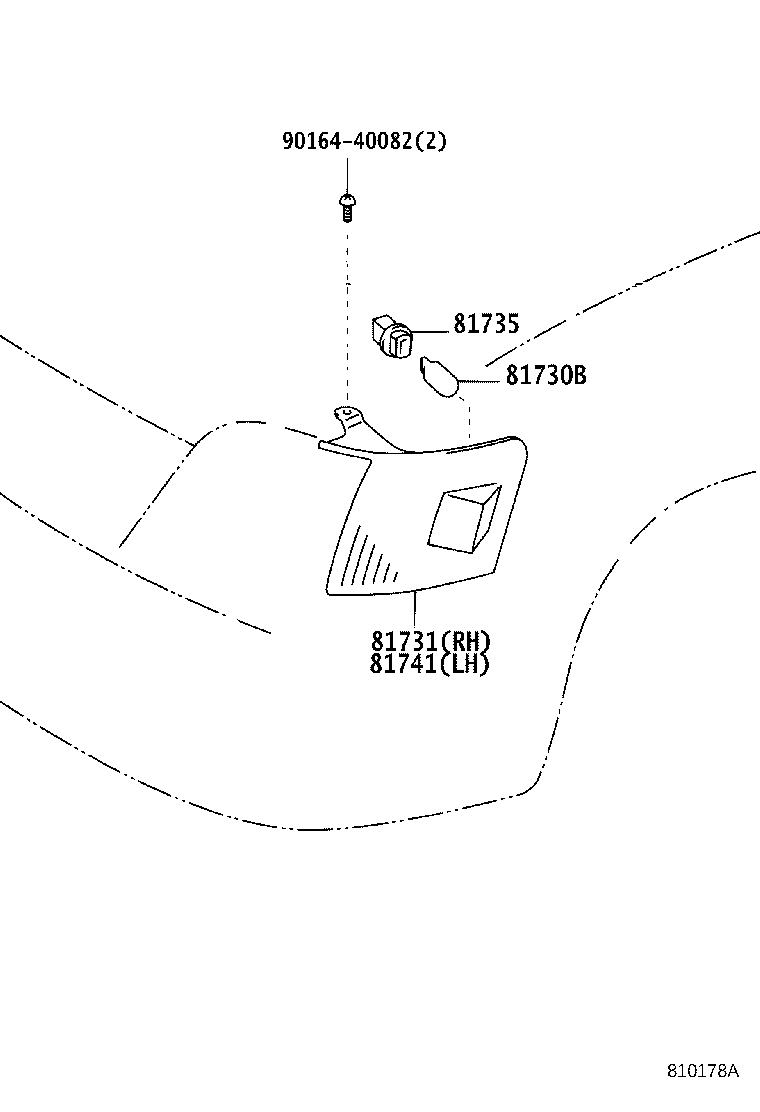

Click highlighted areas on diagram

diagram 81730B 81731 81735 81741 9016440082
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

GX10#,JZX10#,LX100

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-22130

GX100,JZX10#,LX100

ｽｰﾊﾟｰﾙｰｾﾝﾄ L ﾅﾋﾞﾊﾟｯｹｰｼﾞ*(A), *(C)

 1
81731-22140

GX100,JZX100..ATM..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S)

 1
81731-22160

GX10#,JZX10#,LX100

 1
81731-22130

GX100,JZX10#,LX100

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81615-12590

GX10#,JZX10#,LX100

 2
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-22160

GX10#,JZX10#,LX100

 1
81741-22140

GX100,JZX100..ATM..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S)

 1
81741-22130

GX100,JZX10#,LX100

ｽｰﾊﾟｰﾙｰｾﾝﾄ L ﾅﾋﾞﾊﾟｯｹｰｼﾞ*(A), *(C)

 1
81741-22130

GX100,JZX10#,LX100

 1
Common parts
90164-40082
