JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

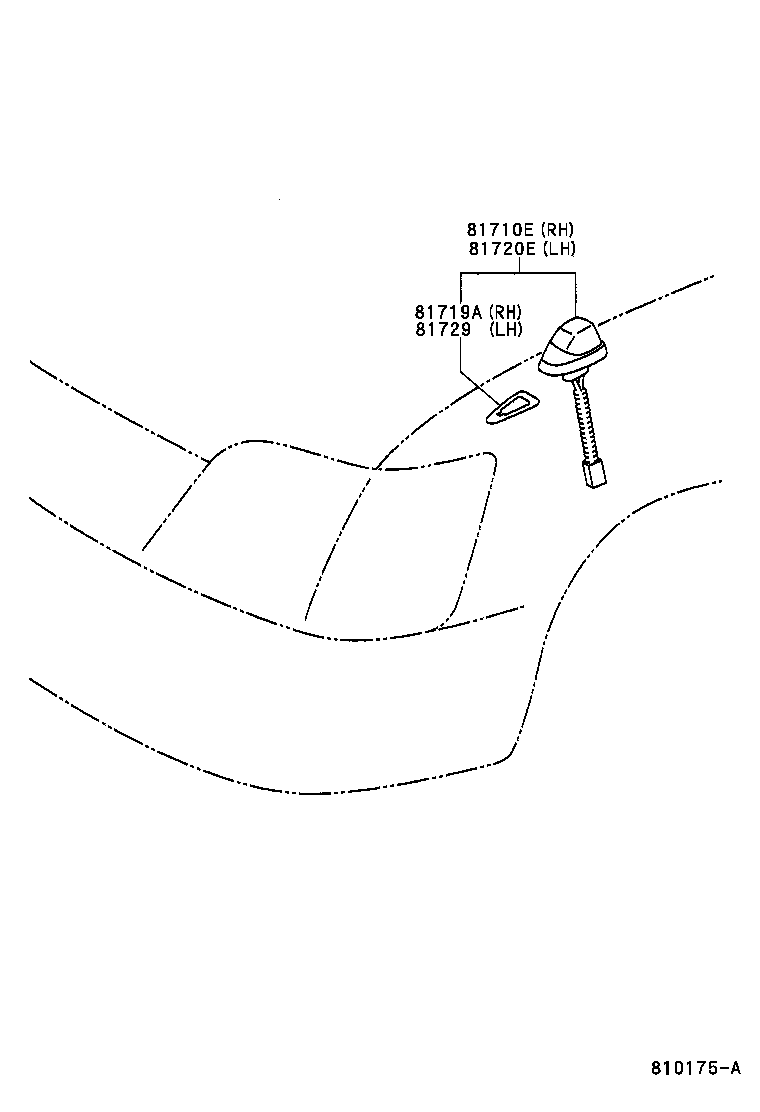

Click highlighted areas on diagram

diagram 81710E 81719A 81720E 81729
Part # Description Qty Price
81710E - MARKER ASSY, FENDER, RH
81710-22090

GX10#,JZX10#,LX100

 1
81719A - PACKING, FENDER MARKER, RH
81719-22090

GX10#,JZX10#,LX100

 1
81720E - MARKER ASSY, FENDER, LH
81720-22080

GX10#,JZX10#,LX100

 1
81729 - PACKING, FENDER MARKER, LH
81729-22080

GX10#,JZX10#,LX100

 1
