JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

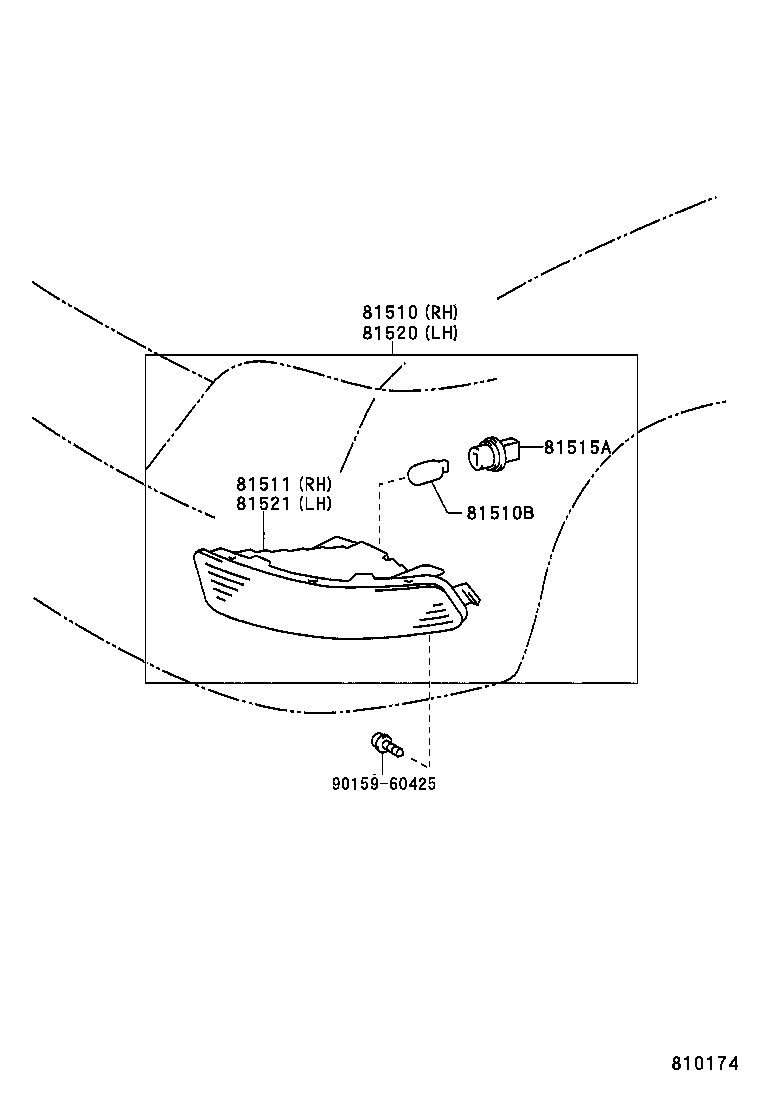

(9609-9808)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 |
GX10#,JZX10#,LX100 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-22490 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81511-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99128 |
GX10#,JZX10#,LX100 |
2 | ||
| 90075-99080 |
GX100,JZX10#,LX100 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81521-22490 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| Common parts | ||||
| 90159-60425 | ||||

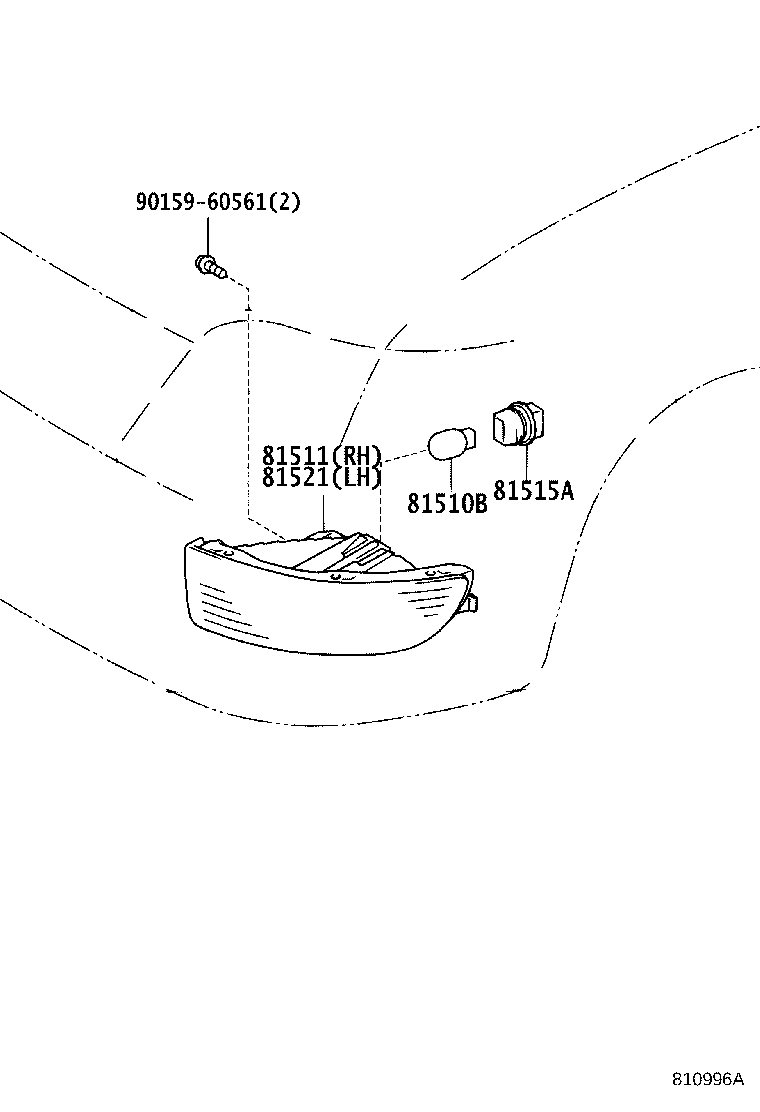

(9808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 |
GX10#,JZX10#,LX100 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-22490 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81511-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99128 |
GX10#,JZX10#,LX100 |
2 | ||
| 90075-99080 |
GX100,JZX10#,LX100 |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-22420 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81521-22490 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| Common parts | ||||
| 90159-60561 | ||||
