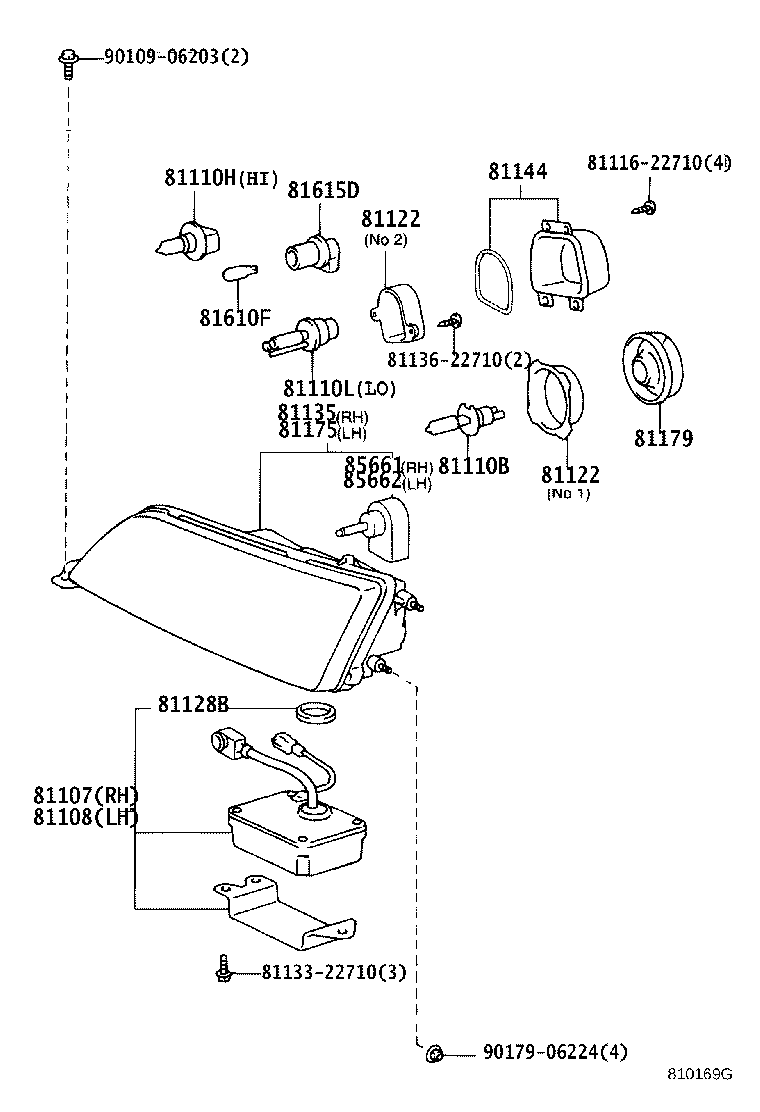

JZX100-CEPQF (1996)
Toyota Cresta
(9609- )GX100..EXC,ROU ; (9609- )JZX100..ROU,ROUG,ROUS ; (9901-0106)GX105 ; (
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81108-22712 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81108-22712 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13039 |
GX10#,JZX100..SLT 12V 55W,ﾊﾛｹﾞﾝ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 90981-22002 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT 12V 60/55W,*HAL *WH |
2 | ||
| 81110H - BULB, HEADLAMP, NO.3 | ||||
| 90080-81041 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20002 |
GX10#,JZX100..SLT 85V 35W,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81122 - HOLDER, HEADLAMP | ||||
| 81122-22730 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),N0.1 |
2 | ||
| 81122-22710 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),NO.2 |
2 | ||
| 81122 - HOLDER, HEADLAMP | ||||
| 81122-22730 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),N0.1 |
2 | ||
| 81122-22710 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),NO.2 |
2 | ||
| 81128B - PACKING, HEADLAMP (FOR BALLAST) | ||||
| 81134-22710 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-22701 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81130-22740 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81130-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81130-22780 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81130-22700 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81130-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 81130-22790 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-22730 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-22700 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81170-22740 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81170-22701 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81170-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 81170-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81170-22790 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81170-22780 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-22730 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GX10#,JZX10#,LX100 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60009 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-22030 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-22030 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| Common parts | ||||
| 81116-22710 | ||||
| 81133-22710 | ||||
| 81136-22710 | ||||
| 90109-06203 | ||||
| 90179-06224 | ||||

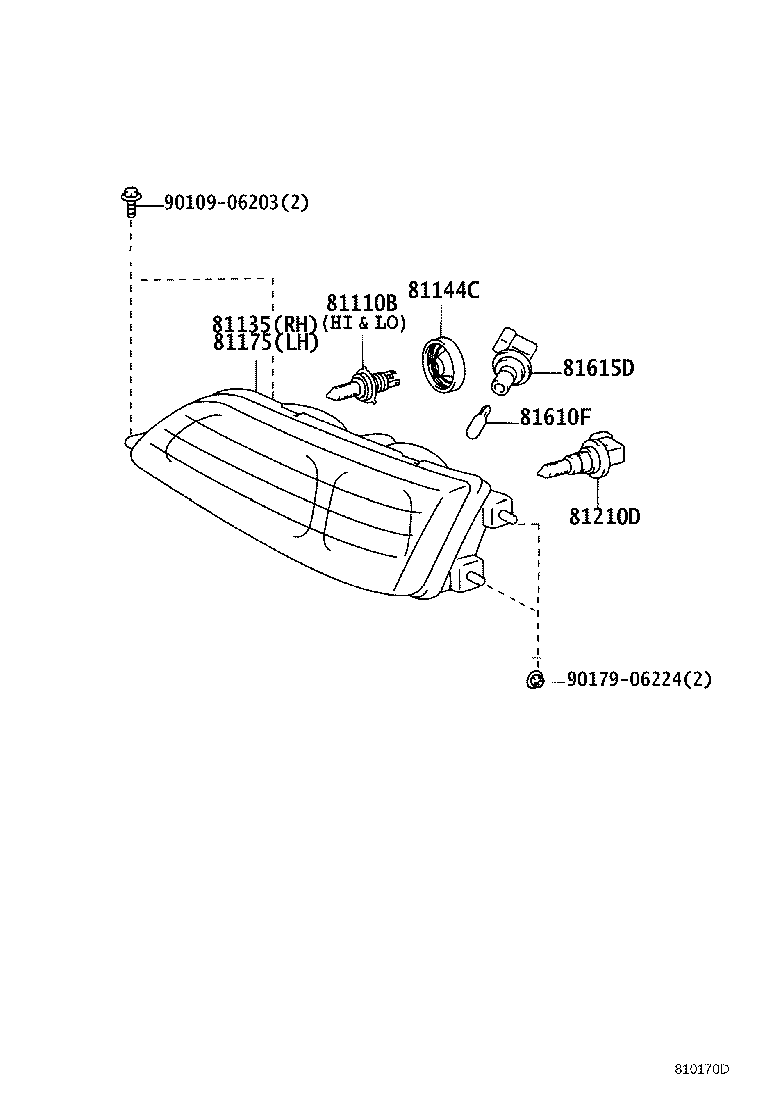

(9609- )EXC,EXCG,SC,SLT
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13039 |
GX10#,JZX100..SLT 12V 55W,ﾊﾛｹﾞﾝ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 90981-22002 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-22701 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81130-22740 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81130-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81130-22780 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81130-22700 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81130-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 81130-22790 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81139-1E340 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT |
2 | ||
| 90075-60009 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-22700 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81170-22740 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81170-22701 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 81170-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 81170-22741 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) |
1 | ||
| 81170-22790 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 81170-22780 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90080-81040 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT 12V 51W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GX10#,JZX10#,LX100 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60009 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90179-06224 | ||||
