JZX100-CEPQF (1996)
Toyota Cresta

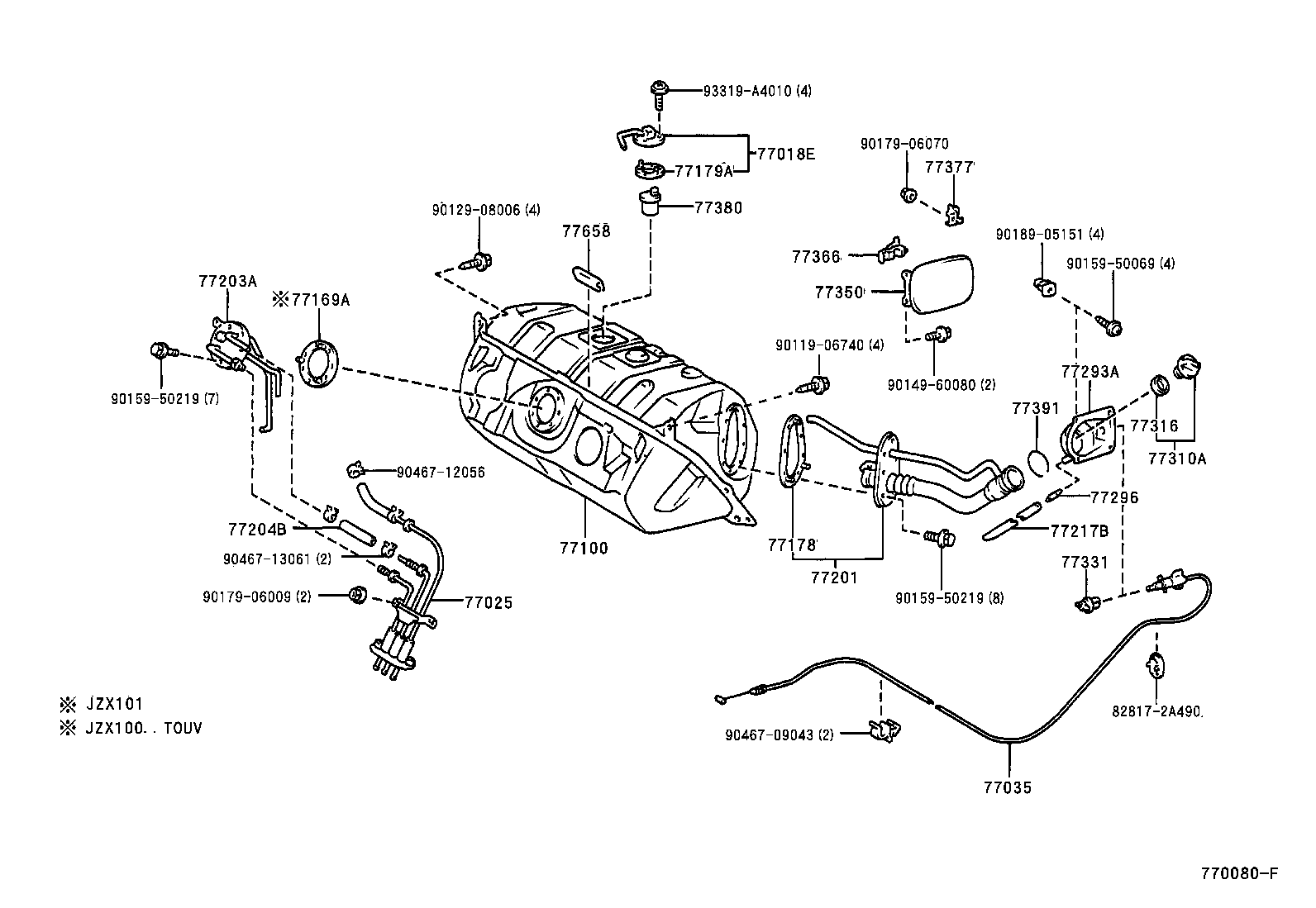

ILLUST NO. 1 OF 2(9609- )GX10#,JZX10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-22080 |
JZX10# |
1 | ||
| 77025-22080 |
GX100,JZX10# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22220 |
GX10#,JZX10#,LX100 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22500 |
GX10#,JZX10#,LX100 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
GX10#,JZX10#,LX100 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
GX10#,JZX10#,LX100 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22340 |
GX10#,JZX10#,LX100 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-22070 |
GX100,JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 77203-22070 |
JZX100,105..EXC,EXCG,ROUS,SLT |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95334-08008 |
JZX10# |
1 | ||
| 95334-08008 |
GX100,JZX10# |
1 | ||
| 77217B - HOSE, FUEL TANK INLET | ||||
| 90446-09015 |
GX10#,JZX10#,LX100 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22080 |
GX10#,JZX10#,LX100 |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GX100,JZX10# |
1 | ||
| 77310-48010 |
GX10#,JZX10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GX10#,JZX10#,LX100 |
1 | ||
| 77331 - BRACKET, FUEL LID LOCK CONTROL | ||||
| 77331-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GX10#,JZX10#,LX100 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 82817-2A490 | ||||
| 90119-06740 | ||||
| 90129-08006 | ||||
| 90149-60080 | ||||
| 90159-50069 | ||||
| 90159-50219 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-05151 | ||||
| 90467-09043 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 93319-A4010 | ||||

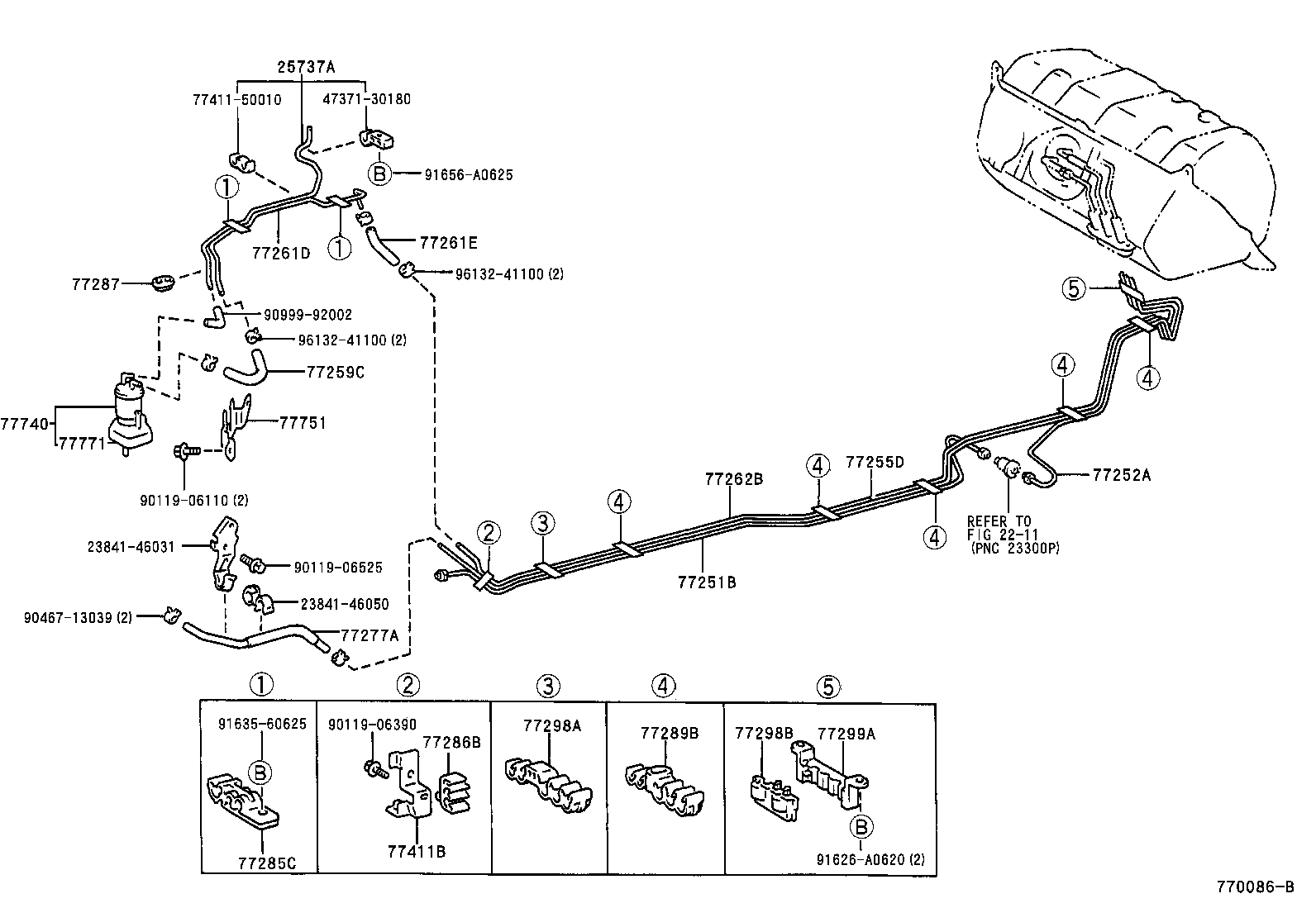

ILLUST NO. 2 OF 2(9609- )JZX100,101..EXC,EXCG,ROU,ROUS,SLT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25737A - FUEL TUBE, NO.1 | ||||
| 25737-46060 |
1GFE,1JZ#,2JZGE..GX100,JZX100,101 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22490 |
GX100,JZX100,101 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-22070 |
GX10#,JZX10# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-22390 |
GX100,JZX100,101 |
1 | ||
| 77255-22390 |
JZX100,101 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-30140 |
GX10#,JZX10# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-30170 |
GX100,JZX100,101 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GX10#,JZX10# *H,L=120 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-22050 |
GX10#,JZX10# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-46170 |
JZX100,101..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 23271-46171 |
JZX100,101..EXC,EXCG,ROUS,SLT |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-22020 |
GX100,JZX100,101 |
2 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-30060 |
GX10#,JZX10#,LX100 |
1 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-22010 |
GX10#,JZX10# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30040 |
GX100,JZX100,101,LX100 |
5 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30090 |
GX10#,JZX10#,LX100 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30110 |
GX10#,JZX10# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-30020 |
GX10#,JZX10# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
GX10#,JZX10# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22440 |
JZX10# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-30080 |
GX10#,JZX10# |
1 | ||
| 77771 - TANK, CHARCOAL CANISTER | ||||
| 77771-22040 |
JZX10# |
1 | ||
| Common parts | ||||
| 23841-46031 | ||||
| 23841-46050 | ||||
| 47371-30180 | ||||
| 77411-50010 | ||||
| 90119-06110 | ||||
| 90119-06390 | ||||
| 90119-06525 | ||||
| 90467-13039 | ||||
| 90999-92002 | ||||
| 91626-A0620 | ||||
| 91635-60625 | ||||
| 91656-A0625 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
