JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

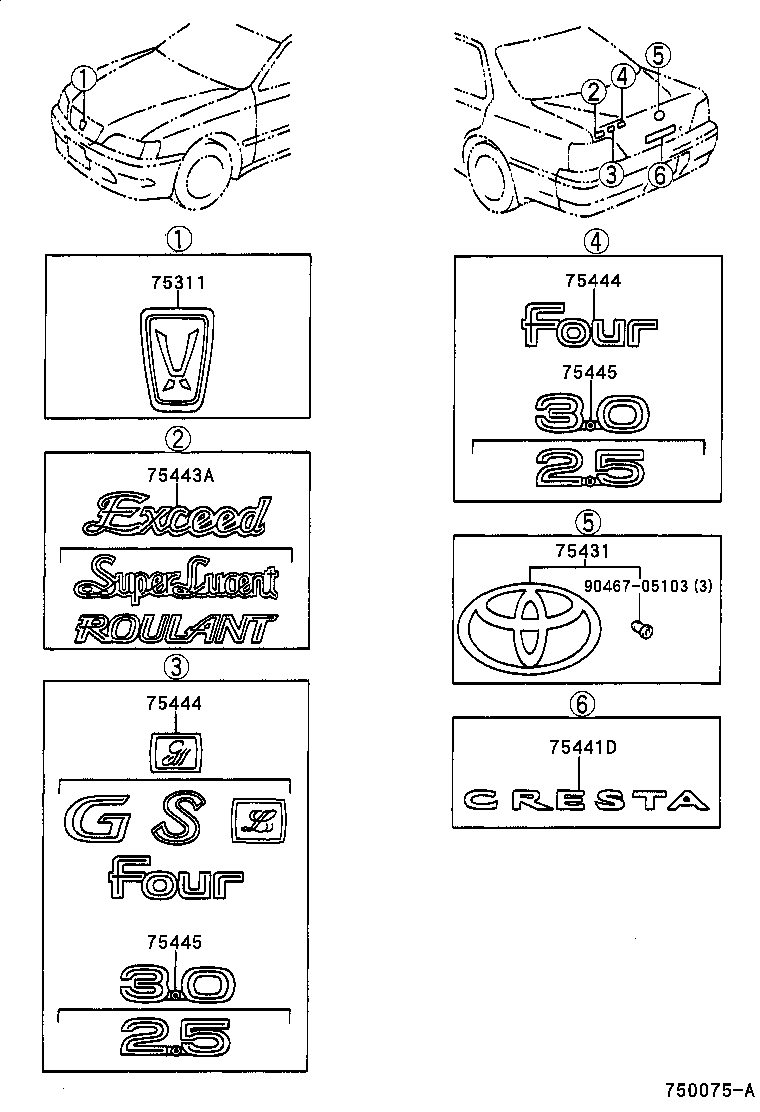

Click highlighted areas on diagram

diagram 75311 75431 75441D 75443A 75444 75444 75445 75445 9046705103
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-22570

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

 1
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75431-22010

GX10#,JZX10#,LX100

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-22220

GX10#,JZX10#,LX100

CRESTA

 1
75441-22210

GX100,JZX10#,LX100

CRESTA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-2A070

GX10#,JZX100,105,LX100..SLT

SUPER LUCENT

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75443-2A120

GX100,JZX100..ATM..SLT

L,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S), *(L);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C)

 1
75443-2A120

GX100,JZX100..ATM..SLT

L,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S), *(L)

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75443-2A120

GX100,JZX100..ATM..SLT

L,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S), *(L);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C)

 1
75443-2A120

GX100,JZX100..ATM..SLT

L,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S), *(L)

 1
75445 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
75444-22510

JZX100..EXC,EXCG,SLT

2.5,ｺﾞｰﾙﾄﾞ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(T)

 1
75444-22430

JZX100..EXC,EXCG,SLT

2.5

 1
75445 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
75444-22510

JZX100..EXC,EXCG,SLT

2.5,ｺﾞｰﾙﾄﾞ,ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(T)

 1
75444-22430

JZX100..EXC,EXCG,SLT

2.5

 1
Common parts
90467-05103
