JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

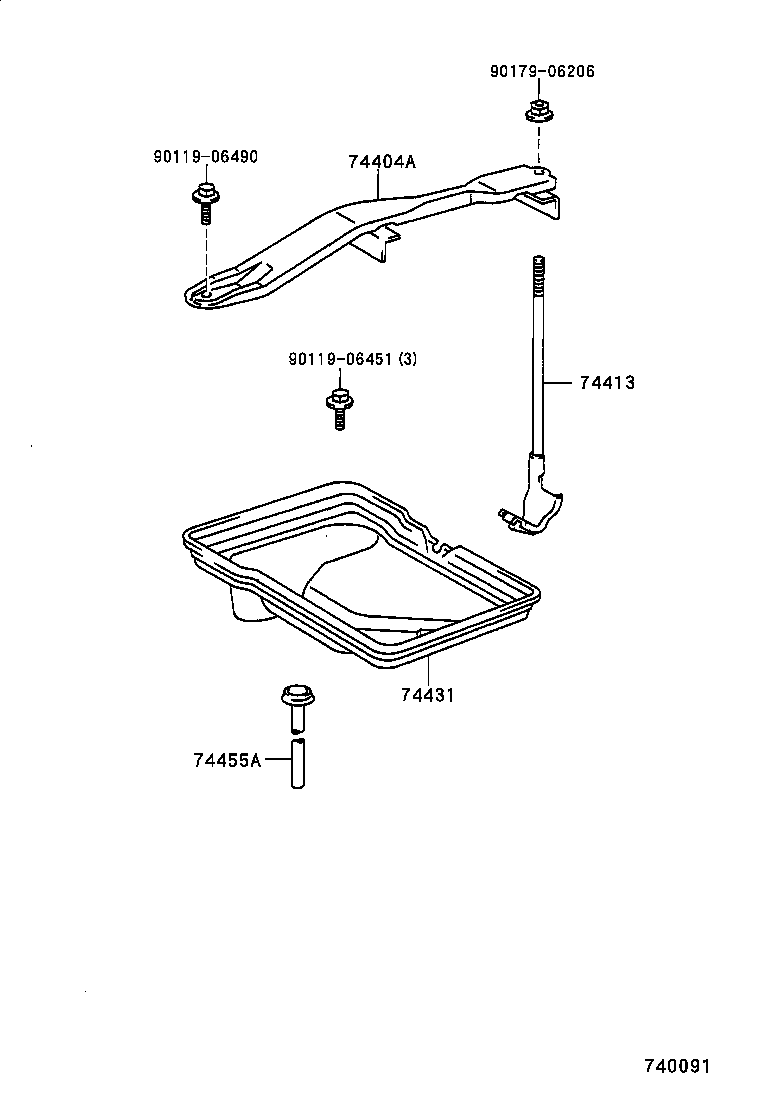

Click highlighted areas on diagram

diagram 74404A 74413 74431 74455A 9011906451 9011906490 9017906206
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-22320

GX10#,JZX100,105..EXC,EXCG,ROU,ROUS,SLT

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L OR 46B24L)

 1
74404-22300

GX10#,JZX10#

ｱﾘ(ﾊﾞﾂﾃﾘ=50D20L OR 55D23L)

 1
74413 - BOLT, BATTERY CLAMP
74407-22060

GX10#,JZX10#

 1
74431 - TRAY, BATTERY
74431-22140

GX10#,JZX100,105..EXC,EXCG,ROU,ROUS,SLT

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19L OR 46B24L)

 1
74431-22120

GX10#,JZX10#

ｱﾘ(ﾊﾞﾂﾃﾘ=50D20L OR 55D23L)

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GX10#,JZX10#,LX100

 1
Common parts
90119-06451
90119-06490
90179-06206
