JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

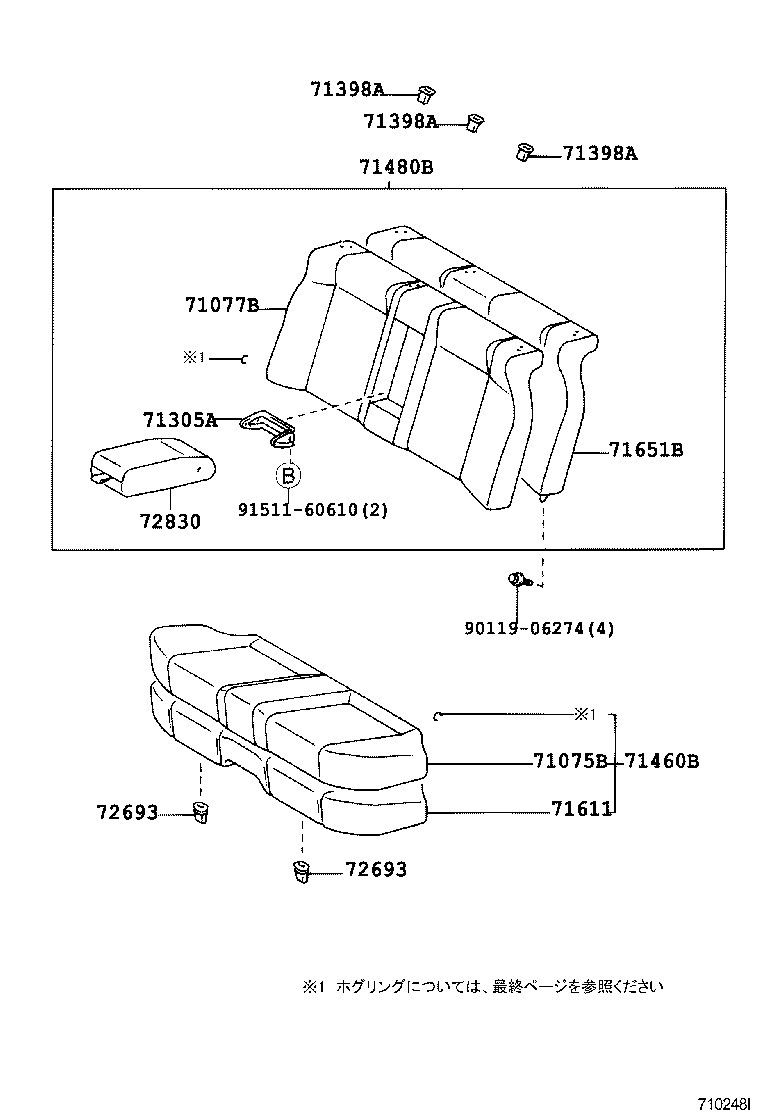

(9609- )ROU,ROUG,ROUS,SC,SLT

Click highlighted areas on diagram

diagram 71075B 71077B 71305A 71398A 71398A 71398A 71460B 71480B 71611 71651B 72693 72693 72830 9011906274 9151160610
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22530E0

GX100,JZX100,105,LX100..SLT

ORCHID,TRIM4#

 1
71065-22530G0

GX100,JZX100,105,LX100..SLT

SAGE,TRIM6#

 1
71065-22530G2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71065-22650E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71065-22530E2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A710G0

GX100,JZX100,105,LX100..SLT

SAGE,TRIM6#

 1
71077-2A830E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71077-2A710E0

GX100,JZX100,105,LX100..SLT

ORCHID,TRIM4#

 1
71077-2A710E2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71077-2A710G2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71281-22080

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
71305-22020

GX10#,JZX10#,LX100

 1
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-22770G0

GX100,JZX100,105,LX100..SLT

***,SAGE,TRIM6#

 1
71560-22770E0

GX100,JZX100,105,LX100..SLT

***,ORCHID,TRIM4#

 1
71560-22770G2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71560-22770E2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71560-22840E0

GX10#,JZX100..SLT

***,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A840G0

GX100,JZX100,105,LX100..SLT

***,SAGE,TRIM6#

 1
71480-2A840E0

GX100,JZX100,105,LX100..SLT

***,ORCHID,TRIM4#

 1
71480-2A840G2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71480-2A840E2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71480-2C050E0

GX10#,JZX100..SLT

***,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71503-22090

GX10#,JZX10#,LX100..EXC,EXCG,SLT

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22460

GX10#,JZX100,105,LX100..SLT

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22540E1

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID,TRIM4#

 1
72830-22610E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
72830-22540G1

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,SAGE,TRIM6#

 1
72830-22540E0

GX10#,JZX100,105..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID,TRIM4#

 1
72830-22540G0

GX10#,JZX100,105..SLT

ｼ-ﾄ = TYPE B-*104,SAGE,TRIM6#

 1
Common parts
90119-06274
91511-60610

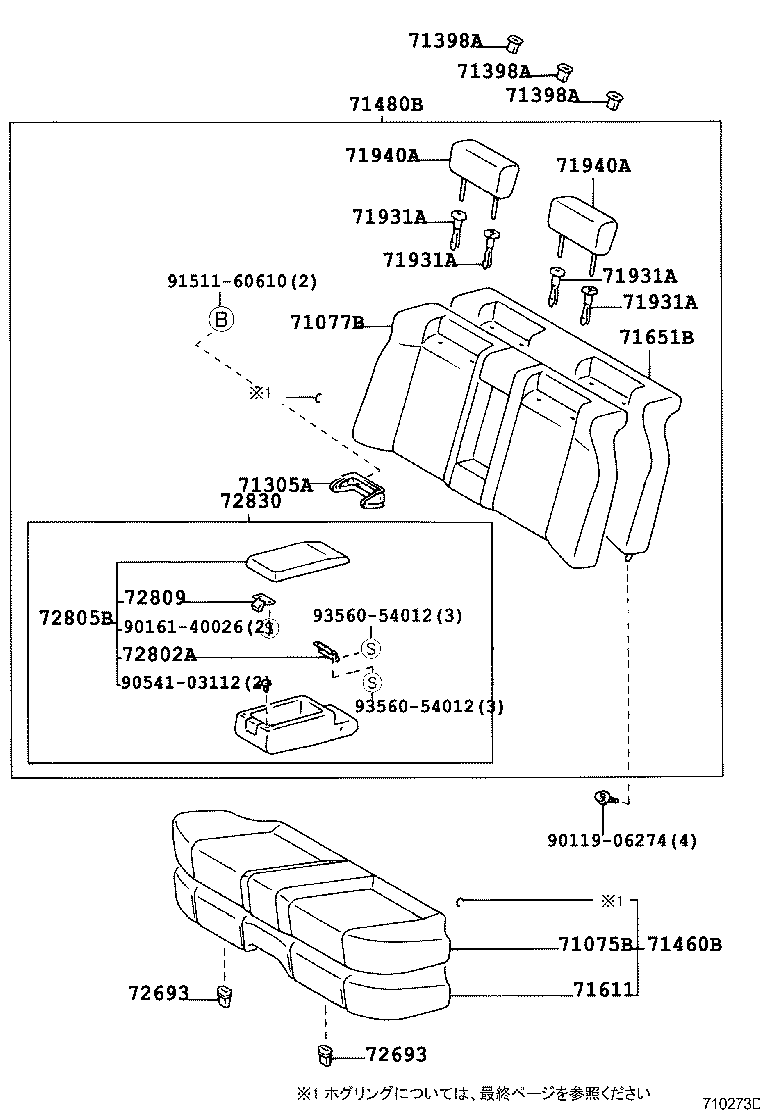

(9609- )EXC,EXCG,SLT

Click highlighted areas on diagram

diagram 71075B 71077B 71305A 71398A 71398A 71398A 71460B 71480B 71611 71651B 71931A 71931A 71931A 71931A 71940A 71940A 72693 72693 72802A 72805B 72809 72830 9011906274 9016140026 9054103112 9151160610 9356054012 9356054012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22530E0

GX100,JZX100,105,LX100..SLT

ORCHID,TRIM4#

 1
71065-22530G0

GX100,JZX100,105,LX100..SLT

SAGE,TRIM6#

 1
71065-22530G2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71065-22650E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71065-22530E2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A710G0

GX100,JZX100,105,LX100..SLT

SAGE,TRIM6#

 1
71077-2A830E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71077-2A710E0

GX100,JZX100,105,LX100..SLT

ORCHID,TRIM4#

 1
71077-2A710E2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71077-2A710G2

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71281-22080

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
71305-22020

GX10#,JZX10#,LX100

 1
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-22770G0

GX100,JZX100,105,LX100..SLT

***,SAGE,TRIM6#

 1
71560-22770E0

GX100,JZX100,105,LX100..SLT

***,ORCHID,TRIM4#

 1
71560-22770G2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71560-22770E2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71560-22840E0

GX10#,JZX100..SLT

***,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A840G0

GX100,JZX100,105,LX100..SLT

***,SAGE,TRIM6#

 1
71480-2A840E0

GX100,JZX100,105,LX100..SLT

***,ORCHID,TRIM4#

 1
71480-2A840G2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,DK.SAGE,TRIM6#

 1
71480-2A840E2

GX10#,JZX100,105,LX100..SLT

***,ｼ-ﾄ = TYPE B-*104,ORCHID BROWN,TRIM4#

 1
71480-2C050E0

GX10#,JZX100..SLT

***,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71503-22090

GX10#,JZX10#,LX100..EXC,EXCG,SLT

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22460

GX10#,JZX100,105,LX100..SLT

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22540E1

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID,TRIM4#

 1
72830-22610E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
72830-22540G1

GX10#,JZX100,105,LX100..SLT

ｼ-ﾄ = TYPE B-*104,SAGE,TRIM6#

 1
72830-22540E0

GX10#,JZX100,105..SLT

ｼ-ﾄ = TYPE B-*104,ORCHID,TRIM4#

 1
72830-22540G0

GX10#,JZX100,105..SLT

ｼ-ﾄ = TYPE B-*104,SAGE,TRIM6#

 1
Common parts
90119-06274
90161-40026
90541-03112
91511-60610
93560-54012

(9609- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
