JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )

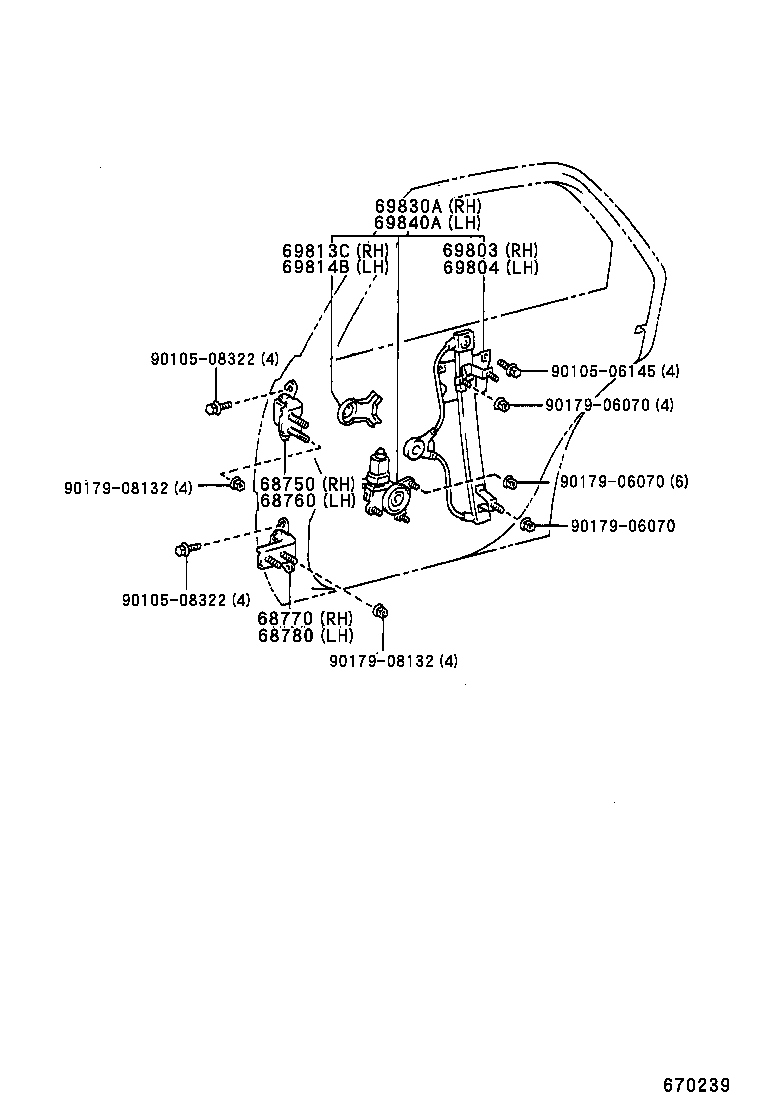

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-33010 |
GX10#,JZX10#,LX100 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-33010 |
GX10#,JZX10#,LX100 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-22190 |
GX10#,JZX10#,LX100 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-22190 |
GX10#,JZX10#,LX100 |
1 | ||
| 69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE | ||||
| 69811-22120 |
GX10#,JZX10#,LX100 |
1 | ||
| 69814B - PLATE, REAR DOOR WINDOW REGULATOR BASE, LH | ||||
| 69812-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-22360 |
GX100,JZX10#,LX100 |
1 | ||
| 69830-22361 |
GX10#,JZX10#,LX100 |
1 | ||
| 69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-22360 |
GX100,JZX10#,LX100 |
1 | ||
| 69840-22361 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90105-08322 | ||||
| 90179-06070 | ||||
| 90179-08132 | ||||
