JZX100-CEPQF (1996)
Toyota Cresta

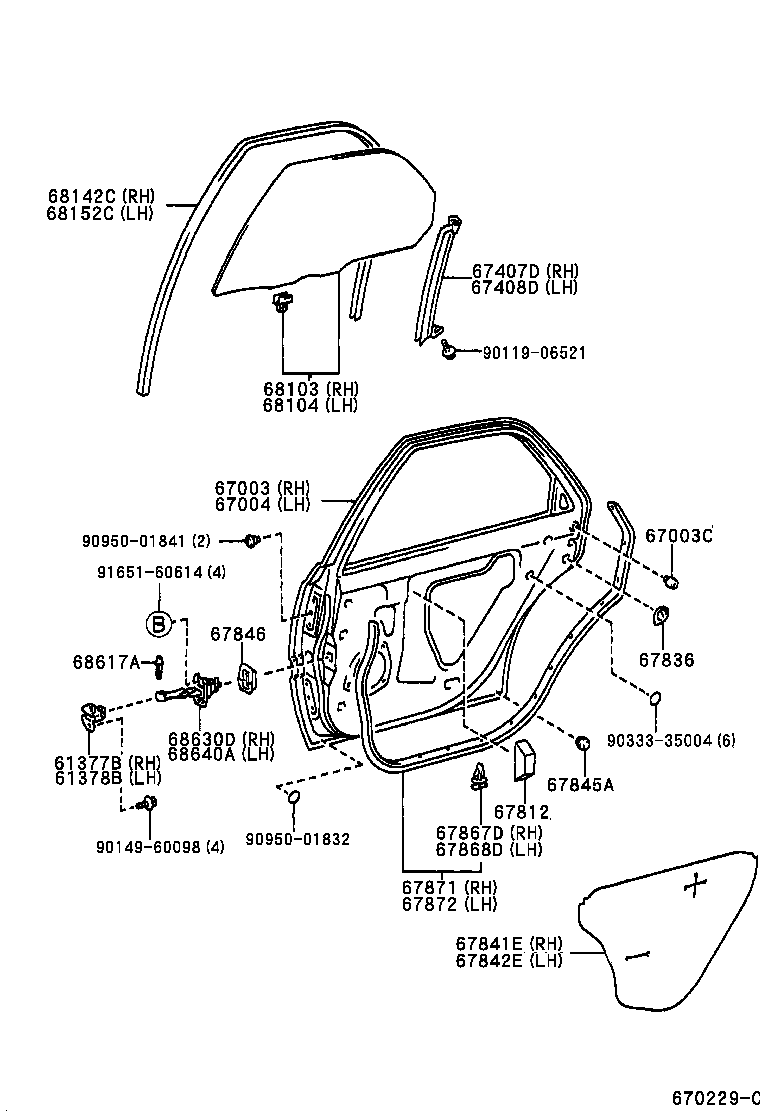

ILLUST NO. 2 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61377B - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 61377-30020 |
GX10#,JZX10#,LX100 |
1 | ||
| 61378B - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 61378-30020 |
GX10#,JZX10#,LX100 |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22380 |
GX10#,JZX10#,LX100 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09080 |
GX10#,JZX10#,LX100 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22390 |
GX10#,JZX10#,LX100 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-22150 |
GX10#,JZX10#,LX100 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-22150 |
GX10#,JZX10#,LX100 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-22070 |
GX10#,JZX10#,LX100 |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67841-22250 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 67842-22170 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22240 |
GX10#,JZX10#,LX100 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-22140 |
GX10#,JZX10#,LX100 |
1 | ||
| 67845A - SUB-SHEET, REAR DOOR SERVICE HOLE | ||||
| 67845-22060 |
GX10#,JZX10#,LX100 |
2 | ||
| 67846 - SEAL, REAR DOOR SERVICE HOLE | ||||
| 67846-22021 |
GX10#,JZX10#,LX100 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GX10#,JZX10#,LX100 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GX10#,JZX10#,LX100 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22280 |
GX10#,JZX10#,LX100 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22280 |
GX10#,JZX10#,LX100 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-22320 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-22310 |
GX10#,JZX10#,LX100 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-22310 |
GX10#,JZX10#,LX100 *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-22320 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-22120 |
GX10#,JZX10#,LX100 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-22080 |
GX10#,JZX10#,LX100 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GX10#,JZX10#,LX100 |
2 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-22130 |
GX10#,JZX10#,LX100 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-22130 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90119-06521 | ||||
| 90149-60098 | ||||
| 90333-35004 | ||||
| 90950-01832 | ||||
| 90950-01841 | ||||
| 91651-60614 | ||||

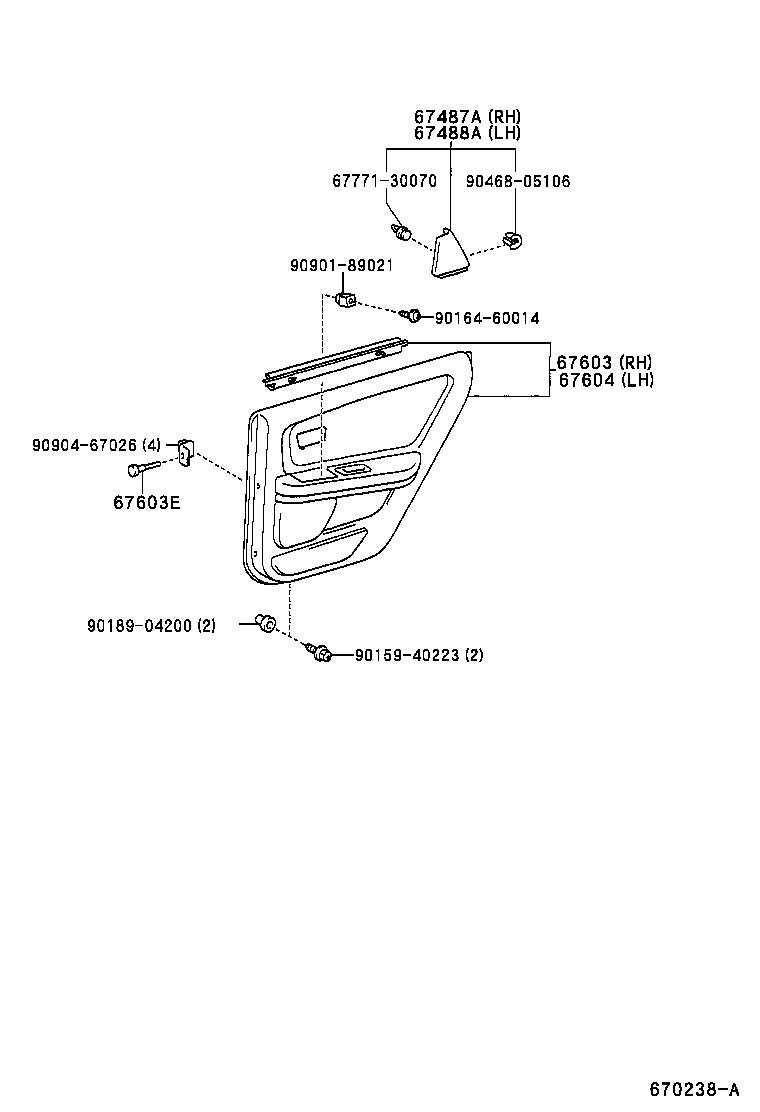

ILLUST NO. 1 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2C240E0 |
GX100,JZX100,105,LX100..SLT ORCHID,TRIM4# |
1 | ||
| 67010-22040E0 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4# |
1 | ||
| 67630-2C240E2 |
GX10#,JZX100,105,LX100..SLT ﾄﾞｱﾄﾘﾑ=TYPE B-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 67630-2C240G2 |
GX10#,JZX100,105,LX100..SLT ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.SAGE,TRIM6# |
1 | ||
| 67630-2C240G0 |
GX100,JZX100,105,LX100..SLT SAGE,TRIM6# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066B0 |
GX100,JZX10#,LX100..EXC,EXCG,SLT MEDIUM GRAY,TRIM4#,6#,上側 |
2 | ||
| 90467-07066E6 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4,下側 |
6 | ||
| 90467-07066G3 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
8 | ||
| 90467-07066B0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT MEDIUM GRAY,TRIM4#,6# |
8 | ||
| 90467-07066E6 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
8 | ||
| 90467-07066G3 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6,下側 |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2C230G0 |
GX100,JZX100,105,LX100..SLT SAGE,TRIM6# |
1 | ||
| 67640-2C230G2 |
GX10#,JZX100,105,LX100..SLT ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.SAGE,TRIM6# |
1 | ||
| 67640-2C230E2 |
GX10#,JZX100,105,LX100..SLT ﾄﾞｱﾄﾘﾑ=TYPE B-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 67640-2C230E0 |
GX100,JZX100,105,LX100..SLT ORCHID,TRIM4# |
1 | ||
| 67020-22040E0 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-30070 | ||||
| 90159-40223 | ||||
| 90164-60014 | ||||
| 90189-04200 | ||||
| 90468-05106 | ||||
| 90901-89021 | ||||
| 90904-67026 | ||||
