JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )

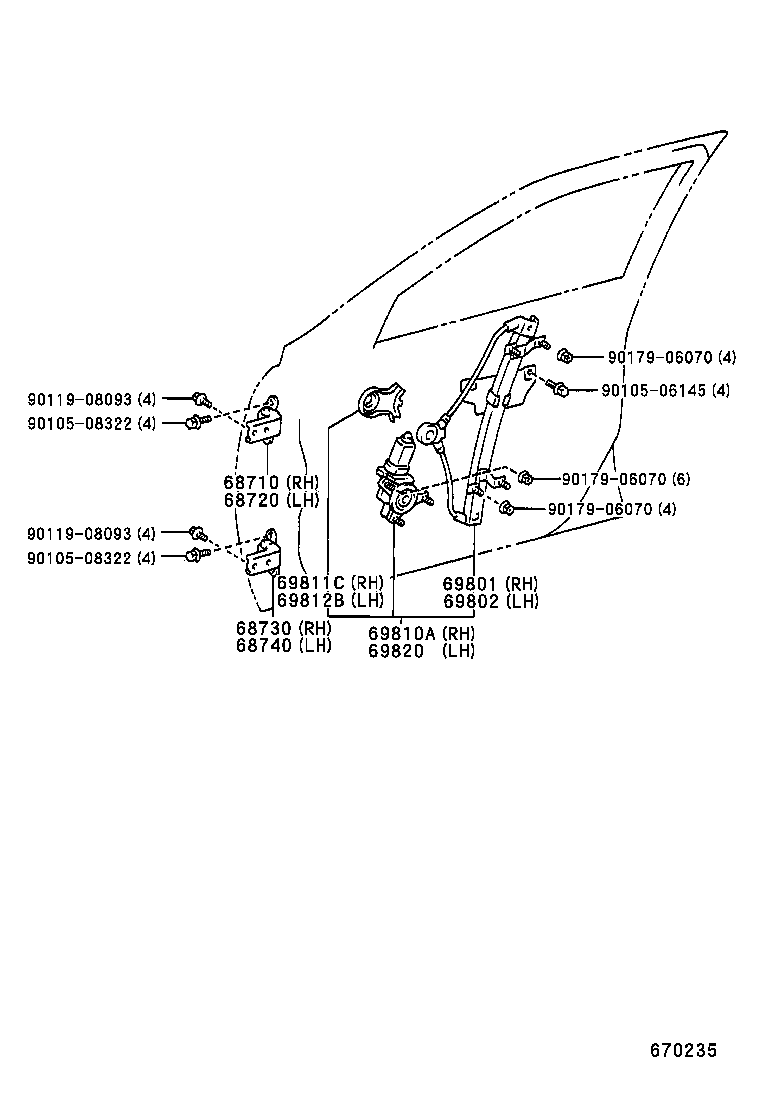

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68740-12110 |
GX10#,JZX10#,LX100 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68730-12110 |
GX10#,JZX10#,LX100 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12110 |
GX10#,JZX10#,LX100 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-12110 |
GX10#,JZX10#,LX100 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-22350 |
GX10#,JZX10#,LX100 |
1 | ||
| 69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE | ||||
| 69811-22120 |
GX10#,JZX10#,LX100 |
1 | ||
| 69812B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, LH | ||||
| 69812-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-22330 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90105-08322 | ||||
| 90119-08093 | ||||
| 90179-06070 | ||||
