JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

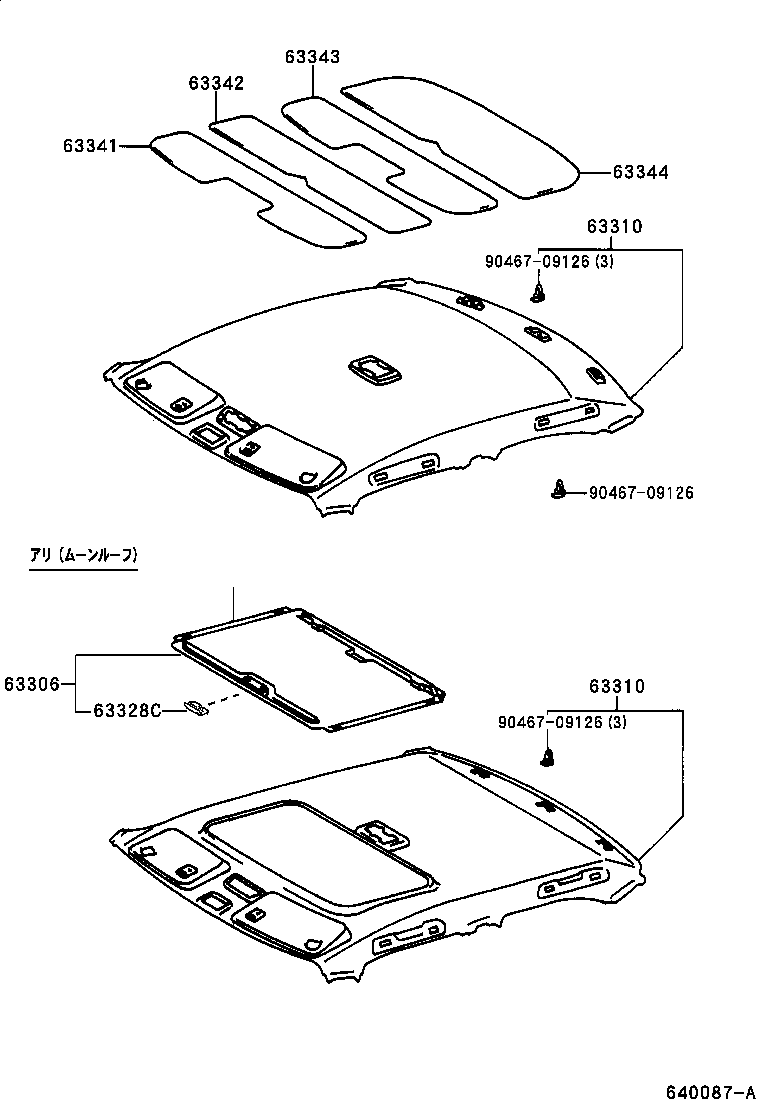

Click highlighted areas on diagram

diagram 63306 63310 63310 63328C 63341 63342 63343 63344 9046709126 9046709126 9046709126
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-33050E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
63306-33050G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
63310 - HEADLINING ASSY, ROOF
63310-22690E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ORCHID,TRIM4#

 1
63310-22680G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
63310-22680E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
63310-22690G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),SAGE,TRIM6#

 1
63310 - HEADLINING ASSY, ROOF
63310-22690E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ORCHID,TRIM4#

 1
63310-22680G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
63310-22680E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
63310-22690G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),SAGE,TRIM6#

 1
63328C - KNOB, SUNSHADE TRIM
63328-12030E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
63328-12030G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
63341 - PAD, ROOF SILENCER, NO.1
63344-22040

GX10#,JZX10#,LX100

 1
63342 - PAD, ROOF SILENCER, NO.2
63345-22060

GX10#,JZX10#,LX100

 1
63343 - PAD, ROOF SILENCER, NO.3
63346-22020

GX10#,JZX10#,LX100

 1
63344 - PAD, ROOF SILENCER, NO.4
63344-22040

GX10#,JZX10#,LX100

 1
Common parts
90467-09126
