JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

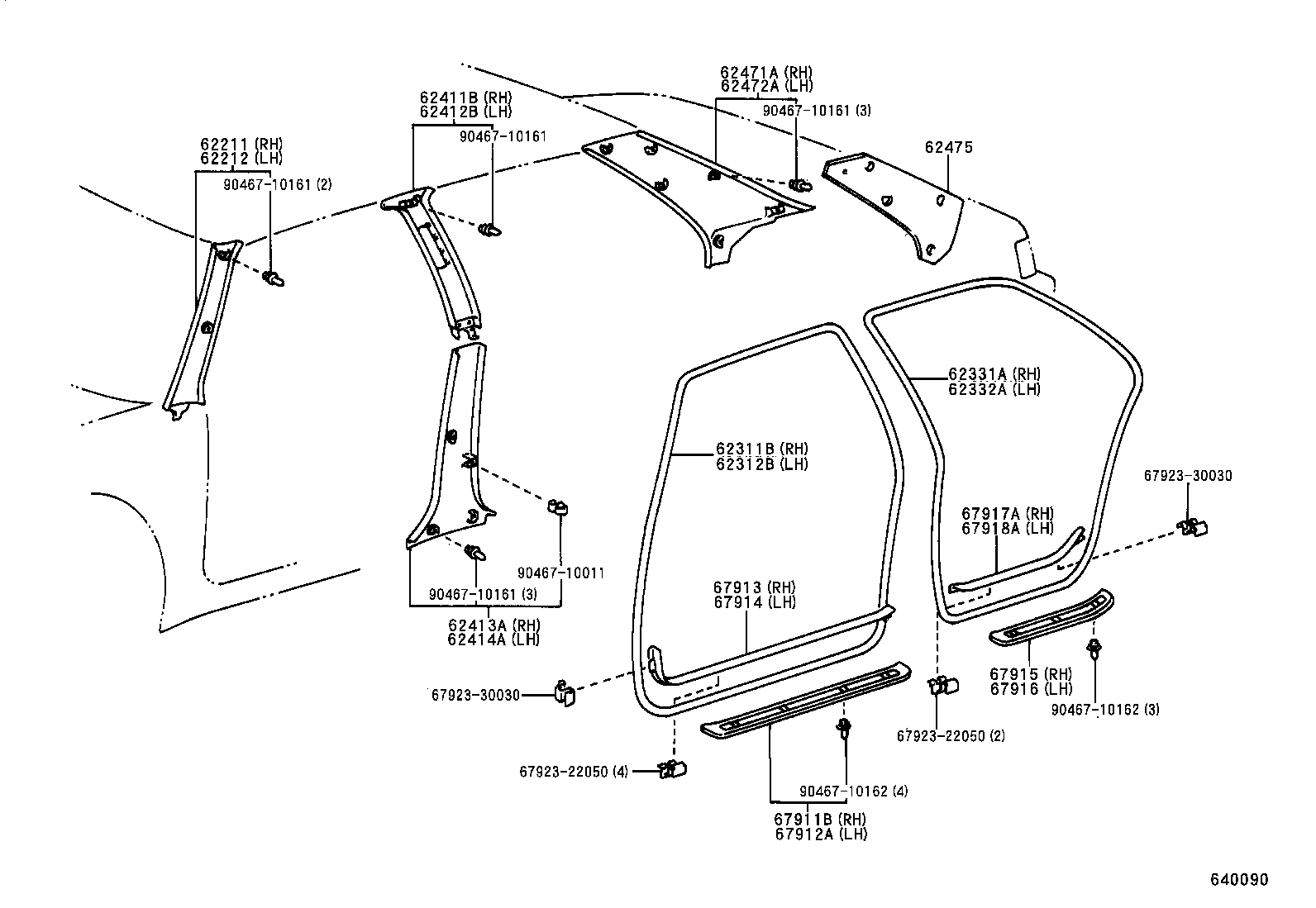

Click highlighted areas on diagram

diagram 62211 62212 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62414A 62471A 62472A 62475 67911B 67912A 67913 67914 67915 67916 67917A 67918A 6792322050 6792322050 6792330030 6792330030 9046710011 9046710161 9046710161 9046710161 9046710161 9046710162 9046710162
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-22340E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62211-22340G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-22350E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62212-22350G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62311-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62312-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-22090G0

GX100,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62331-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62331-22090E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62331-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-22090E0

GX100,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62332-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62332-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62332-22090G0

GX100,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-22360G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62411-22360E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-22380G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62412-22380E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-22130E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62413-22130G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-22130G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
62414-22130E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-22350E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62471-22350G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-22340G0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

SAGE,TRIM6#

 1
62472-22340E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
62475 - PAD, ROOF SIDE INNER GARNISH
62475-22180

GX10#,JZX10#,LX100

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-22060

GX10#,JZX100,105,LX100..ROU,ROUS,SC,SLT

ｽﾃﾝﾚｽ ﾀｲﾌﾟ

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-22060

GX10#,JZX100,105,LX100..ROU,ROUS,SC,SLT

ｽﾃﾝﾚｽ ﾀｲﾌﾟ

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-22120G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
67913-22120E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
67914-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-22060

GX10#,JZX100,105,LX100..ROU,ROUS,SC,SLT

ｽﾃﾝﾚｽ ﾀｲﾌﾟ

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-22060

GX10#,JZX100,105,LX100..ROU,ROUS,SC,SLT

ｽﾃﾝﾚｽ ﾀｲﾌﾟ

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
67917-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-22110E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
67918-22110G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
Common parts
67923-22050
67923-30030
90467-10011
90467-10161
90467-10162
