JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

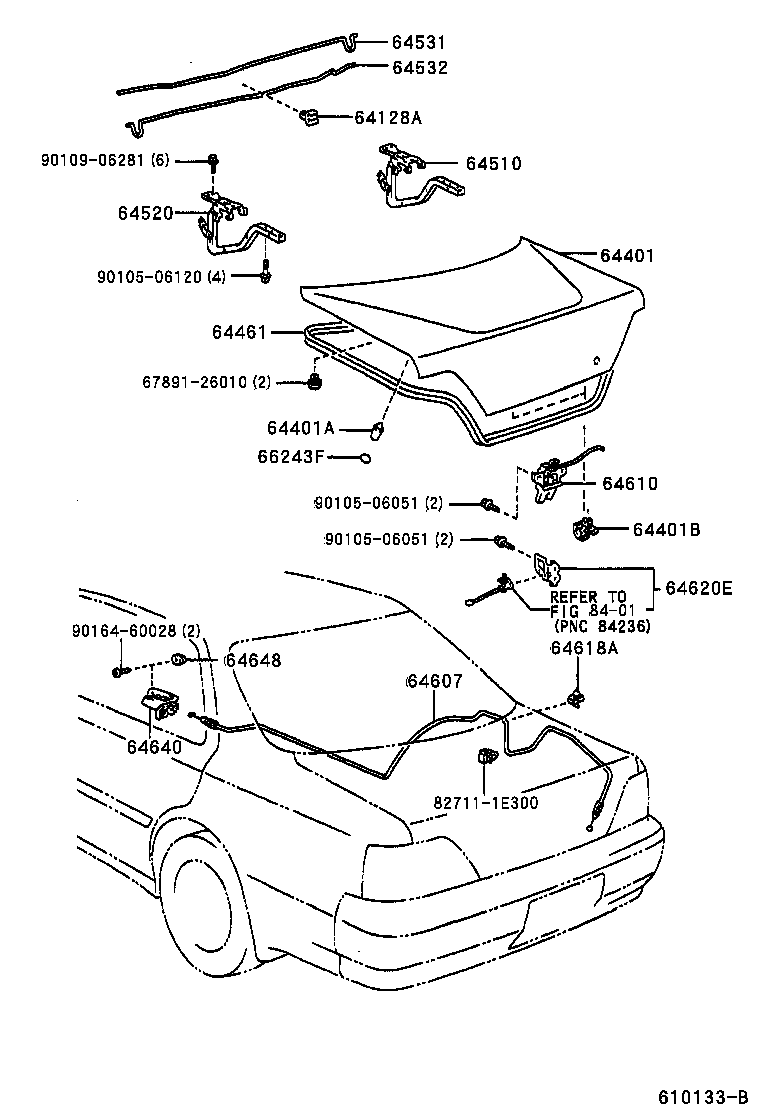

Click highlighted areas on diagram

diagram 64128A 64401 64401A 64401B 64461 64510 64520 64531 64532 64607 64610 64618A 64620E 64640 64648 66243F 6789126010 827111E300 8401 9010506051 9010506051 9010506120 9010906281 9016460028
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64128-22030

GX10#,JZX10#,LX100

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22700

GX100,JZX10#,LX100

 1
64401-22740

GX10#,JZX10#,LX100

 1
64401-22710

GX100,JZX100..ATM..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(S)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09035

GX10#,JZX10#,LX100

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64425-22010

GX10#,JZX10#,LX100

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22280

GX10#,JZX10#,LX100

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-22170

GX10#,JZX10#,LX100

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-22170

GX10#,JZX10#,LX100

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-22350

GX100,JZX10#,LX100

 1
64531-22351

GX10#,JZX10#,LX100

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-22350

GX100,JZX10#,LX100

 1
64532-22351

GX10#,JZX10#,LX100

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22421

GX10#,JZX10#,LX100

 1
64607-22420

GX100,JZX10#,LX100

 1
64607-22421

GX100,JZX10#,LX100

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-22030

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

 1
64600-22031

GX10#,JZX10#,LX100..EXC,EXCG,ROUG,SLT

 1
64618A - CLAMP, LUGGAGE LOCK CONTROL CABLE
64618-22020

GX10#,JZX10#,LX100

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-22060

GX100,JZX10#,LX100

 1
64621-22040

GX10#,JZX10#,LX100

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-22250G0

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 1
64640-22250E0

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010

GX10#,JZX10#,LX100

 2
66243F - PROTECTOR, REAR BODY, NO.1
66243-20010

GX10#,JZX10#,LX100

 2
90950-06123

GX10#,JZX10#,LX100

 2
Common parts
67891-26010
82711-1E300
90105-06051
90105-06120
90109-06281
90164-60028
Linked diagrams
8401
