JZX100-CEPQF (1996)
Toyota Cresta

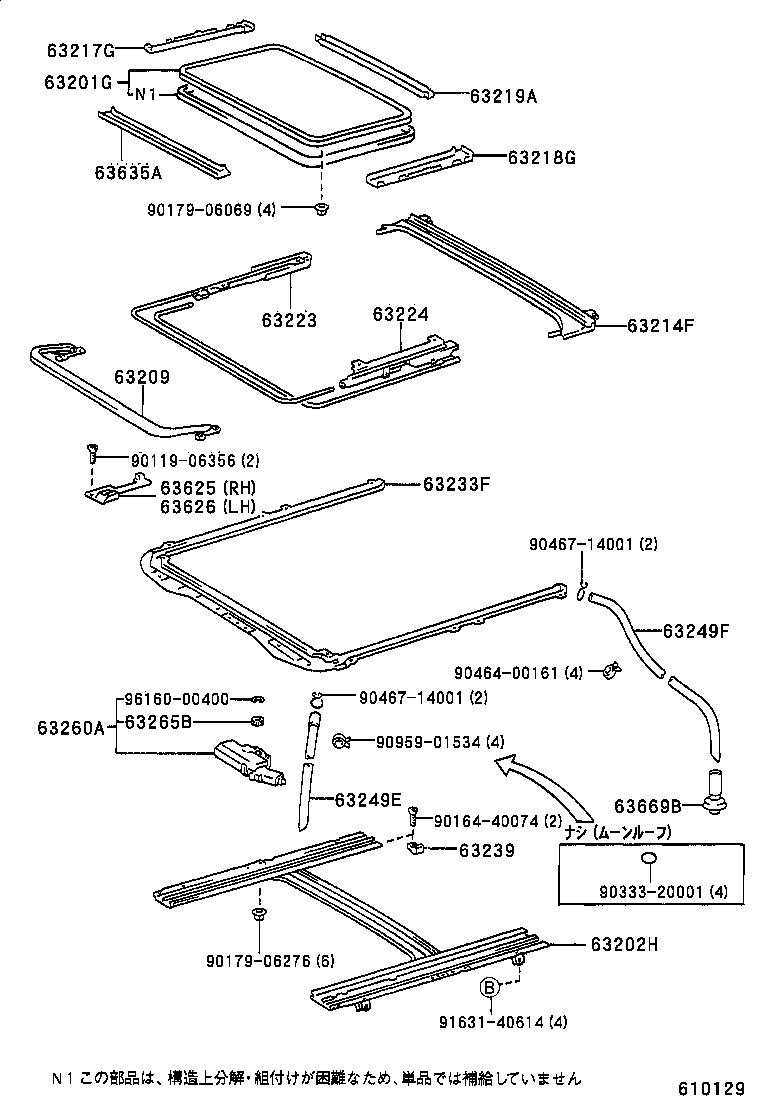

ILLUST NO. 2 OF 2(9609- )
ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-22110 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-22020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-33020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-22050 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-22050 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63233F - FRAME, REMOVABLE ROOF HOUSING | ||||
| 63233-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-22080 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-22100 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 63260-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-33020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-33020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26028 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
2 | ||
| 63669-30010 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT |
2 | ||
| Common parts | ||||
| 90119-06356 | ||||
| 90164-40074 | ||||
| 90179-06069 | ||||
| 90179-06276 | ||||
| 90333-20001 | ||||
| 90464-00161 | ||||
| 90467-14001 | ||||
| 90959-01534 | ||||
| 91631-40614 | ||||
| 96160-00400 | ||||

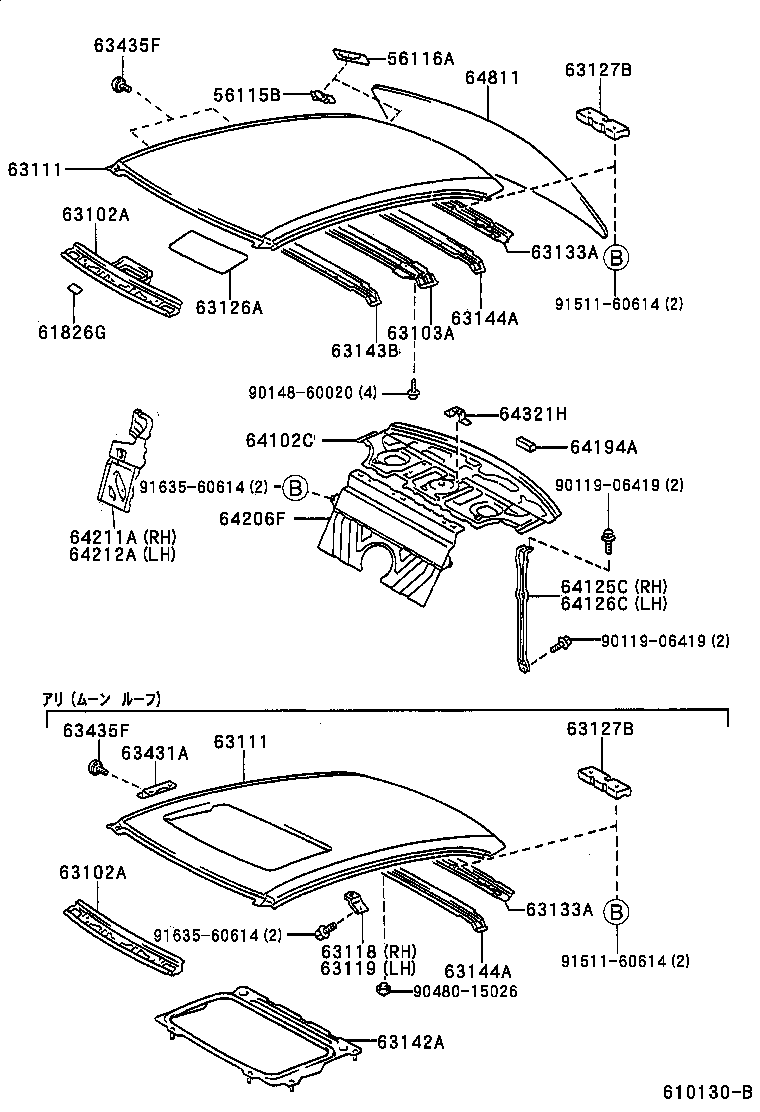

ILLUST NO. 1 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-22010 |
GX10#,JZX10#,LX100 |
2 | ||
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-22050 |
GX10#,JZX10#,LX100 |
2 | ||
| 61826G - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
GX10#,JZX10#,LX100 |
4 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22270 |
GX10#,JZX10#,LX100 |
1 | ||
| 63102-22280 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22270 |
GX10#,JZX10#,LX100 |
1 | ||
| 63102-22280 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-22150 |
GX10#,JZX10#,LX100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22330 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-22320 |
GX10#,JZX10#,LX100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22330 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-22320 |
GX10#,JZX10#,LX100 |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-22080 |
GX10#,JZX10#,LX100 |
2 | ||
| 63118-22080 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-22080 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
GX10#,JZX10#,LX100 |
2 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-22020 |
GX100,JZX10#,LX100 |
1 | ||
| 63127-22021 |
GX100,JZX100,101,LX100 |
1 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-22020 |
GX100,JZX10#,LX100 |
1 | ||
| 63127-22021 |
GX100,JZX100,101,LX100 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-22160 |
GX10#,JZX10#,LX100 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-22160 |
GX10#,JZX10#,LX100 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-22080 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63105-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 63106-22050 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 63106-22050 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63431A - BRACKET, ROOF INNER RACK, NO.1 RH | ||||
| 63431-22040 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
2 | ||
| 63435F - SEAL, ROOF CARRIER, NO.1 | ||||
| 63435-12030 |
GX10#,JZX10#,LX100 |
8 | ||
| 63435-22010 |
GX10#,JZX10# |
8 | ||
| 63435F - SEAL, ROOF CARRIER, NO.1 | ||||
| 63435-12030 |
GX10#,JZX10#,LX100 |
8 | ||
| 63435-22010 |
GX10#,JZX10# |
8 | ||
| 64102C - PANEL SUB-ASSY, UPPER BACK, INNER | ||||
| 64102-22120 |
GX100,JZX100,105,LX100..EXC,ROU,SLT ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64102-22140 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｽﾋﾟ-ｶ) |
1 | ||
| 64102-22110 |
GX10#,JZX10#,LX100 |
1 | ||
| 64102-22110 |
GX100,JZX100,105,LX100..EXC,ROU,SC,SLT |
1 | ||
| 64102-22120 |
GX10#,JZX10#,LX100 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64102-22130 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 64125C - BRACKET, UPPER BACK PANEL, RH | ||||
| 64125-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 64126C - BRACKET, UPPER BACK PANEL, LH | ||||
| 64125-22060 |
GX100,JZX10#,LX100 |
1 | ||
| 64194A - PAD, BACK PANEL SILENCER, UPPER | ||||
| 64194-22010 |
GX100,JZX10#,LX100 |
1 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| 64321H - BRACKET, PACKAGE TRAY TRIM | ||||
| 64321-22020 |
GX100,JZX100,105,LX100..EXC,ROU,SC,SLT |
1 | ||
| 64321-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-2A912 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A915 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A916 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A520 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A918 |
GX100,JZX100..ATM..SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) & ｱﾘ(ﾘﾔﾜｲﾊﾟ);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S) & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A511 |
GX100,JZX100..ATM..SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 64811-2A913 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A471 |
GX100,JZX10#,LX100 *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-2A470 |
GX100,JZX10#,LX100 *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-2A510 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A480 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-2A914 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A918 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX100,JZX101,105,LX100..EXC,EXCG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A481 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-2A511 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX100,JZX101,105,LX100..EXC,EXCG,SLT *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A481 |
GX10#,JZX100,105,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-2A919 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A917 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A917 |
GX10#,JZX100,105,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A916 |
GX10#,JZX100,105,LX100 *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A521 |
GX100,JZX10#,LX100..EXC,EXCG,SLT *UVCEHTT,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 64811-2A471 |
GX10#,JZX100,105,LX100 *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| Common parts | ||||
| 90119-06419 | ||||
| 90148-60020 | ||||
| 90480-15026 | ||||
| 91511-60614 | ||||
| 91635-60614 | ||||
