JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )ATM..EXC,EXCG,SLT

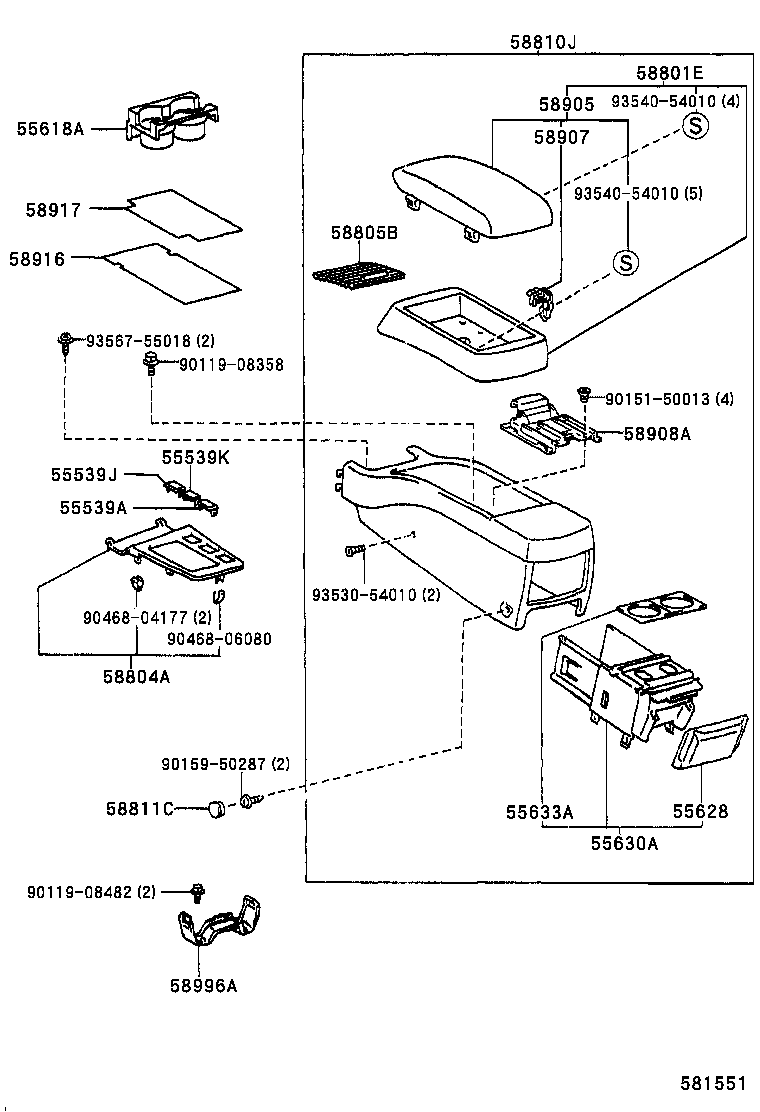

Click highlighted areas on diagram

diagram 55539A 55539J 55539K 55618A 55628 55630A 55633A 58801E 58804A 58805B 58810J 58811C 58905 58907 58908A 58916 58917 58996A 9011908358 9011908482 9015150013 9015950287 9046804177 9046806080 9353054010 9354054010 9354054010 9356755018
Part # Description Qty Price
55539K - COVER, SPARE SWITCH HOLE
55539-22160

GX100..MTM;JZX100,LX100..EXC,SLT

 1
55539-22180

JZX100,LX100..EXC,SLT

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-22040

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

 1
55618-22060

GX10#,JZX10#,LX100..EXC,EXCG,SLT

 1
55628 - KNOB, CONSOLE BOX CUP HOLDER
55628-22040E0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

ORCHID BROWN,TRIM4#

 1
55628-22040G0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

DK.SAGE,TRIM6#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-22020E0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

ORCHID BROWN,TRIM4#

 1
55630-22020G0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

DK.SAGE,TRIM6#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-22060

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

 1
58801E - BOX SUB-ASSY, CONSOLE, UPPER
58801-22340E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID BROWN,TRIM4#

 1
58801-22300E0

GX10#,JZX100,105,LX100..ATM..SLT

ORCHID BROWN,TRIM4#

 1
58801-22300G0

GX10#,JZX100,105,LX100..ATM..SLT

DK.SAGE,TRIM6#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22270

GX10#,JZX100,105,LX100..EXC,SLT

 1
58804-22200

JZX100,101,LX100..EXC,EXCG,SLT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
58804-22190

GX100,JZX100,105,LX100..ATM..(EXC,SLT)

 1
58804-22280

JZX100,101,LX100..EXC,EXCG,SLT

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
58805B - PANEL SUB-ASSY, CONSOLE, LOWER
58805-22040E0

GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

ORCHID BROWN,TRIM4#

 1
58805-22040G0

GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

DK.SAGE,TRIM6#

 1
58805-22050E1

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID BROWN,TRIM4#

 1
58805-22050G1

GX10#,JZX10#,LX100..EXC,EXCG,SLT

DK.SAGE,TRIM6#

 1
58810J - BOX ASSY, CONSOLE
58810-22620G0

GX100,JZX100,105,LX100..ATM..SLT

DK.SAGE,TRIM6#

 1
58810-22620E0

GX100,JZX100,105,LX100..ATM..SLT

ORCHID BROWN,TRIM4#

 1
58810-22780E1

GX10#;JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID,TRIM4#

 1
58810-22720G0

GX100,JZX100,105,LX100..ATM..SLT

DK.SAGE,TRIM6#

 1
58810-22720E0

GX100,JZX100,105,LX100..ATM..SLT

ORCHID BROWN,TRIM4#

 1
58810-22740E2

GX10#,JZX100,105,LX100..SLT

ORCHID BROWN,TRIM4#

 1
58810-22740G2

GX10#,JZX100,105,LX100..SLT

DK.SAGE,TRIM6#

 1
58811C - CAP(FOR CONSOLE)
90339-10014E1

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 2
90339-10014G1

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 2
90339-10014B1

GX10#,JZX10#,LX100..EXC,EXCG,SLT

MD.GRAY,TRIM4#,6#

 2
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-22500E0

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID BROWN,TRIM4#

 1
58905-22440G0

GX10#,JZX100,105,LX100..ATM..SLT

SAGE,TRIM6#

 1
58905-22440E0

GX10#,JZX100,105,LX100..ATM..SLT

ORCHID,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-22030

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

 2
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22020G0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

DK.SAGE,TRIM6#

 1
58908-22020E0

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

ORCHID BROWN,TRIM4#

 1
58916 - MAT, BOX BOTTOM
58916-22110

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-22050

GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22070

GX10#,JZX10#,LX100

 1
Common parts
90119-08358
90119-08482
90151-50013
90159-50287
90468-04177
90468-06080
93530-54010
93540-54010
93567-55018
