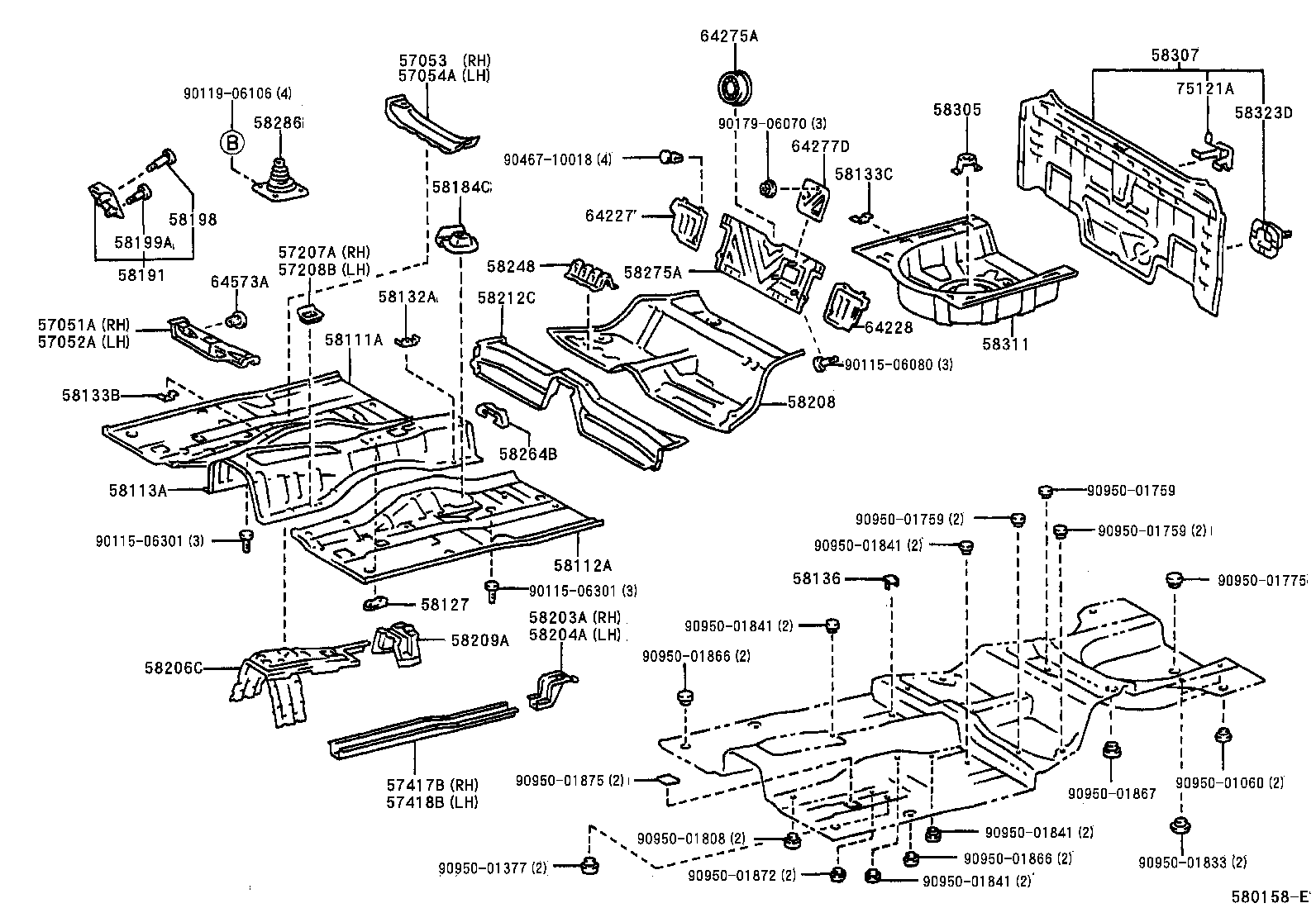

Toyota Cresta JZX100 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-22030	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-22030	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-22030	GX100,JZX100,101,LX100	08/1998 - 06/2001	1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-22030	GX100,JZX100,101,LX100	08/1998 - 06/2001	1
57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57207-22050	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57208-22050	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-30040	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-30010	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58111A - PAN, FRONT FLOOR, RH
58111-30351	GX100,JZX100,101,LX100	08/1997 - 06/2001	1
58111-30350	GX100,JZX100,101,LX100	09/1996 - 08/1997	1
58112A - PANEL, FRONT FLOOR, LH
58112-30030	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
58113A - PANEL, FRONT FLOOR, CENTER
58113-22030	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
58127 - PATCH, FRONT FLOOR PANEL
58127-22010	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22040	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
58133C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58133-22040	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
58136 - COVER, FRONT FLOOR HOLE
58136-24010	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
58191 - FOOTREST, FRONT FLOOR
58191-22050	GX10#,JZX10#,LX100..ATM	09/1996 - 06/2001	1
58198 - CLIP, FOOTREST
58198-22080	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58199A - CLIP, FOOTREST, NO.2
58199-22050	GX10#,JZX10#,LX100..ATM	09/1996 - 06/2001	1
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-22050	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-22050	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58206C - COVER SUB-ASSY, TRANSMISSION, REAR
58206-22120	GX100,JZX100,LX100..ATM..(EXC,EXCG,SLT)	09/1996 - 08/1998	1
58206-22190	JZX100,101..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
58206-22170	GX100,JZX100,LX100..EXC,EXCG,SLT	08/1998 - 06/2001	1
58208 - PAN, CENTER FLOOR
58211-22080	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58209-30020	GX100,JZX100,101,LX100	09/1996 - 06/2001	1
58212C - PAN, CENTER FLOOR, FRONT
58212-22071	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK
58248-22010	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
58264B - BRACKET, PARKING BRAKE CABLE GUIDE
58264-22060	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR
58275-22900	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-22740	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58311 - PAN, REAR FLOOR
58311-22140	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT
58323-22080	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
64227 - EXTENSION, CENTER FLOOR TO BRACE
64227-22030	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
64228 - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-22020	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
64275A - COVER, ROOM PARTITION
64275-22010	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
64277D - COVER, ROOM PARTITION, NO.2
64277-22020	GX10#,JZX10#,LX100	09/1996 - 06/2001	1
64573A - PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH
64573-22030	GX10#,JZX10#,LX100	12/1996 - 06/2001	1
75121A - BRACKET, REAR LICENSE PLATE
75121-22070	GX10#,JZX10#,LX100	09/1996 - 06/2001	2
Common parts
90115-06080
90115-06301
90119-06106
90179-06070
90467-10018
90950-01060
90950-01377
90950-01759
90950-01775
90950-01808
90950-01833
90950-01841
90950-01866
90950-01867
90950-01872
90950-01875

JZX100-CEPQF (1996)

(9609- )
