JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

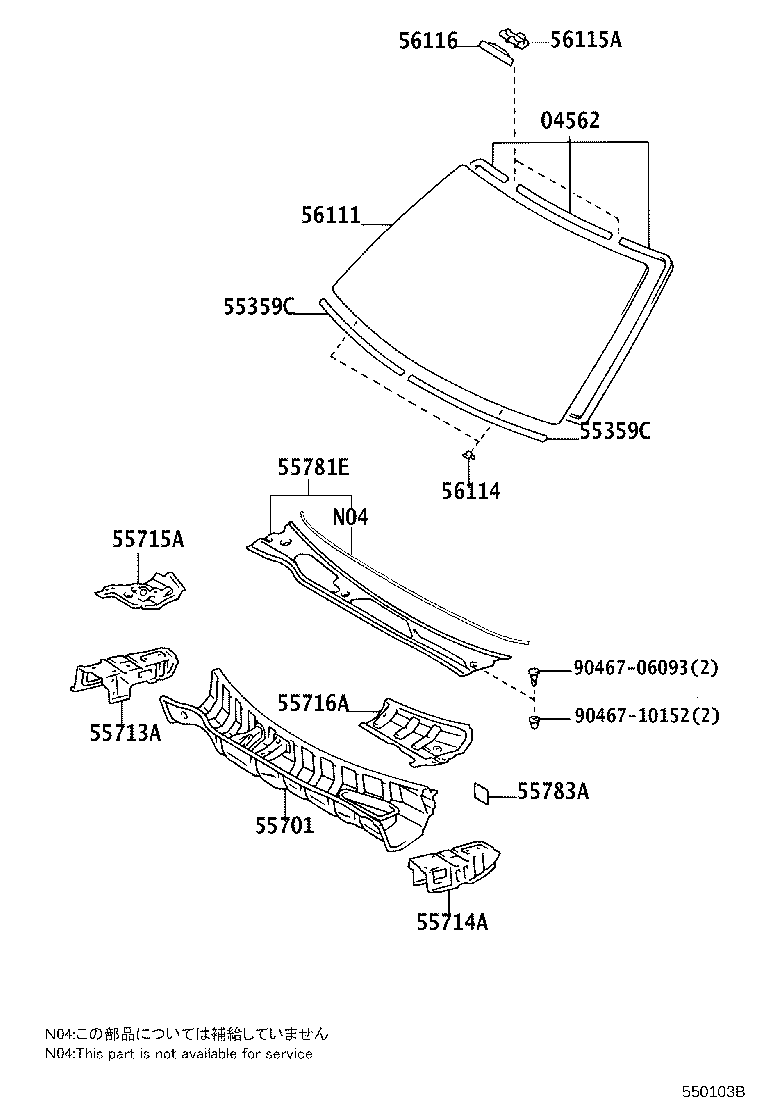

Click highlighted areas on diagram

diagram 04562 55359C 55359C 55701 55713A 55714A 55715A 55716A 55781E 55783A 56111 56114 56115A 56116 9046706093 9046710152
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

GX10#,JZX10#,LX100

 1
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-22040

GX10#,JZX10#,LX100

 2
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-22040

GX10#,JZX10#,LX100

 2
55701 - PANEL SUB-ASSY, COWL
55700-2A110

JZX10#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22900

GX10#,JZX10#,LX100

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22900

GX10#,JZX10#,LX100

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-22100

GX10#,JZX10#,LX100

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-22090

GX10#,JZX10#,LX100

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781-22230

GX10#,JZX10#,LX100

 1
55783A - PAD, COWL TOP SILENCER
55783-22110

GX10#,JZX10#,LX100

 2
56111 - GLASS, WINDSHIELD
56111-2A120

GX100,JZX10#,LX100..EXC,EXCG,SLT

*UVCL,T=4.7,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-2A130

JZX100..EXC,EXCG,ROU,ROUG,SLT;GX100,JZX101,105,LX100..EXC,EXCG,SC,SLT

*EHTL,T=4.7,ｸﾞﾘｰﾝ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-2A110

JZX100..EXC,EXCG,ROU,ROUG,SLT;GX100,JZX101,105,LX100..EXC,EXCG,SLT

*TL,T=4.7,ｸﾞﾘｰﾝ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56111-2A140

GX100,JZX10#,LX100..EXC,EXCG,SLT

*UVCEHL,T=4.7,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-22050

GX10#,JZX10#,LX100

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-22010

GX10#,JZX10#,LX100

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

GX10#,JZX10#,LX100

 2
Common parts
90467-06093
90467-10152
