JZX100-CEPQF (1996)
Toyota Cresta

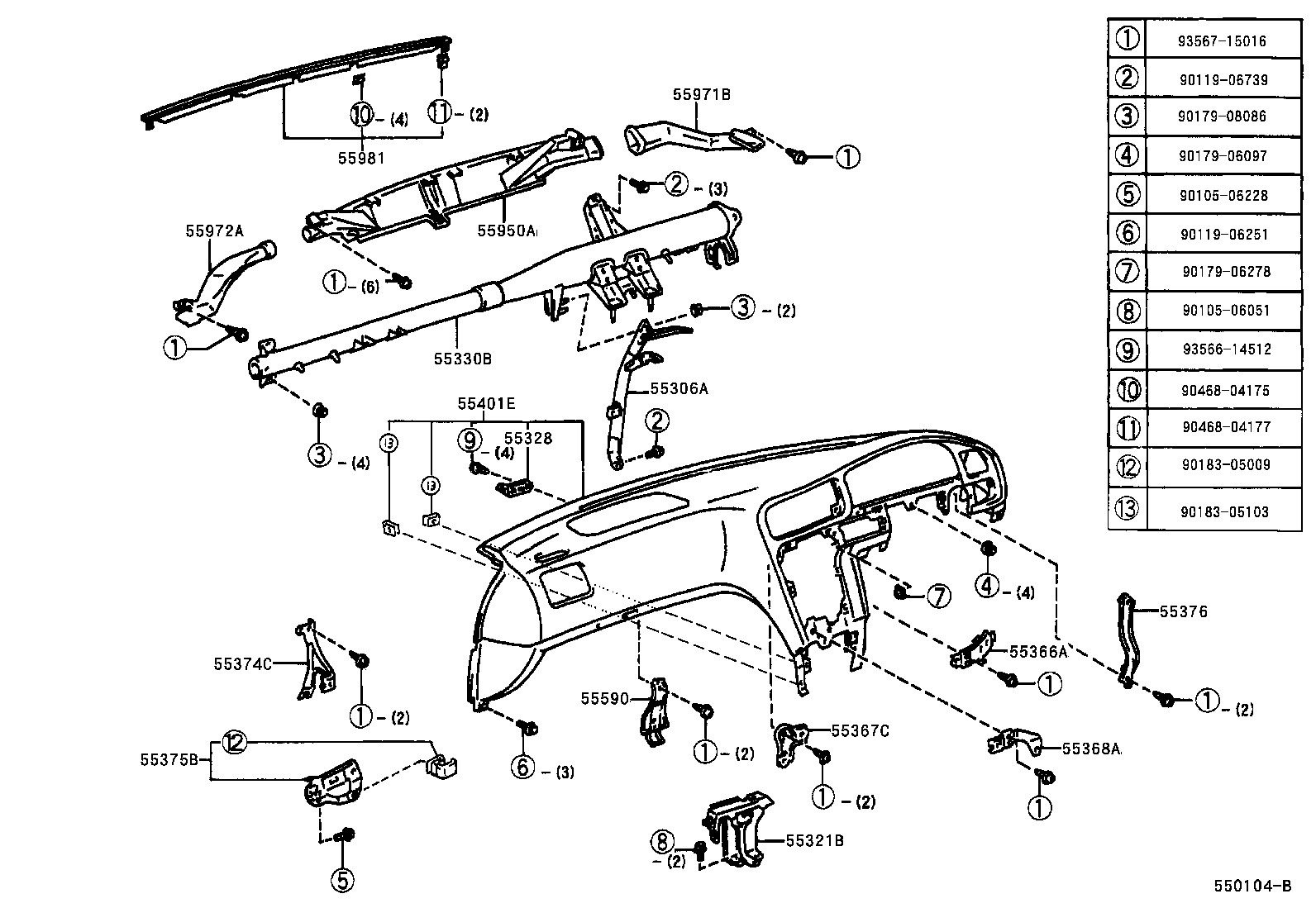

ILLUST NO. 1 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-22210 |
GX100,JZX100,101,LX100 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-22110 |
GX10#,JZX10#,LX100 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-22040 |
GX10#,JZX10#,LX100 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-22150 |
JZX10#,LX100 |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-22100 |
GX10#,JZX10#,LX100 |
1 | ||
| 55367C - BRACKET, RADIO TUNER MOUNTING, NO.3 | ||||
| 55367-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-22080 |
GX10#,JZX10#,LX100 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-22090 |
GX10#,JZX10#,LX100 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-22090 |
GX10#,JZX10#,LX100 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-22080 |
GX10#,JZX10#,LX100 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-22270G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 55401-22270E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-22100 |
GX10#,JZX10#,LX100 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55981-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90105-06228 | ||||
| 90119-06251 | ||||
| 90119-06739 | ||||
| 90179-06097 | ||||
| 90179-06278 | ||||
| 90179-08086 | ||||
| 90183-05009 | ||||
| 90183-05103 | ||||
| 90468-04175 | ||||
| 90468-04177 | ||||
| 93566-14512 | ||||
| 93567-15016 | ||||

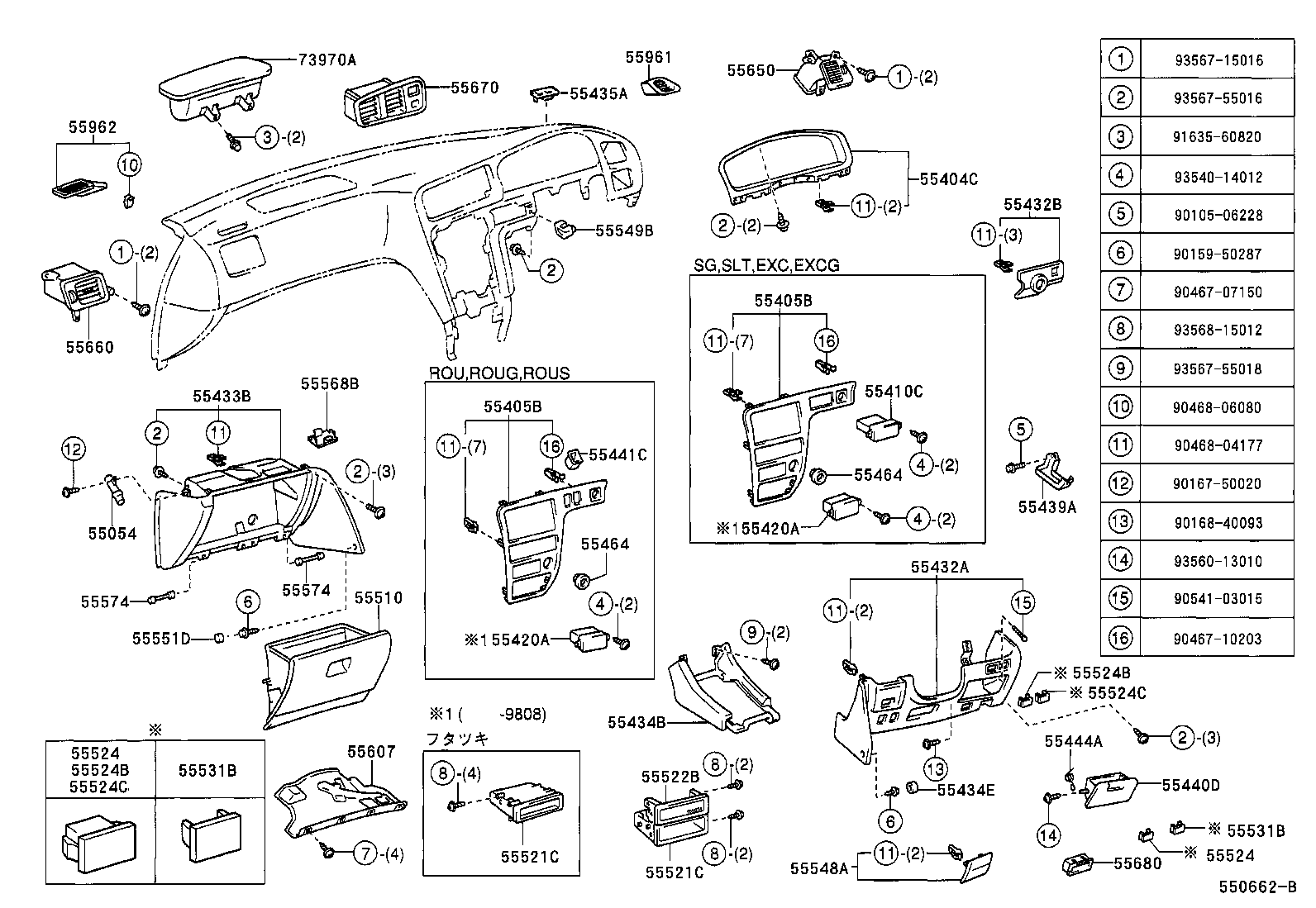

ILLUST NO. 2 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-22180 |
GX10#,JZX10#,LX100 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-22310 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 55405-22270 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55405-22300 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-22310 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) |
1 | ||
| 55405-22270 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55405-22300 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-22250 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55410-22270 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-22050 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-22050 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-22300G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55432-22300E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-22060E0 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT) ORCHID BROWN,TRIM4# |
1 | ||
| 55480-22100E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55480-22100G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT DK.SAGE,TRIM6# |
1 | ||
| 55480-22060G0 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT) DK.SAGE,TRIM6# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-22140G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55433-22140E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-22130G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 55434-22130E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55434E - CAP | ||||
| 90339-10014B1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT MD.GRAY,TRIM4#,6# |
1 | ||
| 90339-10014E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 90339-10014G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30150G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ｺﾝﾗｲﾄ),DK.SAGE,TRIM6# |
1 | ||
| 55435-30150E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ｺﾝﾗｲﾄ),ORCHID BROWN,TRIM4# |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-22060 |
GX10#,JZX10#,LX100 |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-22020G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55440-22020E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),BLACK |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 55464 - BASE, CIGARETTE LIGHTER | ||||
| 55477-20110 |
GX10#,JZX10#,LX100 |
1 | ||
| 55464 - BASE, CIGARETTE LIGHTER | ||||
| 55477-20110 |
GX10#,JZX10#,LX100 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-22040G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55501-22040E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
GX100,JZX100..ROU,SLT |
1 | ||
| 55521-16030 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
GX100,JZX100..ROU,SLT |
1 | ||
| 55521-16030 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-33030 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S);ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C) |
1 | ||
| 55522-33030 |
GX100,JZX100..ROU,SLT |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524C - COVER, SWITCH BASE HOLE, NO.4 | ||||
| 55524-22070E0 |
GX100,JZX100,105,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524-22070G0 |
GX10#,JZX100,105,LX100..EXC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070G0 |
GX100,JZX100,105,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070E0 |
GX10#,JZX100,105,LX100..EXC,SLT ORCHID,TRIM4# |
1 | ||
| 55524C - COVER, SWITCH BASE HOLE, NO.4 | ||||
| 55524-22070E0 |
GX100,JZX100,105,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55524-22070G0 |
GX10#,JZX100,105,LX100..EXC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070G0 |
GX100,JZX100,105,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55524-22070E0 |
GX10#,JZX100,105,LX100..EXC,SLT ORCHID,TRIM4# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-22160E2 |
GX10#,JZX100,105..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55531-22160G1 |
GX10#,JZX100,105..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-22160E2 |
GX10#,JZX100,105..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55531-22160G1 |
GX10#,JZX100,105..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 55551D - CAP, GLOVE COMPARTMENT DOOR | ||||
| 90339-10014E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 90339-10014G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 90339-10014B1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT MD.GRAY,TRIM4#,6# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
GX10#,JZX10#,LX100 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GX10#,JZX10#,LX100 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GX10#,JZX10#,LX100 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-22100 |
GX10#,JZX10#,LX100 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-22150G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 55650-22150E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-22150E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55660-22150G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-22180E0 |
JZX100..SLT;GX100,JZX105,LX100..EXC,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55670-22210 |
JZX100..SLT;GX10#,JZX105,LX100..EXC,SLT |
1 | ||
| 55670-22180G0 |
JZX100..SLT;GX100,JZX105,LX100 DK.SAGE,TRIM6# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101C0 |
GX100,JZX10#,LX100 BLACK,TRIM1#,4#,6# |
1 | ||
| 55680-89101C0 |
GX100,JZX10#,LX100..EXC,EXCG,SLT BLACK,TRIM4# |
1 | ||
| 55680-1705022 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT BLACK,TRIM4#,6# |
1 | ||
| 55680-89101C0 |
GX100,JZX10#,LX100..EXC,EXCG,SLT BLACK,TRIM4#,6# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-22090G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 55961-22090E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-22090E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 55962-22090G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-22010G0 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT DK.SAGE,TRIM6# |
1 | ||
| 73970-22030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT PLANT NO.Q11,DK.SAGE,TRIM6# |
1 | ||
| 73970-22040E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT PLANT NO.M21,M22,ORCHID BROWN,TRIM4# |
1 | ||
| 73970-22040G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT PLANT NO.M21,M22,DK.SAGE,TRIM6# |
1 | ||
| 73970-22010E0 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ORCHID BROWN,TRIM4# |
1 | ||
| 73970-22030E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT PLANT NO.Q11,ORCHID BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90159-50287 | ||||
| 90167-50020 | ||||
| 90168-40093 | ||||
| 90467-07150 | ||||
| 90467-10203 | ||||
| 90468-04177 | ||||
| 90468-06080 | ||||
| 90541-03015 | ||||
| 91635-60820 | ||||
| 93540-14012 | ||||
| 93560-13010 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| 93568-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
