JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

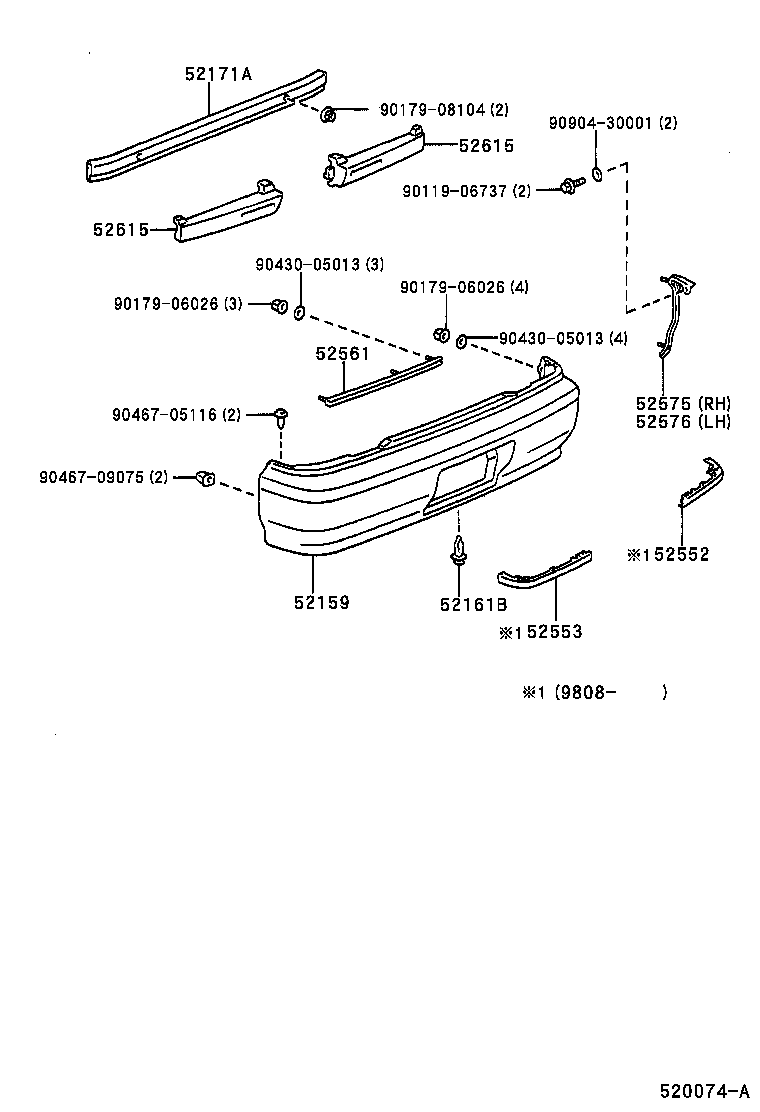

Click highlighted areas on diagram

diagram 52159 52161B 52171A 52552 52553 52561 52575 52576 52615 52615 9011906737 9017906026 9017906026 9017908104 9043005013 9043005013 9046705116 9046709075 9090430001
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-22640G0

GX100,JZX10#,LX100

GRAYISH GREEN M.M.,6N0

 1
52159-22640B0

GX100,JZX10#,LX100

SILVER ME,199

 1
52159-22640C0

GX100,JZX10#,LX100

BLACK ME,205

 1
52159-22640D0

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

WINE RED MC.,3L4

 1
52159-22640A1

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

WHITE PM.,057

 1
52159-22650A2

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

WHITE PM.,2CG

 1
52159-22640A4

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),WHITE PEARL MC.,051

 1
52159-22640A0

GX10#,JZX10#,LX100

SUPER WHITE 2,040

 1
52159-22650B2

GX100,JZX100..ATM..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S),SLVR M/GRAISH GREEN,2FJ

 1
52159-22650G2

GX10#,JZX10#,LX100

DK.GREEN MC.P.I.O.,2FF

 1
52159-22640G1

GX10#,JZX10#,LX100

DK.GREEN MC.P.I.O.,6N9

 1
52159-22640B1

GX10#,JZX10#,LX100

SILVER ME.,1C0

 1
52159-22640J0

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

DK.BLUE MC.,8L4

 1
52159-22650A3

GX10#,JZX10#,LX100

WHITE PM.,2CF

 1
52161B - PIECE, REAR BUMPER
52161-16010

GX10#,JZX10#,LX100

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-22160

GX10#,JZX10#,LX100

 1
52552 - FILLER, REAR BUMPER, RH
52552-22070

GX10#,JZX10#,LX100

 1
52553 - FILLER, REAR BUMPER, LH
52553-22070

GX10#,JZX10#,LX100

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-22140

GX10#,JZX10#,LX100

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-22080

GX10#,JZX10#,LX100

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-22080

GX10#,JZX10#,LX100

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52616-22030

GX10#,JZX10#,LX100

左側

 1
52615-22200

GX10#,JZX10#,LX100

右側

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52616-22030

GX10#,JZX10#,LX100

左側

 1
52615-22200

GX10#,JZX10#,LX100

右側

 1
Common parts
90119-06737
90179-06026
90179-08104
90430-05013
90467-05116
90467-09075
90904-30001
