JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

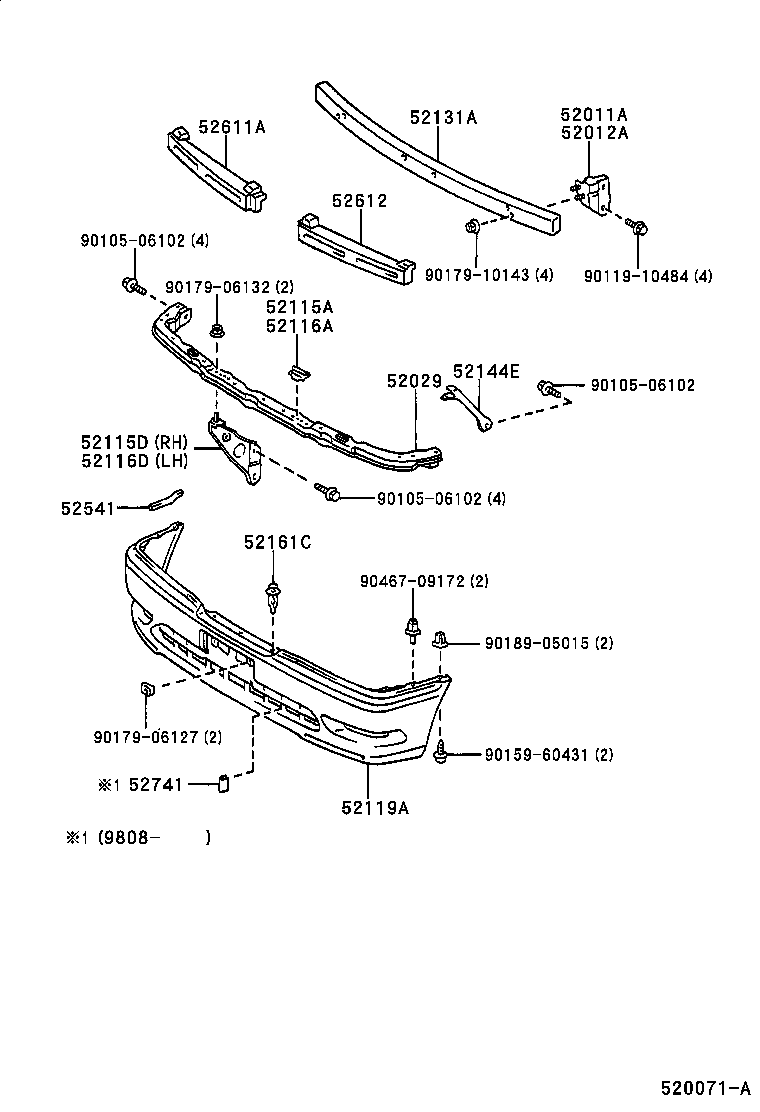

Click highlighted areas on diagram

diagram 52011A 52012A 52029 52115A 52115D 52116A 52116D 52119A 52131A 52144E 52161C 52541 52611A 52612 52741 9010506102 9010506102 9010506102 9011910484 9015960431 9017906127 9017906132 9017910143 9018905015 9046709172
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-22230

GX10#,JZX10#,LX100

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-22240

GX10#,JZX10#,LX100

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52081-22040

GX10#,JZX10#,LX100

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130

GX10#,JZX10#,LX100

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-22220

GX10#,JZX10#,LX100

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130

GX10#,JZX10#,LX100

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-22190

GX10#,JZX10#,LX100

 1
52119A - COVER, FRONT BUMPER
52119-2A010G0

GX100,JZX10#,LX100

GRAYISH GREEN M.M.,6N0

 1
52119-2A010B0

GX100,JZX10#,LX100

SILVER ME,199

 1
52119-2A010A0

GX100,JZX10#,LX100

SUPER WHITE 2,040

 1
52119-2A010D0

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

WINE RED MC.,3L4

 1
52119-2A010A1

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

WHITE PM.,057

 1
52119-2A050A3

GX10#,JZX100..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),WHITE PEARL MC.,051

 1
52119-2A010J0

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

DK.BLUE MC.,8L4

 1
52119-2A010B1

GX100,JZX10#,LX100

SILVER ME.,1C0

 1
52119-2A050J0

GX10#,JZX10#,LX100

DK.BLUE MC.,8L4

 1
52119-2A010C0

GX100,JZX10#,LX100

BLACK ME,205

 1
52119-2A050A1

GX10#,JZX10#,LX100

WHITE PM.,057

 1
52119-2A060G1

GX10#,JZX10#,LX100

DK.GREEN MC.P.I.O.,2FF

 1
52119-2A020A2

GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT

WHITE PM.,2CG

 1
52119-2A050A0

GX10#,JZX10#,LX100

SUPER WHITE 2,040

 1
52119-2A020B2

GX100,JZX100..ATM..SLT

ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L *(W), *(S),SLVR M/GRAISH GREEN,2FJ

 1
52119-2A060A2

GX10#,JZX10#,LX100

WHITE PM.,2CF

 1
52119-2A050G0

GX10#,JZX10#,LX100

DK.GREEN MC.P.I.O.,6N9

 1
52119-2A050B0

GX10#,JZX10#,LX100

SILVER ME.,1C0

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-22160

GX10#,JZX10#,LX100

 1
52144E - STAY, FRONT BUMPER, CENTER
52144-22280

GX10#,JZX10#,LX100

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GX10#,JZX10#,LX100

 5
52541 - PROTECTOR, FRONT BUMPER
52541-22040

GX10#,JZX10#,LX100

 2
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-22270

GX10#,JZX10#,LX100

 1
52611-22250

GX100,JZX10#,LX100

 1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-22030

GX100,JZX10#,LX100

 1
52612-22050

GX10#,JZX10#,LX100

 1
52741 - GARNISH, FRONT BUMPER BAR, NO.1
52741-22050

GX10#,JZX10#,LX100

 1
Common parts
90105-06102
90119-10484
90159-60431
90179-06127
90179-06132
90179-10143
90189-05015
90467-09172
