JZX100-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX100,JZX100,101,LX100

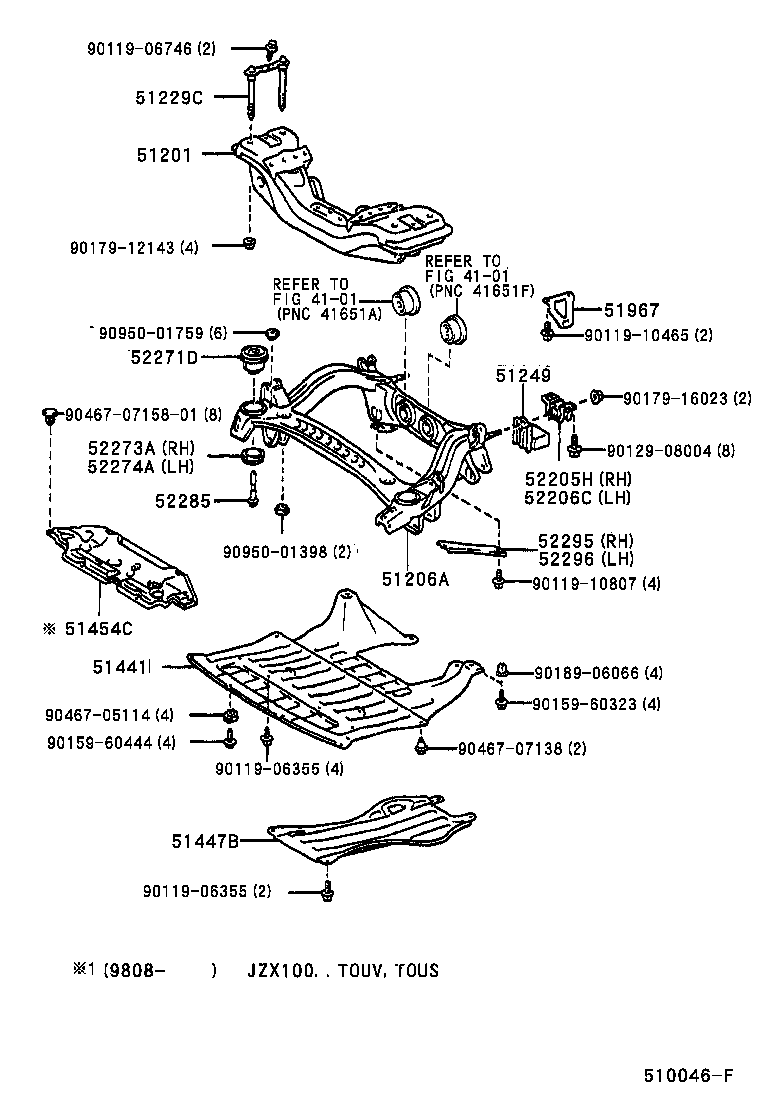

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-22909 |
GX100,JZX100,101 |
1 | ||
| 51201-22907 |
GX100,JZX100,101 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-22150 |
GX100,JZX100,101,LX100..EXC,EXCG,ROU,ROUS,SC,SLT |
1 | ||
| 51206-22151 |
GX100,JZX100,101..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 51229C - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-22060 |
GX100,JZX100,101,LX100 |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-22040 |
GX100,JZX10#,LX100 |
2 | ||
| 51249-22040 |
GX105,JZX10#,LX100..EXC,EXCG,SLT |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-22290 |
JZX100,LX100 |
1 | ||
| 51441-22300 |
GX100,JZX100,101,LX100 |
1 | ||
| 51447B - PROTECTOR, OIL PAN | ||||
| 51447-22080 |
JZX100,101,LX100 |
1 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51967-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| 52205-22090 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| 52205-22090 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-22141 |
GX105,JZX10#,LX100..EXC,EXCG,SC,SLT |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-22091 |
GX105,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52273-22091 |
GX105,JZX10#,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-22010 |
GX10#,JZX10#,LX100 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30010 |
GX10#,JZX10#,LX100 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30010 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-06746 | ||||
| 90119-10465 | ||||
| 90119-10807 | ||||
| 90129-08004 | ||||
| 90159-60323 | ||||
| 90159-60444 | ||||
| 90179-12143 | ||||
| 90179-16023 | ||||
| 90189-06066 | ||||
| 90467-05114 | ||||
| 90467-07138 | ||||
| 90467-0715801 | ||||
| 90950-01398 | ||||
| 90950-01759 | ||||
| Linked diagrams | ||||
| 4101 | ||||
