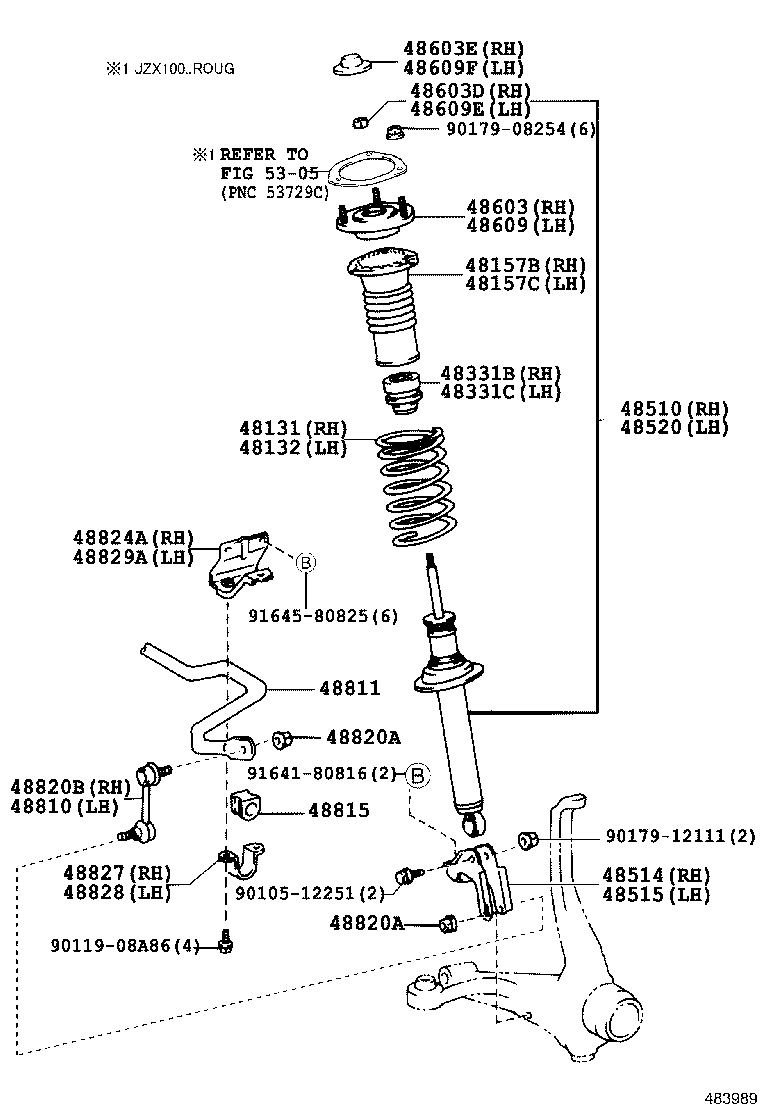

JZX100-CEPQF (1996)
Toyota Cresta
(9609- )GX100,JZX100,LX100..EXC,ROU,ROUG,ROUS,SC,SLT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2C130 |
JZX100..EXC,SLT |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2C130 |
JZX100..EXC,SLT |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-22040 |
GX100,JZX100,101,LX100 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-22040 |
GX100,JZX100,101,LX100 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-30110 |
GX10#,JZX10#,LX100 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-30110 |
GX10#,JZX10#,LX100 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-29575 |
GX100..ROU;JZX100,LX100..EXC,ROU,ROUS,SC,SLT ﾏｰｸ 48510−22460 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-22010 |
GX100,JZX100,101,LX100 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-22010 |
GX100,JZX100,101,LX100 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-29575 |
GX100..ROU;JZX100,LX100..EXC,ROU,ROUS,SC,SLT ﾏｰｸ 48510−22460 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48680-22020 |
GX100,JZX100,LX100..EXC,SLT |
1 | ||
| 48680-22020 |
GX100,JZX100,LX100..EXC,SC,SLT |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12140 |
GX100,JZX100,LX100..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 90179-12140 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT |
1 | ||
| 90179-12140 |
GX10#,JZX100,105..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90950-01659 |
GX100,JZX100,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48680-22020 |
GX100,JZX100,LX100..EXC,SC,SLT |
2 | ||
| 48680-22020 |
GX100,JZX100,LX100..EXC,SLT |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12140 |
GX100,JZX100,LX100..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 90179-12140 |
GX10#,JZX100,105..EXC,ROU,ROUG,ROUS,SLT |
1 | ||
| 90179-12140 |
GX100,JZX100,105,LX100..EXC,ROU,ROUG,SC,SLT |
1 | ||
| 48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90950-01659 |
GX100,JZX100,LX100..EXC,ROU,ROUG,ROUS,SC,SLT |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-22041 |
GX100,JZX100,101,LX100 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-22410 |
JZX100,101,LX100..EXC,EXCG,ROUG,SC,SLT |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-22210 |
GX100,JZX100,101,LX100 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
GX100,JZX100,101,LX100 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 90179-12047 |
GX10#,JZX10#,LX100 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
GX100,JZX100,101,LX100 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 90179-12047 |
GX10#,JZX10#,LX100 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-22041 |
GX100,JZX100,101,LX100 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30020 |
GX100,JZX100,101,LX100 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-22090 |
GX100,JZX100,101,LX100 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-22090 |
GX100,JZX100,101,LX100 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30030 |
GX100,JZX100,101,LX100 |
1 | ||
| Common parts | ||||
| 90105-12251 | ||||
| 90119-08A86 | ||||
| 90179-08254 | ||||
| 90179-12111 | ||||
| 91641-80816 | ||||
| 91645-80825 | ||||
| Linked diagrams | ||||
| 5305 | ||||
