JZX100-CEPQF (1996)
Toyota Cresta

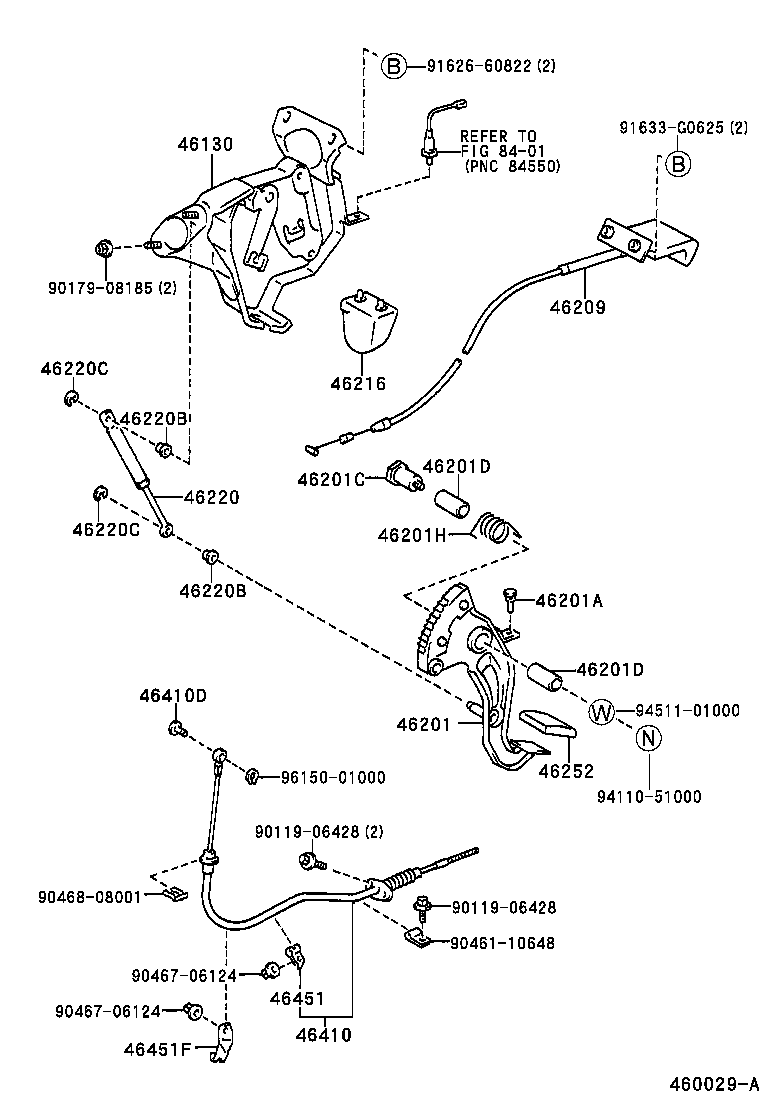

ILLUST NO. 1 OF 3(9609- )ATM..EXC,EXCG,SLT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-22100 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-22270 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10165 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46201H - SPRING, TORSION(FOR PARKING PEDAL) | ||||
| 90949-03052 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-22081E0 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) ORCHID,TRIM4# |
1 | ||
| 46209-22081G0 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) SAGE,TRIM6# |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-07044 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-22010 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46220B - BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90386-08059 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46220B - BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90386-08059 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46220C - RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 96160-00700 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46220C - RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 96160-00700 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-22250 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT |
1 | ||
| 46410-22230 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-22090 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| 46451-22080 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-22040 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90179-08185 | ||||
| 90461-10648 | ||||
| 90467-06124 | ||||
| 90468-08001 | ||||
| 91626-60822 | ||||
| 91633-G0625 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

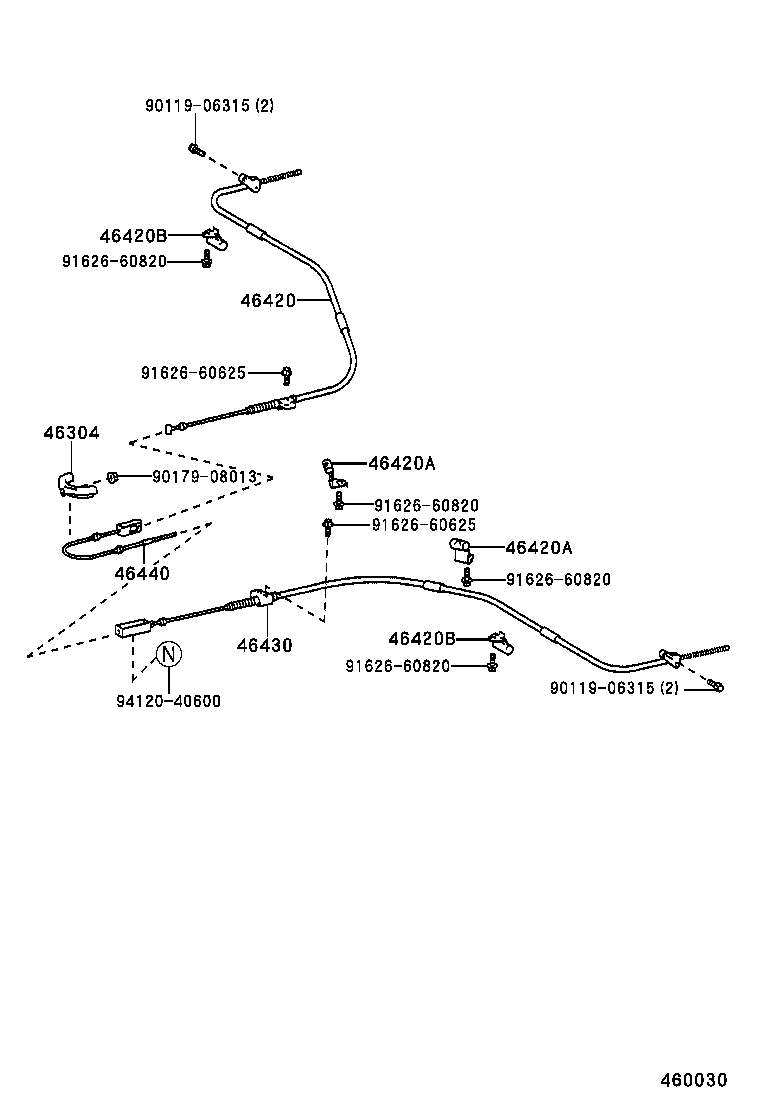

ILLUST NO. 2 OF 3(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30560 |
GX10#,JZX10#,LX100 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-22061 |
GX10#,JZX10#,LX100 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-22061 |
GX10#,JZX10#,LX100 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-22070 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 46452-22040 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-22070 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 46452-22040 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30130 |
GX10#,JZX10#,LX100 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-22030 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90179-08013 | ||||
| 91626-60625 | ||||
| 91626-60820 | ||||
| 94120-40600 | ||||

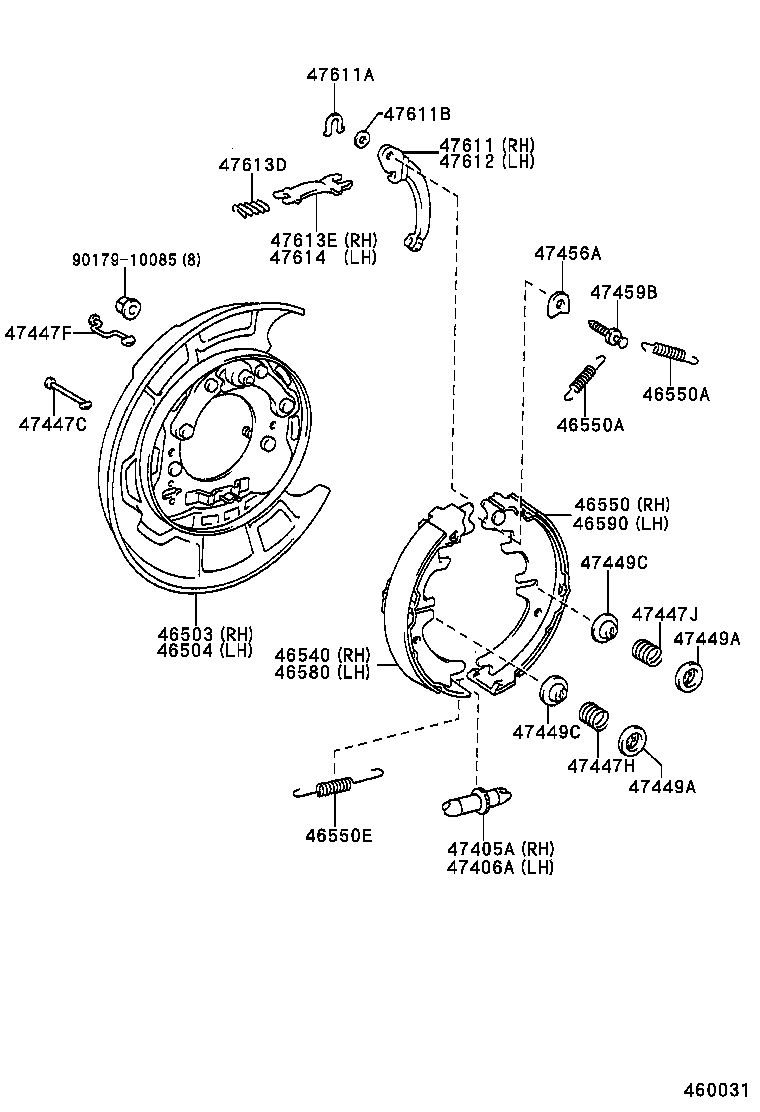

ILLUST NO. 3 OF 3(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-22060 |
GX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-22060 |
GX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GX10#,JZX10#,LX100 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GX10#,JZX10#,LX100 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GX10#,JZX10#,LX100 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-30010 |
GX10#,JZX10#,LX100 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22030 |
GX10#,JZX10#,LX100 |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-14049 |
GX10#,JZX10#,LX100 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
GX10#,JZX10#,LX100 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX10#,JZX10#,LX100 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX10#,JZX10#,LX100 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GX10#,JZX10#,LX100 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GX10#,JZX10#,LX100 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
GX10#,JZX10#,LX100 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GX10#,JZX10#,LX100 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GX10#,JZX10#,LX100 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
GX10#,JZX10#,LX100 厚さ=0.3 |
1 | ||
| 90564-09185 |
GX10#,JZX10#,LX100 厚さ=0.6 |
1 | ||
| 90564-09186 |
GX10#,JZX10#,LX100 厚さ=0.9 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GX10#,JZX10#,LX100 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
GX10#,JZX10#,LX100 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
GX10#,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90179-10085 | ||||
