JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )JZX100,101..EXC,EXCG,ROU,ROUS,SLT

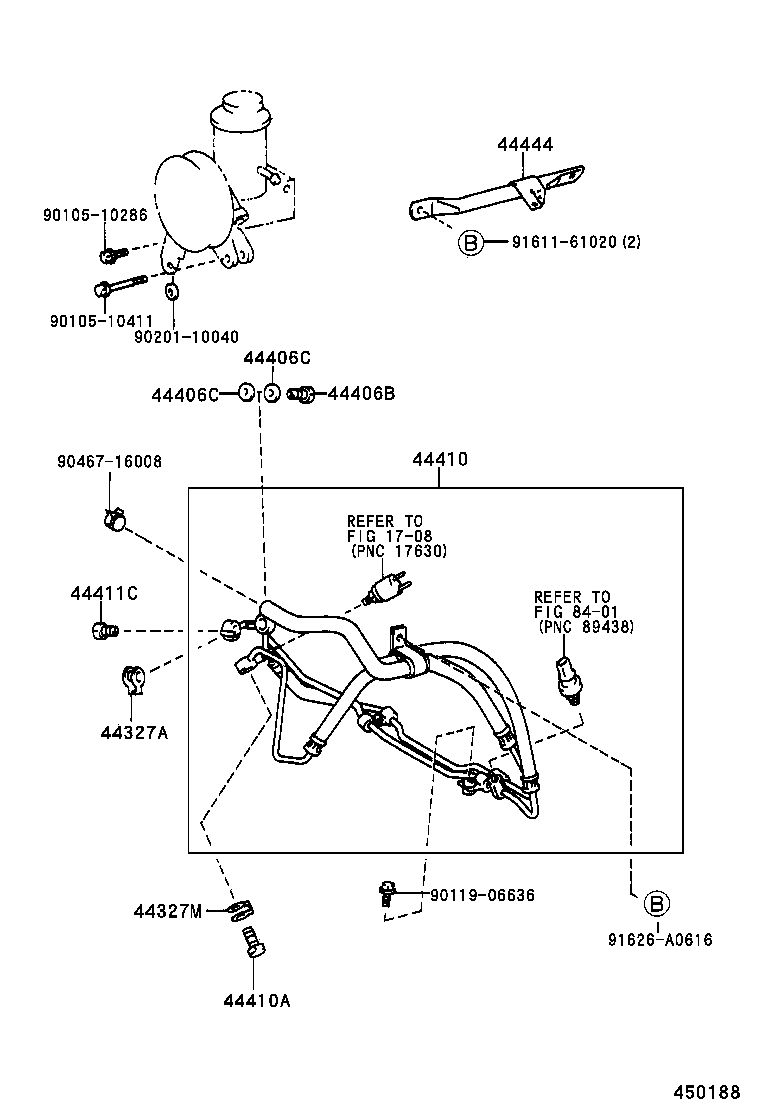

Click highlighted areas on diagram

diagram 1708 44327A 44327M 44406B 44406C 44406C 44410 44410A 44411C 44444 8401 9010510286 9010510411 9011906636 9020110040 9046716008 9161161020 91626A0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

JZX10#,LX100

 1
44327-30030

GX100,JZX10#,LX100

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JZX10#

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
96341-11703

JZX100,101

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZX10#

 2
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZX10#

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22520

JZX100,101..EXC,EXCG,ROU,ROUS,SLT

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

JZX10#

 1
90401-16034

JZX10#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

JZX10#

 1
44444 - STAY, PUMP, REAR
44444-30121

JZX10#..EXC,EXCG,ROU,ROUS,SLT

 1
Common parts
90105-10286
90105-10411
90119-06636
90201-10040
90467-16008
91611-61020
91626-A0616
Linked diagrams
1708
8401
