JZX100-CEPQF (1996)
Toyota Cresta

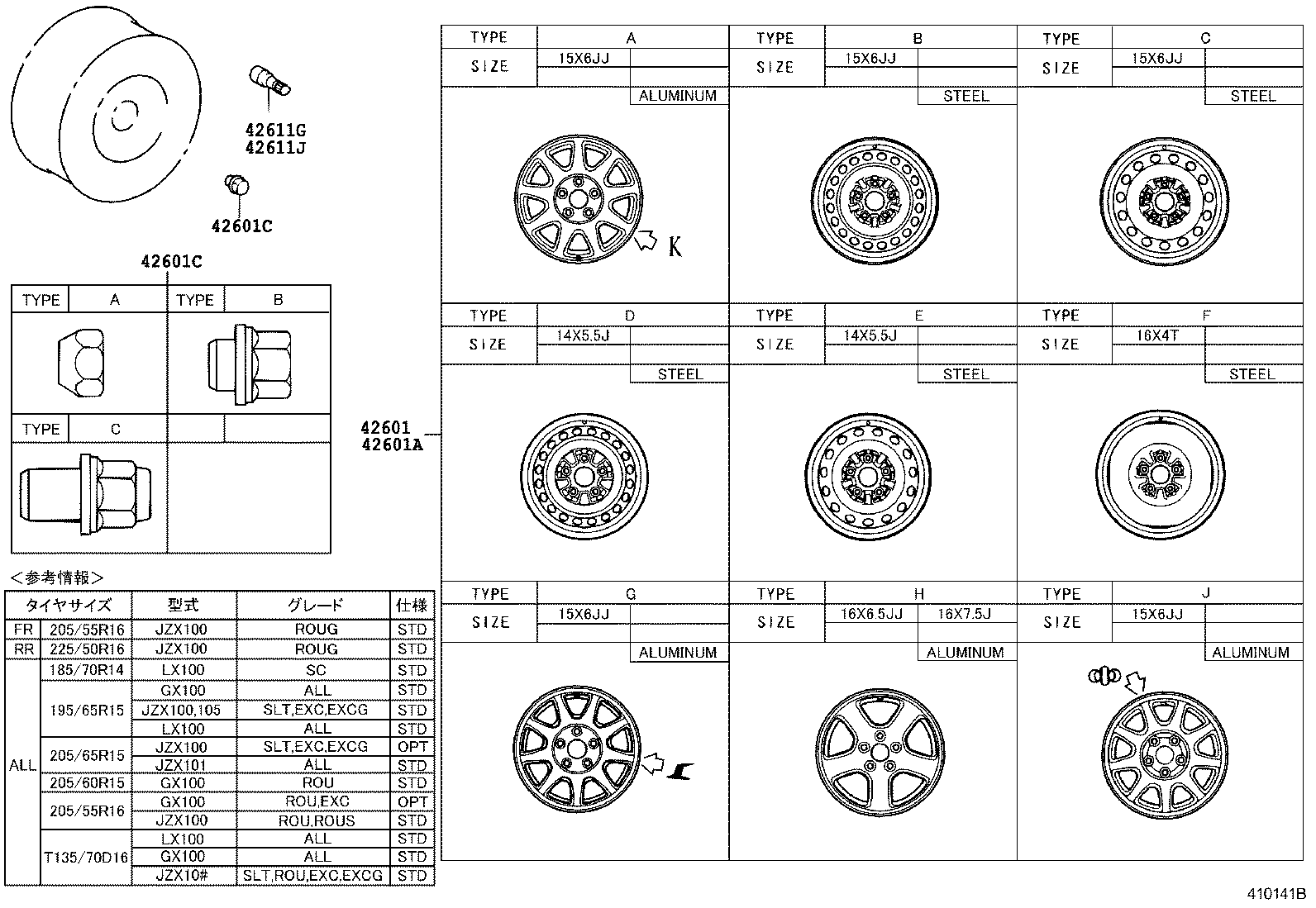

ILLUST NO. 1 OF 4(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-22870 |
GX100,JZX100..ATM..SLT 15X6JJ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) & TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22770 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22790 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22830 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22680 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22860 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||

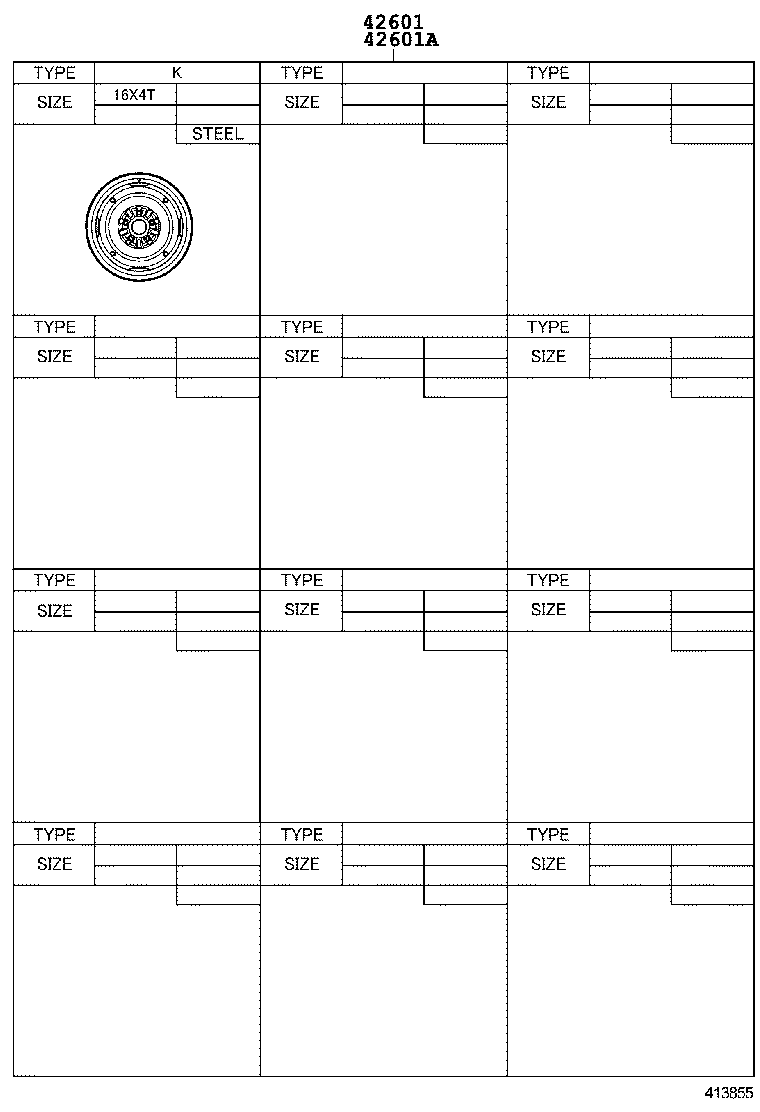

| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-22770 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22820 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT 16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22790 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22680 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22821 |
GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT 16X4T,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22830 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22860 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-28210 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT 16X4T,TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SC,SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90942-01062 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SC,SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 90942-01062 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GX10#,JZX10#,LX100 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
GX10#,JZX10#,LX100 |
1 | ||
ILLUST NO. 3 OF 4(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

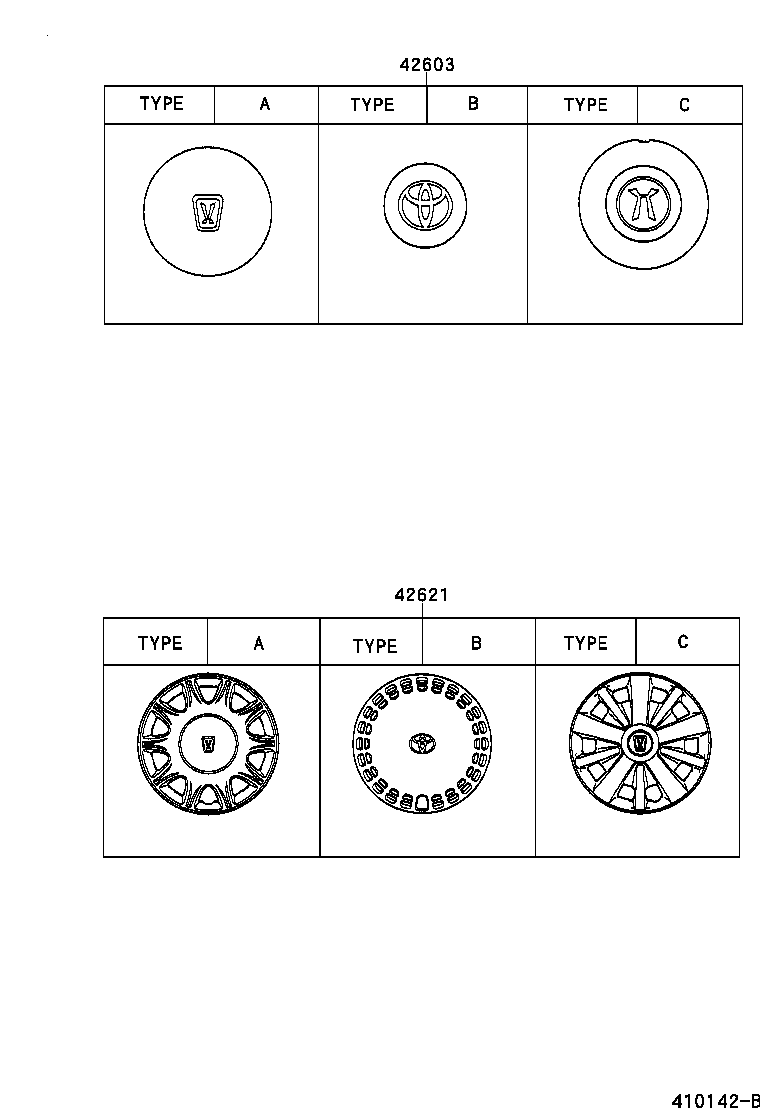

| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-22400 |
GX100,JZX10#,LX100..EXC,EXCG,SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42603-22440 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT *ALU,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42603-22460 |
GX10#,JZX100..SLT *ALU,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L) & TYPE C:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-22330 |
GX100,JZX100,105,LX100..SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42602-22390 |
GX10#,JZX100,105,LX100..ROU,SLT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
ILLUST NO. 4 OF 4(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03041 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03102 | ||||
| 90942-03108 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03161 | ||||
| 90942-03167 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
ILLUST NO. 2 OF 4(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-22870 |
GX100,JZX100..ATM..SLT 15X6JJ,ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S) & TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22770 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22790 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22830 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22680 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42611-22860 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-22770 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22820 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT 16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22790 |
JZX100..SLT;GX10#,JZX105,LX100..ROU,SLT 15X6JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22680 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22821 |
GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT 16X4T,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22830 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-22860 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT 15X6JJ,TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-28210 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SC,SLT 16X4T,TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
