JZX100-CEPQF (1996)
Toyota Cresta
ILLUST NO. 1 OF 2(9609- )JZX10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-17040 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 04437-30060 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-17030 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 04437-30050 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-30120 |
JZX10#..EXC,EXCG,ROUS,SLT |
1 | ||
| 42330-22030 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 42330A - BOLT(FOR REAR DRIVE SHAFT) | ||||
| 90110-10016 |
JZX10#..EXC,EXCG,ROU,ROUS,SLT *10−1.25PX53.4−34.7 |
12 | ||
| 90110-10016 |
JZX100,105..EXC,EXCG,ROU,SLT *10−1.25PX53.4−34.7 |
12 | ||
| 90110-10015 |
JZX100,105..EXC,EXCG,ROU,SLT *10−1.5PX53.4−32.4 |
12 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-22110 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 42340-30120 |
JZX10#..EXC,EXCG,ROUS,SLT |
1 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22030 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 42344-30030 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14010 |
GX10#,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT 内径=35.75 |
2 | ||
| 42345-30080 |
JZX10#..EXC,EXCG,ROUS,SLT 内径=36.1 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01339 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 42345-30070 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14010 |
GX10#,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT 内径=35.75 |
2 | ||
| 42345-30080 |
JZX10#..EXC,EXCG,ROUS,SLT 内径=36.1 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-30070 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 42345-16100 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-29155 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 42370-39135 |
JZX10#..EXC,EXCG,ROUS,SLT |
1 | ||
| 42370-29156 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42380-29055 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 42380-39055 |
JZX10#..EXC,EXCG,ROUS,SLT |
1 | ||
| 42380-29056 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42453-50010 |
GX100..MTM;GX105,JZX10#,LX100 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 42453-50010 |
GX100..MTM;GX105,JZX10#,LX100 |
1 | ||
| 43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE | ||||
| 43409-22020 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 43409-30030 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 43409F - RING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) | ||||
| 90520-26028 |
JZX10# |
2 | ||
| 43446 - COVER, REAR AXLE INBOARD JOINT | ||||
| 43446-22010 |
JZX100,105..EXC,EXCG,ROU,SLT |
2 | ||
| 43446-30010 |
JZX10#..EXC,EXCG,ROUS,SLT |
2 | ||
| 43489 - WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT | ||||
| 43489-17010 |
JZX100,105..EXC,EXCG,ROU,SLT |
6 | ||
| 43489-30020 |
JZX10#..EXC,EXCG,ROUS,SLT |
6 | ||
| 43489 - WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT | ||||
| 43489-17010 |
JZX100,105..EXC,EXCG,ROU,SLT |
6 | ||
| 43489-30020 |
JZX10#..EXC,EXCG,ROUS,SLT |
6 | ||

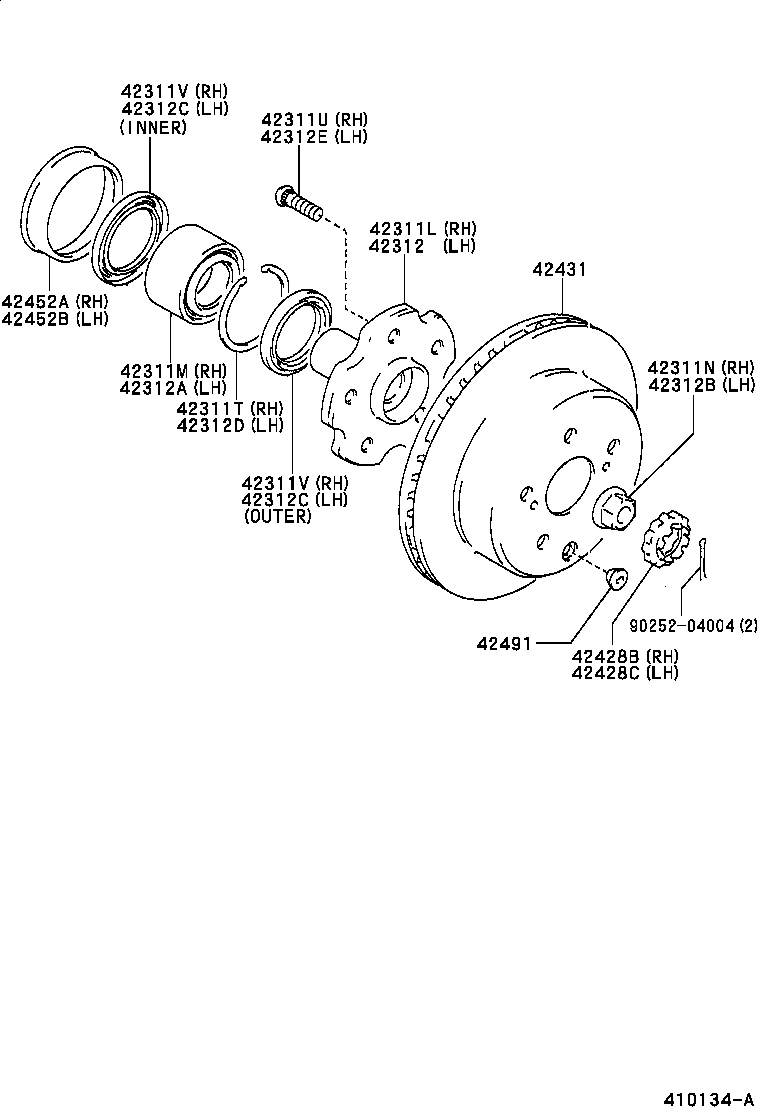

ILLUST NO. 2 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-43005 |
GX10#,JZX10#,LX100 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-26006 |
GX10#,JZX10#,LX100 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-85002 |
GX10#,JZX10#,LX100 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-57001 |
GX10#,JZX10#,LX100 外側 |
1 | ||
| 90311-63001 |
GX10#,JZX10#,LX100 内側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-57001 |
GX10#,JZX10#,LX100 外側 |
1 | ||
| 90311-63001 |
GX10#,JZX10#,LX100 内側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-22170 |
GX10#,JZX10#,LX100 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-43005 |
GX10#,JZX10#,LX100 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-26006 |
GX10#,JZX10#,LX100 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-57001 |
GX10#,JZX10#,LX100 外側 |
1 | ||
| 90311-63001 |
GX10#,JZX10#,LX100 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-57001 |
GX10#,JZX10#,LX100 外側 |
1 | ||
| 90311-63001 |
GX10#,JZX10#,LX100 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-85002 |
GX10#,JZX10#,LX100 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-24010 |
GX10#,JZX10#,LX100 |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-24010 |
GX10#,JZX10#,LX100 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-22180 |
GX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT |
2 | ||
| 42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH | ||||
| 42451-50010 |
GX100..MTM;GX105,JZX10#,LX100 |
1 | ||
| 42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH | ||||
| 42451-50010 |
GX100..MTM;GX105,JZX10#,LX100 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| Common parts | ||||
| 90252-04004 | ||||
