JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )JZX100..EXC,EXCG,ROU,ROUS,SLT

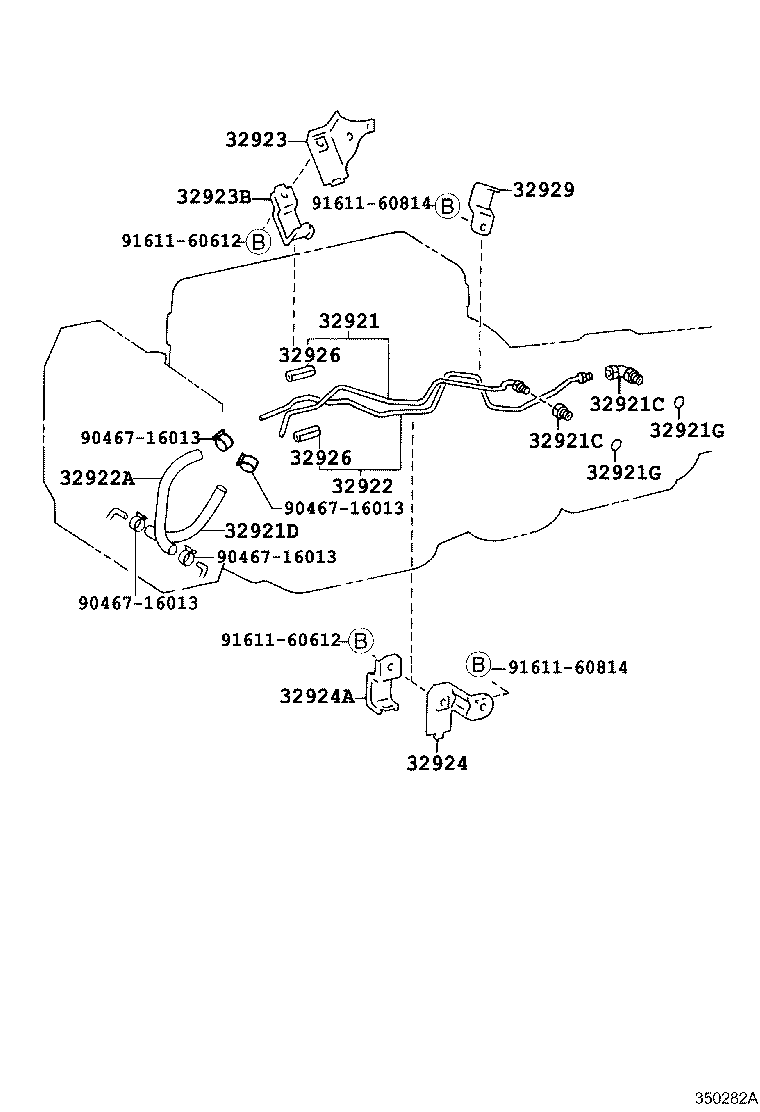

Click highlighted areas on diagram

A340E,A651E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923B 32924 32924A 32926 32926 32929 9046716013 9046716013 9046716013 9046716013 9161160612 9161160612 9161160814 9161160814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22720

JZX100..EXC,EXCG,ROU,ROUS,SLT

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16029

JZX100,101

ｲﾝﾚｯﾄ

 1
90407-16009

GX105,JZX10#

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16029

JZX100,101

ｲﾝﾚｯﾄ

 1
90407-16009

GX105,JZX10#

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17110

JZX10#..EXC,EXCG,ROU,ROUS,SLT

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX105,JZX10#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX105,JZX10#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22720

JZX100..EXC,EXCG,ROU,ROUS,SLT

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-22360

JZX100,101..EXC,EXCG,ROU,ROUS,SLT

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924-22090

JZX10#..EXC,EXCG,ROU,ROUS,SLT

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-30160

JZX10#

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-30200

JZX100,101

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-30160

JZX10#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

JZX10#..EXC,EXCG,ROU,SLT

長さ=35,内径=10,NO.1

 2
32926-30020

GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT

長さ=35,内径=10,NO.1

 2
32926-30060

JZX10#

長さ=35,内径=10,NO.2

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

JZX10#..EXC,EXCG,ROU,SLT

長さ=35,内径=10,NO.1

 2
32926-30020

GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT

長さ=35,内径=10,NO.1

 2
32926-30060

JZX10#

長さ=35,内径=10,NO.2

 4
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-30140

JZX10#

 1
Common parts
90467-16013
91611-60612
91611-60814
