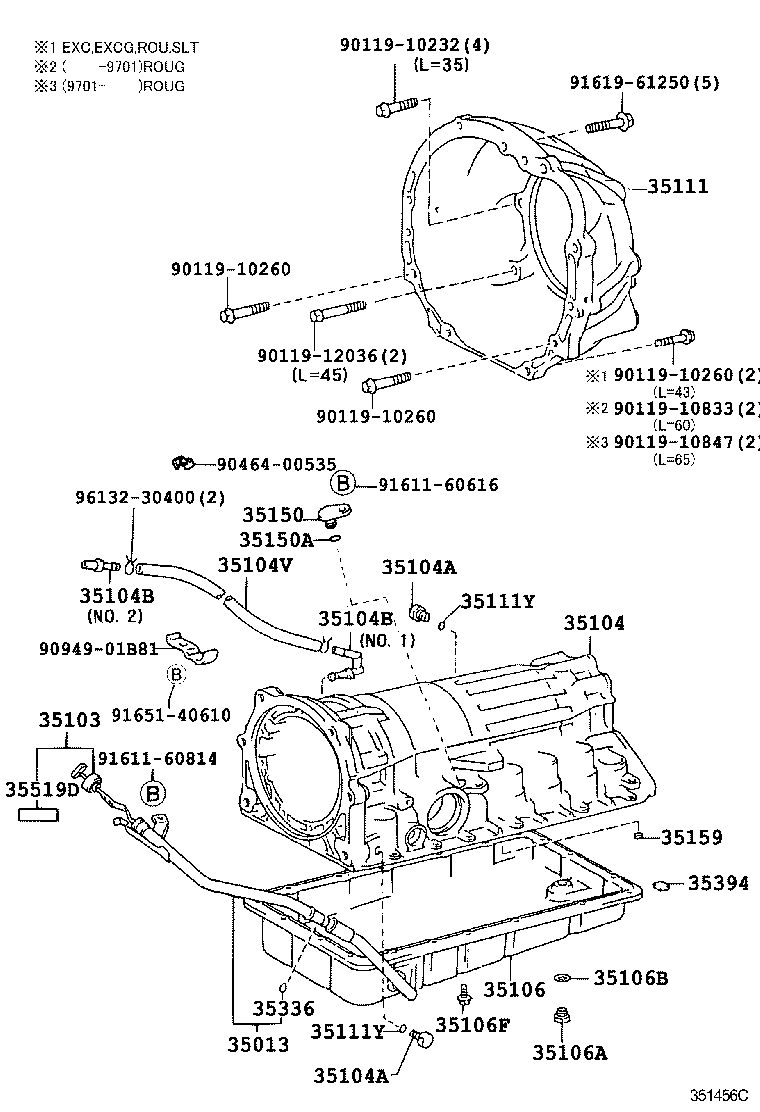

Toyota Cresta JZX100 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22350	JZX100..EXC,EXCG,ROU,ROUS,SLT	09/1996 - 06/2001	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-22380	JZX100..EXC,EXCG,ROU,SLT	09/1996 - 05/1997	1
35103-22381	JZX100..EXC,EXCG,ROU,SLT	05/1997 - 06/2001	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22070	JZX100..EXC,EXCG,SLT ｱﾘ(VSC)	08/2000 - 06/2001	1
35104-30170	JZX100,101..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 08/2000	1
35104-30170	JZX100..EXC,EXCG,SLT	08/2000 - 06/2001	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	GX100,JZX100,101,LX100..ATM	09/1996 - 08/1998	2
90341-08001	GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT	08/1998 - 06/2001	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	GX100,JZX100,101,LX100..ATM	09/1996 - 08/1998	2
90341-08001	GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT	08/1998 - 06/2001	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	JZX10# NO.1	09/1996 - 08/1998	1
90930-03099	JZX100,105..EXC,EXCG,SLT NO.2	12/2000 - 06/2001	1
90930-03099	GX105,JZX10# NO.2	09/1996 - 02/1999	1
90930-03099	JZX10# NO.2	02/1999 - 12/2000	1
90930-03168	JZX100..EXC,EXCG,SLT ｱﾘ(VSC),NO.2	12/2000 - 06/2001	1
90930-03098	GX10#,JZX10# NO.1	08/1998 - 06/2001	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098	JZX10# NO.1	09/1996 - 08/1998	1
90930-03099	JZX100,105..EXC,EXCG,SLT NO.2	12/2000 - 06/2001	1
90930-03099	GX105,JZX10# NO.2	09/1996 - 02/1999	1
90930-03099	JZX10# NO.2	02/1999 - 12/2000	1
90930-03168	JZX100..EXC,EXCG,SLT ｱﾘ(VSC),NO.2	12/2000 - 06/2001	1
90930-03098	GX10#,JZX10# NO.1	08/1998 - 06/2001	1
35104V - HOSE (FOR BREATHER PLUG)
90445-10020	GX105,JZX10#	09/1996 - 02/1999	1
90445-10020	JZX10#	02/1999 - 06/2001	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30130	JZX100..EXC,EXCG,SLT ｱﾘ(VSC)	08/1998 - 06/2001	1
35106-30180	JZX100..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 06/2001	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10017	JZX10#	09/1996 - 05/1997	1
90341-10018	GX10#,JZX10#	08/1998 - 06/2001	1
90341-10018	JZX10#	05/1997 - 08/1998	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	GX100,JZX100,101,LX100..ATM	09/1996 - 05/1997	1
35178-50010	JZX10#	05/1997 - 08/1998	1
35178-50010	GX10#,JZX10#	08/1998 - 06/2001	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513	GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 06/2001	19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22081	JZX10#..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 06/2001	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	GX10#,JZX10#,LX100..ATM..(EXC,EXCG,ROU,ROUG,SC,SLT)	09/1996 - 06/2001	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	GX10#,JZX10#,LX100..ATM..(EXC,EXCG,ROU,ROUG,SC,SLT)	09/1996 - 06/2001	2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010	GX105,JZX100,101..EXC,EXCG,ROUG,SLT	08/1998 - 08/2000	1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012	GX105,JZX100,101..EXC,EXCG,ROUG,SLT	08/1998 - 08/2000	1
35159 - GASKET, BRAKE DRUM
35159-30010	GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT	09/1996 - 06/2001	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	GX10#,JZX10#,LX100..ATM	09/1996 - 06/2001	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	JZX100,101	09/1996 - 06/2001	3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20020	JZX10#	09/1996 - 05/1997	1
35519-30010	JZX10#	05/1997 - 08/1998	1
35519-30010	GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT	06/1999 - 06/2001	1
35519-30010	GX10#,JZX10#	08/1998 - 06/1999	1
Common parts
90119-10232
90119-10260
90119-10833
90119-10847
90119-12036
90464-00535
90949-01B81
91611-60616
91611-60814
91619-61250
91651-40610
96132-30400

JZX100-CEPQF (1996)

(9609- )JZX100,101..EXC,EXCG,ROU,ROUG,SLT
