JZX100-CEPQF (1996)
Toyota Cresta
(9609- )GX100,JZX100,101,LX100..ATM..EXC,EXCG,SC,SLT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-22010 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33560-22011 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33058B - SEAT, SHIFT LEVER(FOR BRACKET, SHIFT LOCK SOLENOID) | ||||
| 33597-22040 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-22320 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-22030 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-22230G1 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A), *(C),DK,SAGE,TRIM6# |
1 | ||
| 33542-22220E0 |
GX10#,JZX100,105,LX100..ATM..SLT ORCHID BROWN,TRIM4# |
1 | ||
| 33542-22230E0 |
GX10#,JZX100..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L, FOUR L *(L),ORCHID BROWN,TRIM4# |
1 | ||
| 33542-22220G0 |
GX10#,JZX100,105,LX100..ATM..(SC,SLT) DK.SAGE,TRIM6# |
1 | ||
| 33542-22230G1 |
GX100,JZX100..ATM..SLT ｽ-ﾊﾟ-ﾙ-ｾﾝﾄ L ﾎﾜｲﾄﾊﾞ-ｼﾞﾖﾝ *(W), *(S),DK,SAGE,TRIM6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22230 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
GX10#,JZX10#,LX100..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04053 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-22060 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-22150 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-22050 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22080E0 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT) ORCHID BROWN,TRIM4# |
1 | ||
| 33623-22080G0 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) DK.SAGE,TRIM6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 90256-02004 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33065-22010 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90503-07001 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04011 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GX10#,JZX10#,LX100..ATM |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-22050 |
JZX100,101,LX100..EXC,EXCG,SC,SLT |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22020 |
GX100,JZX100,101,LX100..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90560-08091 |
GX10#,JZX10#,LX100..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22020 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22020 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
2 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22020 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GX100,JZX100,101,LX100..ATM |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GX100,JZX100,101,LX100..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22070 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-22010 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 33502-22390 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22120 |
GX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-22130 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-22040 |
GX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT) |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08001 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 93315-14008 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||

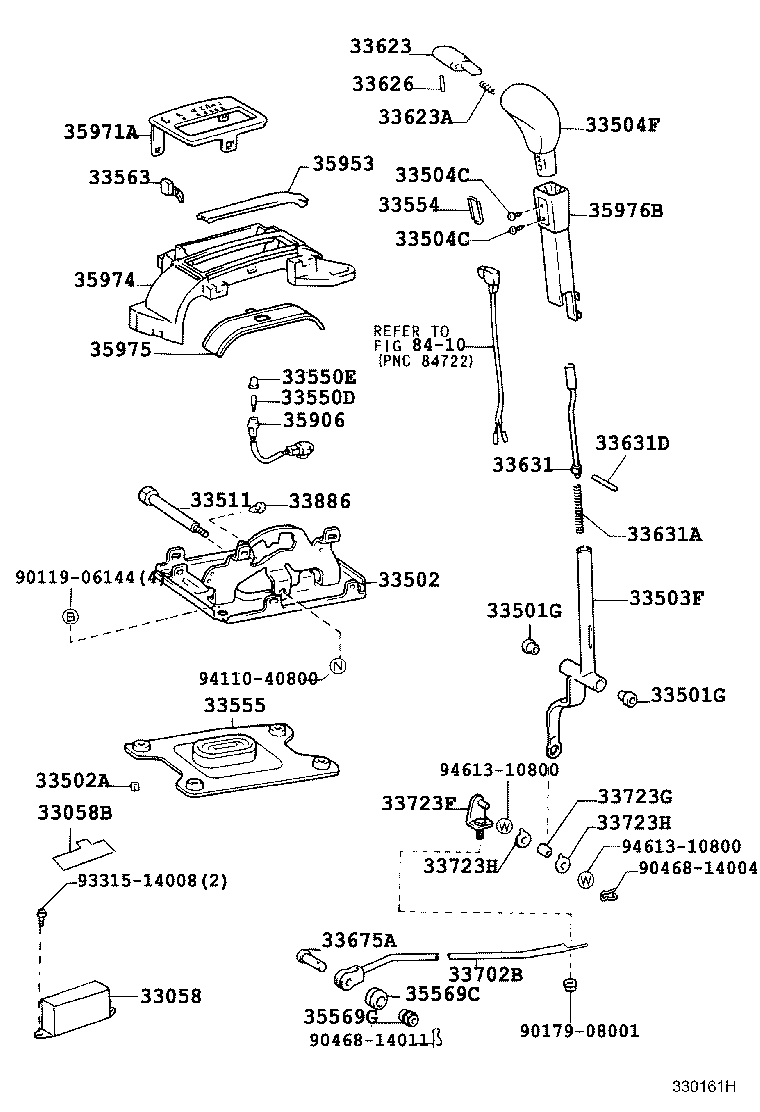

| Linked diagrams | ||||
| 8410 | ||||
