JZX100-CEPQF (1996)
Toyota Cresta

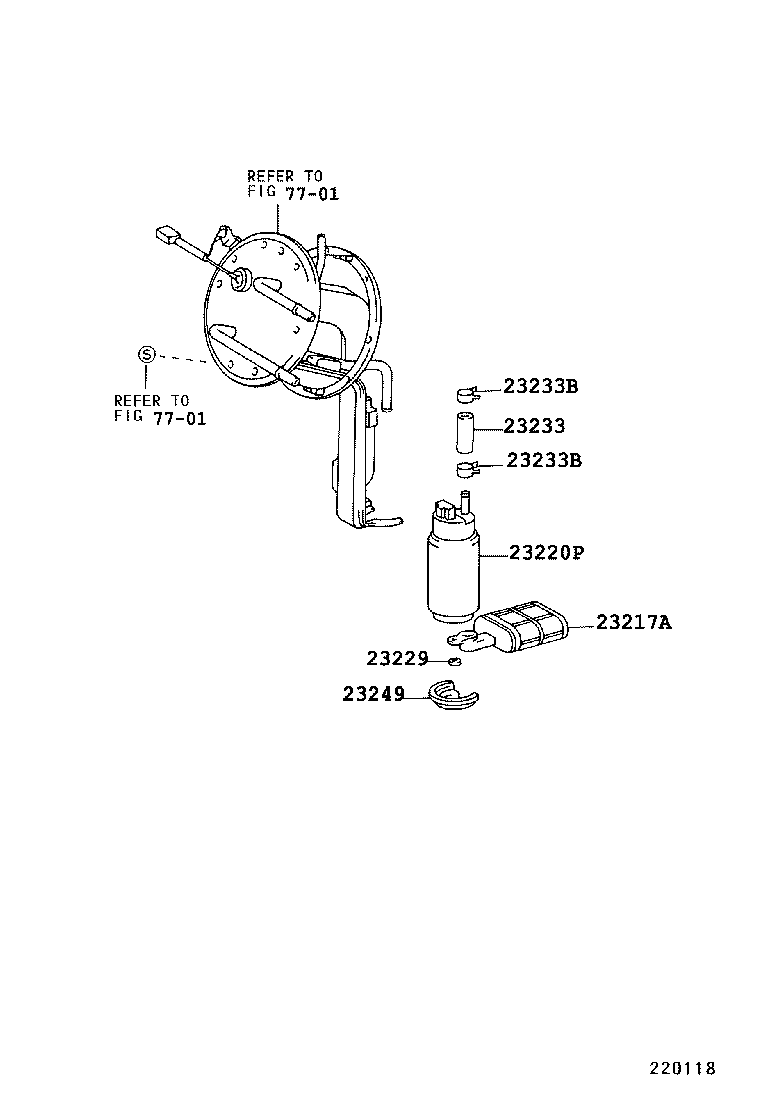

ILLUST NO. 2 OF 3(9609- )1JZ#,2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46011 |
1JZGE..JZX100,105 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
1JZGE..JZX100,105 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23239-16010 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23249-74610 |
1JZ#,2JZGE..JZX10# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||

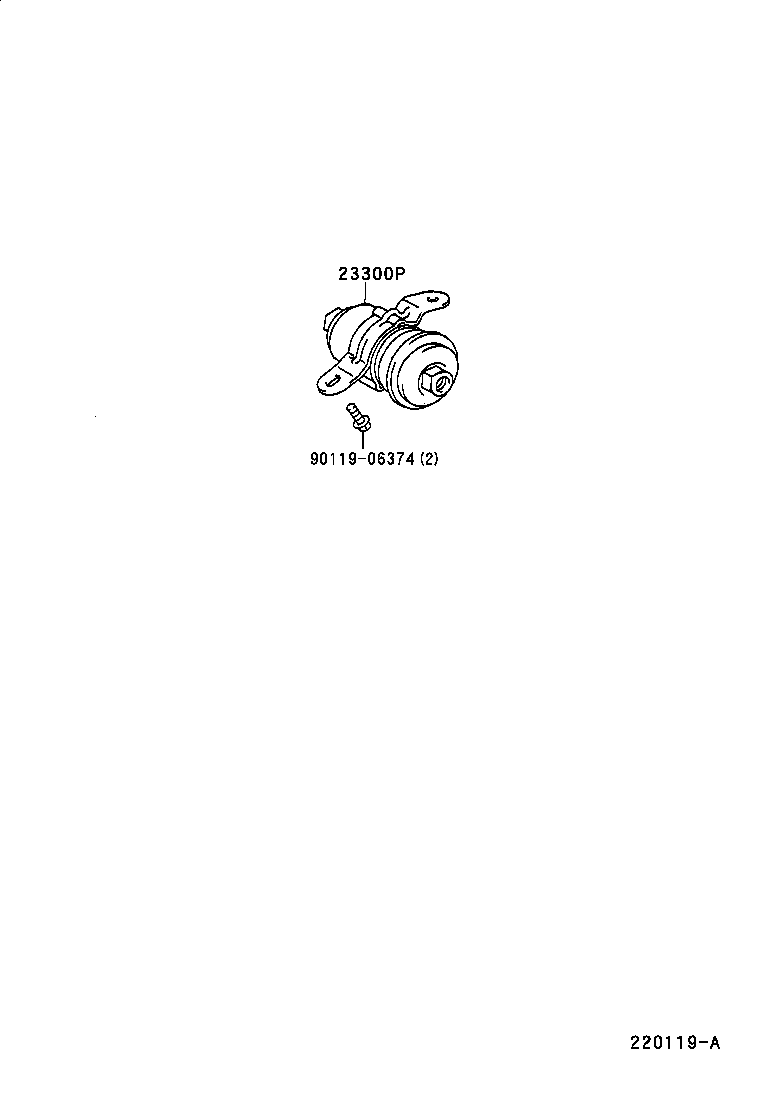

ILLUST NO. 3 OF 3(9609- )1JZ#,2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-46050 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23300-46050 |
1JZ#,2JZGE..JZX10# |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||

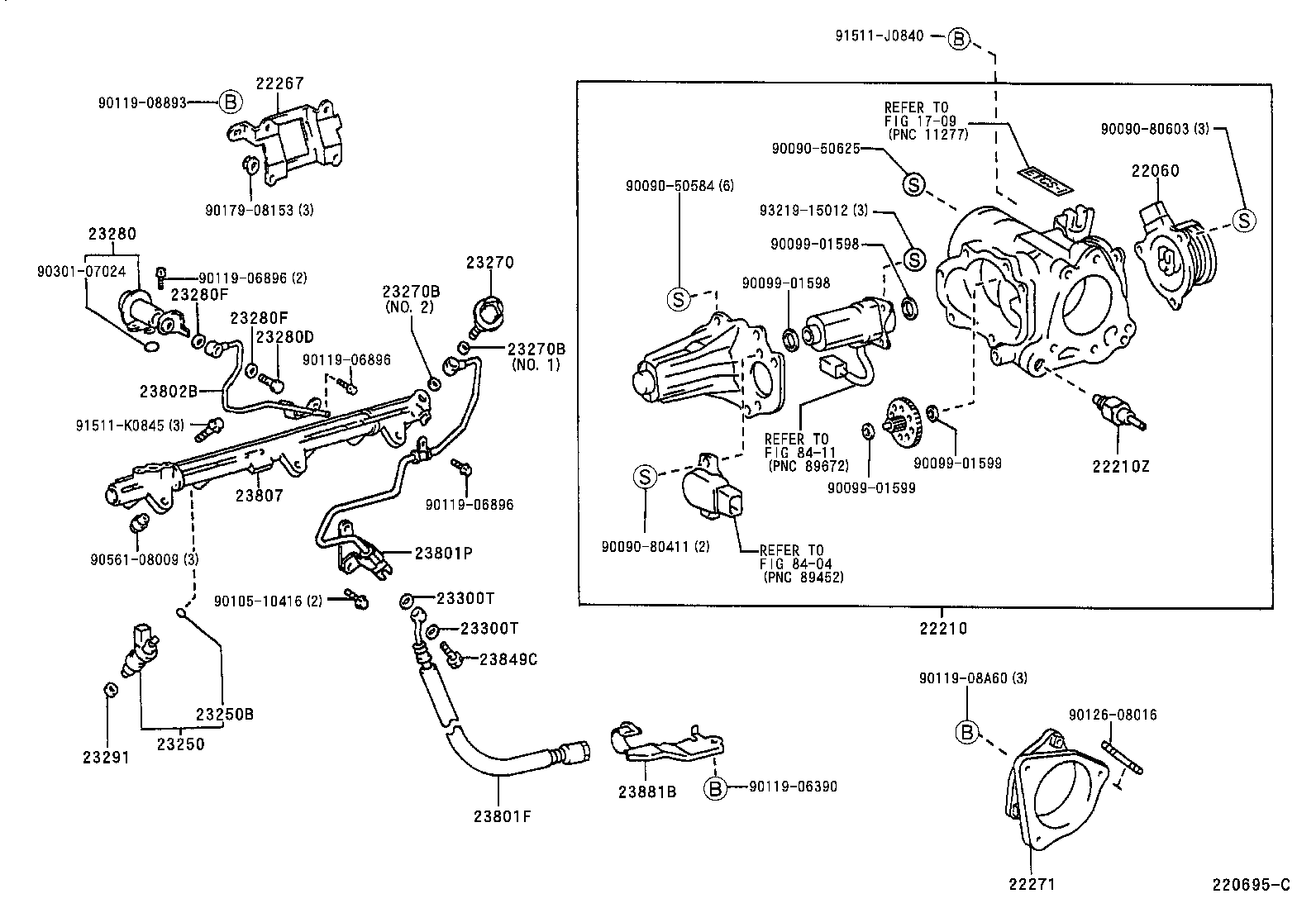

ILLUST NO. 1 OF 3(9808- )1JZGE..JZX100
MARK 22030-46140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22060 - LEVER ASSY, THROTTLE W/SENSOR | ||||
| 22060-46030 |
1JZGE..JZX100 |
1 | ||
| 22060-46031 |
1JZGE..JZX100 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-46340 |
1JZGE..JZX100,105 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46370 |
1JZGE..JZX100..EXC,EXCG,ROU,SLT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46340 |
1JZGE..JZX100,105..EXC,SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46360 |
1JZGE..JZX100 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22030-46140 |
1JZGE..JZX100 MARK 22030-46140 |
1 | ||
| 22210Z - THERMOSTAT, MANIFOLD | ||||
| 90916-03105 |
1JZGE..JZX100,105 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-46040 |
1JZGE..JZX100 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-46050 |
1JZGE..JZX100 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-46080 |
1JZGE..JZX100,105 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1JZ#,2JZGE..JZX10# |
6 | ||
| 90301-07001 |
1JZ#,2JZGE..JZX10# |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46021 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14008 |
1JZGE,2JZGE..JZX10# NO.1 |
1 | ||
| 90430-12026 |
1JZ#,2JZGE..JZX10# NO.2 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14008 |
1JZGE,2JZGE..JZX10# NO.1 |
1 | ||
| 90430-12026 |
1JZ#,2JZGE..JZX10# NO.2 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-46010 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-10038 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
1JZGE,2JZGE..JZX10# |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
1JZGE,2JZGE..JZX10# |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-46010 |
1JZGE,2JZGE..JZX10# |
6 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01410 |
1JZGE,2JZGE..JZX100,101 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-46070 |
1JZGE..JZX100,105 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-46070 |
1JZGE..JZX100,105 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-46040 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12029 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-46030 |
1JZ#,2JZGE..JZX100,101 |
1 | ||
| Common parts | ||||
| 90090-50584 | ||||
| 90090-50625 | ||||
| 90090-80411 | ||||
| 90090-80603 | ||||
| 90099-01598 | ||||
| 90099-01599 | ||||
| 90105-10416 | ||||
| 90119-06390 | ||||
| 90119-06896 | ||||
| 90119-08893 | ||||
| 90119-08A60 | ||||
| 90126-08016 | ||||
| 90179-08153 | ||||
| 90301-07024 | ||||
| 90561-08009 | ||||
| 91511-J0840 | ||||
| 91511-K0845 | ||||
| 93219-15012 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8404 | ||||
| 8411 | ||||

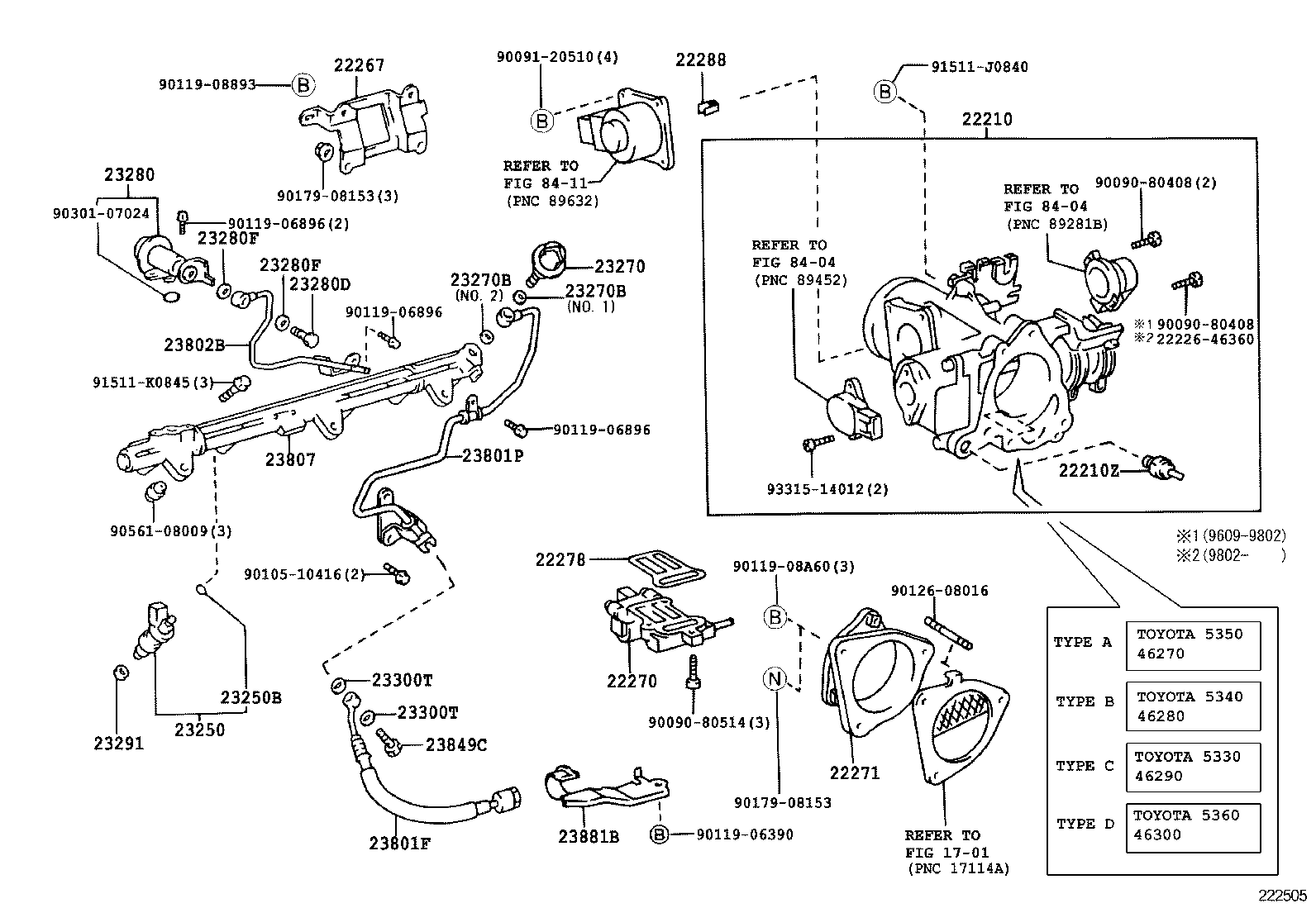

ILLUST NO. 1 OF 3(9609- )1JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-46340 |
1JZGE..JZX100,105 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46370 |
1JZGE..JZX100..EXC,EXCG,ROU,SLT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46340 |
1JZGE..JZX100,105..EXC,SLT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22210-46360 |
1JZGE..JZX100 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 22030-46140 |
1JZGE..JZX100 MARK 22030-46140 |
1 | ||
| 22210Z - THERMOSTAT, MANIFOLD | ||||
| 90916-03105 |
1JZGE..JZX100,105 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-46040 |
1JZGE..JZX100 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-46100 |
1JZGE..JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-46050 |
1JZGE..JZX100 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-46020 |
1JZGE..JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 22288 - CLIP, THROTTLE VALVE MOTOR | ||||
| 22288-46290 |
1JZGE..JZX100 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-46080 |
1JZGE..JZX100,105 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1JZ#,2JZGE..JZX10# |
6 | ||
| 90301-07001 |
1JZ#,2JZGE..JZX10# |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46021 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14008 |
1JZGE,2JZGE..JZX10# NO.1 |
1 | ||
| 90430-12026 |
1JZ#,2JZGE..JZX10# NO.2 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14008 |
1JZGE,2JZGE..JZX10# NO.1 |
1 | ||
| 90430-12026 |
1JZ#,2JZGE..JZX10# NO.2 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-46010 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-10038 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
1JZGE,2JZGE..JZX10# |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
1JZGE,2JZGE..JZX10# |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-46010 |
1JZGE,2JZGE..JZX10# |
6 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1JZ#,2JZGE..JZX10# |
2 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01410 |
1JZGE,2JZGE..JZX100,101 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-46070 |
1JZGE..JZX100,105 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-46070 |
1JZGE..JZX100,105 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-46040 |
1JZGE,2JZGE..JZX10# |
1 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12029 |
1JZ#,2JZGE..JZX10# |
1 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-46030 |
1JZ#,2JZGE..JZX100,101 |
1 | ||
| Common parts | ||||
| 22226-46360 | ||||
| 90090-80408 | ||||
| 90090-80514 | ||||
| 90091-20510 | ||||
| 90105-10416 | ||||
| 90119-06390 | ||||
| 90119-06896 | ||||
| 90119-08893 | ||||
| 90119-08A60 | ||||
| 90126-08016 | ||||
| 90179-08153 | ||||
| 90301-07024 | ||||
| 90561-08009 | ||||
| 91511-J0840 | ||||
| 91511-K0845 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8404 | ||||
| 8411 | ||||
