JZX100-CEPQF (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZGE,2JZGE

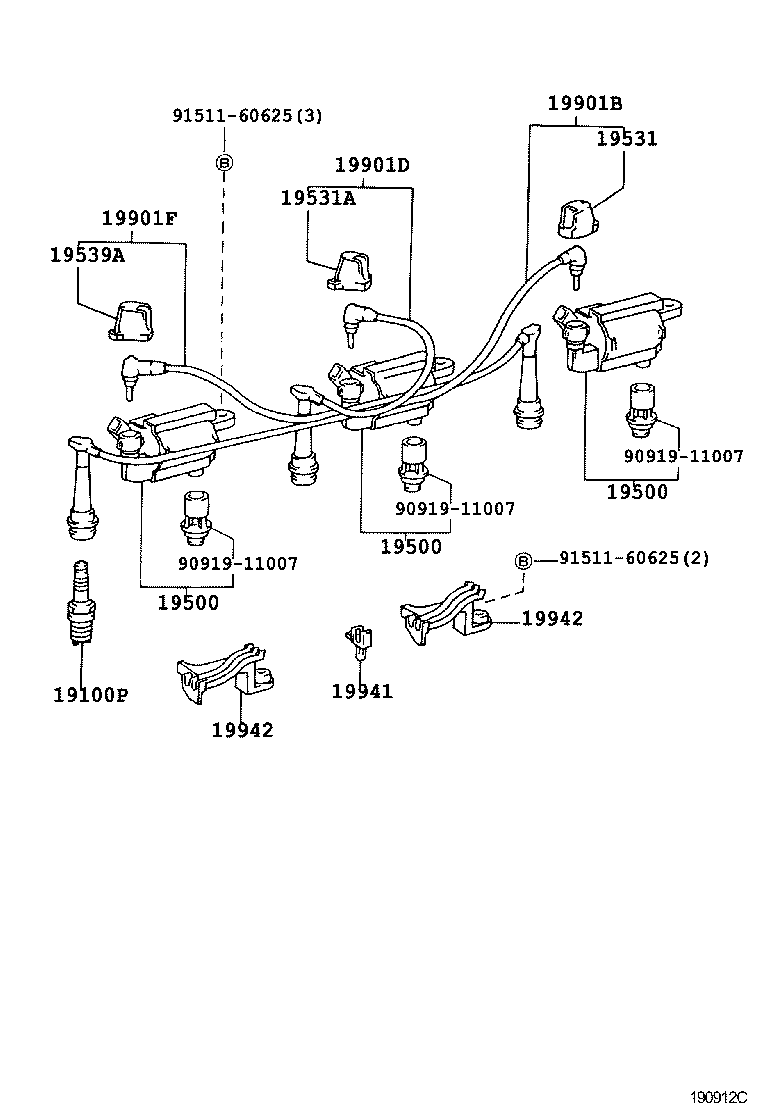

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19531 19531A 19539A 19901B 19901D 19901F 19941 19942 19942 9091911007 9091911007 9091911007 9151160625 9151160625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01197

1JZGE,2JZGE..JZX10#

BKR5EKPB11

 6
90919-01196

1JZGE,2JZGE..JZX10#

PK16TR11

 6
90919-01219

1JZGE,2JZGE..JZX10#

SK16R−P11

 6
19500 - COIL ASSY, IGNITION
90919-02216

1JZ#,2JZGE..JZX10#

 3
19500 - COIL ASSY, IGNITION
90919-02216

1JZ#,2JZGE..JZX10#

 3
19500 - COIL ASSY, IGNITION
90919-02216

1JZ#,2JZGE..JZX10#

 3
19531 - HOLDER, RESISTIVE CORD, NO.1
19532-46010

1JZ#,2JZGE..JZX10#

 1
19531A - HOLDER, RESISTIVE CODE, NO.3
19539-50010

1JZ#,2JZGE..JZX10#

 1
19539A - HOLDER, RESISTIVE CODE, NO.5
19539-70010

1JZ#,2JZGE..JZX10#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15456

1JZGE,2JZGE..JZX10#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15317

1JZGE,2JZGE..JZX10#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15457

1JZGE,2JZGE..JZX10#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01361

1JZGE,2JZGE..JZX10#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01360

1JZGE,2JZGE..JZX10#

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01360

1JZGE,2JZGE..JZX10#

 2
Common parts
90919-11007
91511-60625
